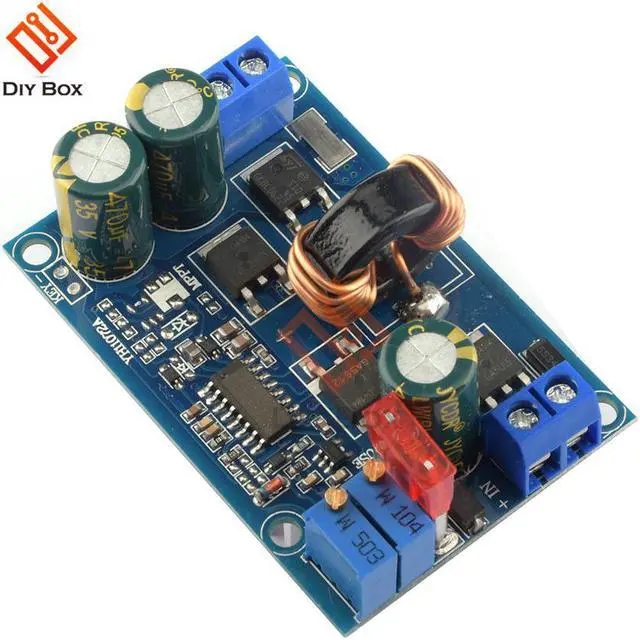

    DC-DC 60W Automatic Buck-Boost Constant Voltage And Constant Current Module Stabilized Power Supply for Home Appliance Accessory

    • DC-DC 60W Automatic Buck-Boost Constant Voltage And Constant Current Module Stabilized Power Supply for Home Appliance Accessory
    +
    +
    Overview
    Specs
    Reviews
    Origin:CN(Origin)
    Model Number:DC-DC 60W automatic buck-boost constant voltage and constant current

    Product selling point:
    1: Synchronous rectification, automatic buck-boost, constant voltage and constant current
    2: Conversion efficiency: up to 96%
    3: Over temperature protection: yes
    4: Short circuit protection: Yes (input 10A fuse) double short circuit protection, safer to use.
    5: Over current protection: yes
    60W automatic buck-boost constant voltage and constant current module, 5-32V wide input voltage, 1.2-20V adjustable wide output voltage, 0.2-5A output current adjustable. Can be used for vehicle, solar energy, wind energy, voltage regulation and charging, LED drive.

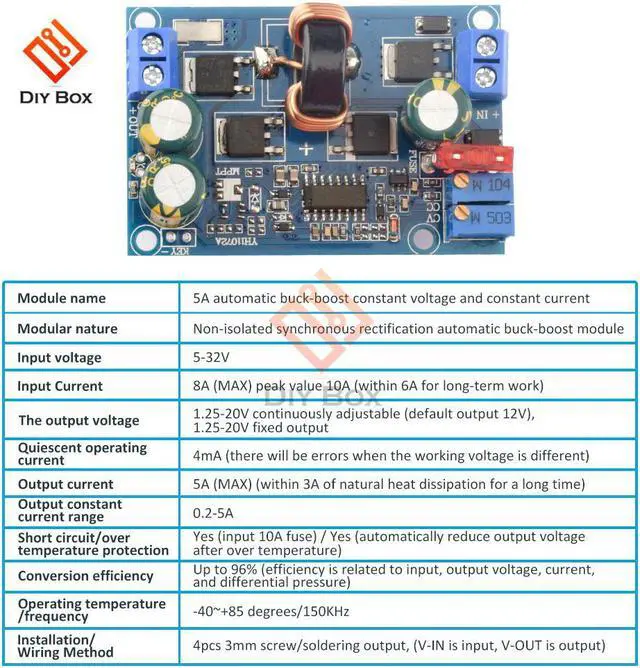

    Parameter:
    Name: 5A automatic buck-boost constant voltage and constant current
    Properties: Non-isolated synchronous rectification automatic buck-boost module
    Input voltage: 5-32V
    Input current: 8A (MAX) peak value 10A (within 6A for long-term work)
    Static working current: 4mA (there will be errors when the working voltage is different)
    Output voltage: 1.25-20V continuously adjustable (default output is 12V, if you need other voltages, please explain to the shopkeeper.)
    1.25-20V fixed output (for bulk customers)
    Default shipment is adjustable output
    Output current: 5A (MAX) (within 3A of natural heat dissipation for a long time) If a larger output current is required, two modules can be used in parallel. For example, if the output is 6A, two modules can be connected in parallel, and the current of each module can be adjusted to 3.5 A is enough.
    Output constant current range: 0.2-5A
    Working temperature: -40~+85 degrees
    Working frequency: 150KHz
    Conversion efficiency: up to 96% (efficiency is related to input, output voltage, current, and voltage difference)
    Overcurrent Protection: Yes
    Short circuit protection: Yes (input 10A fuse) double short circuit protection, safer to use.
    Over-temperature protection: yes (automatically reduce the output voltage after over-temperature)
    Input reverse connection protection: no, (if necessary, please connect a diode in series with the input)
    Output anti-reverse irrigation: Yes, no need to add anti-reverse diode when charging.
    Installation method: 4pcs 3mm screw

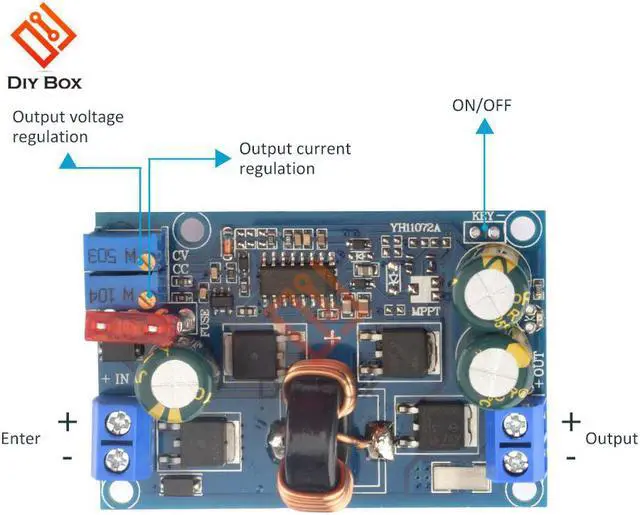

    Wiring method: welding output, (V-IN is input, V-OUT is output)

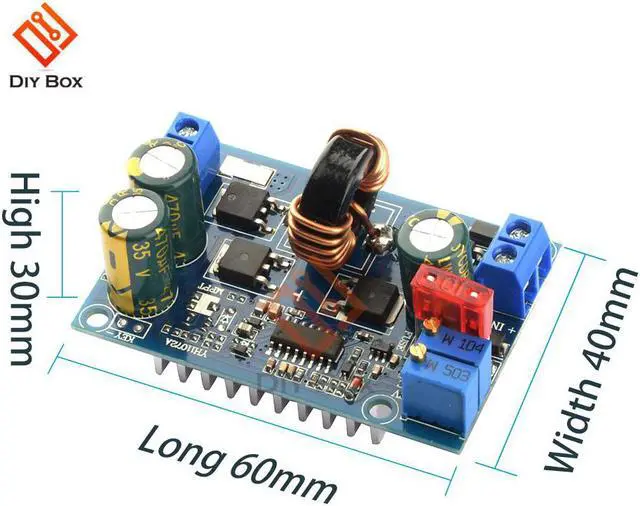

    Module size: length 60mm width 40mm height 30mm
    Application range:
    This module can be used in the fields where the input voltage floats relatively large and the output requirements are relatively stable. Such as:
    1. DIY a regulated power supply, the input is 12V, and the output can be adjusted from 1.2-20V.
    2. Power supply for your electronic equipment, you can set the output value according to your system voltage.
    3. As a vehicle regulated power supply, it can supply power for your notebook computer, PDA or various digital products.
    4. DIY a high-power notebook mobile power supply: equipped with a large-capacity 12V lithium pack, so that your notebook can be illuminated wherever you go
    5. Solar panel voltage stabilization.
    6. Charge batteries, lithium batteries, etc.
    7. Drive high-power LED lights.
    Package list
    :
    1*Automatic buck-boost constant voltage and constant current module
