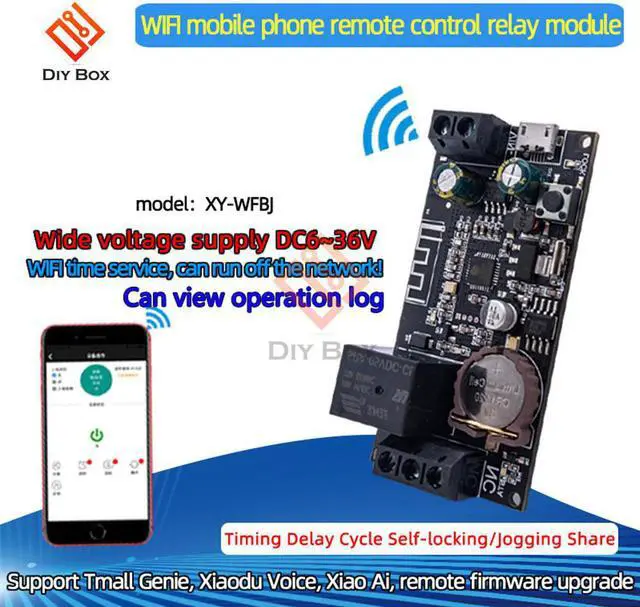

WFBJ WIFI Mobile Phone Remote Control Relay Module DC6V-36V With Button

Certification:NONE
Origin:CN(Origin)
State of Assembly:Almost Ready
Model Number:WFBJ WIFI mobile phone remote control relay module DC6V-36V with butto
Compatibility:Others
Camera Equipped:No

Features:
1: Widely used
2: Wide voltage supply dc6 ~ 36V
3: WiFi time service can be disconnected!
4: Simple operation
5: Support tmall voice and small voice. Xiaoai classmate, supports remote firmware upgrade

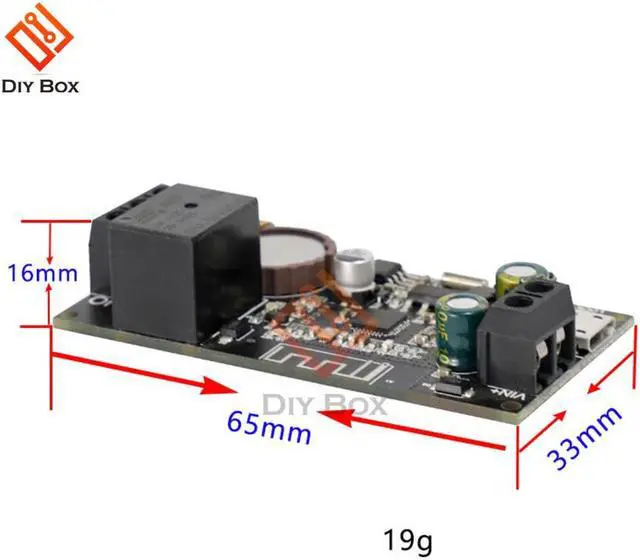

Specifications:
1) Power supply voltage: DC6.0V ~ 30V, supporting micro USB 5.0V power supply;
2) Networking mode: 2.4G WiFi
3) Operating temperature: - 20 ~ 60 ° C;
4) Output type: 10A relay output (relay is equivalent to switch, only plays the role of switch, and cannot output voltage externally)

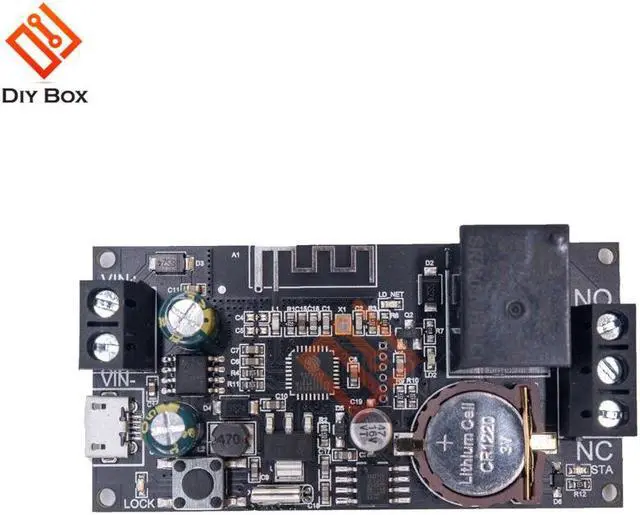

I

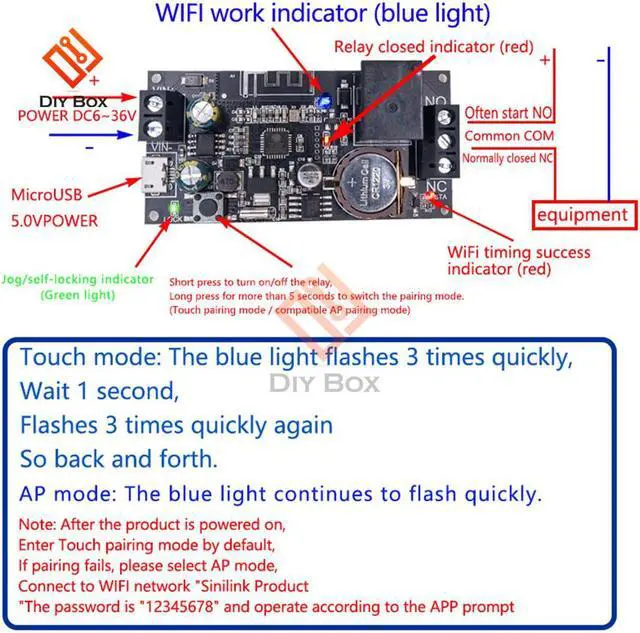

ntroduction to indicator lights and keys
The product has four indicators: network indicator (blue), inching indicator (green), timing indicator (red) and relay indicator (red); The network indicator, jog indicator and time service indicator can be turned off through the app;
2.1 network indicator status (blue)
Blue indicator: network status indicator
1. Router not connected: on for 1s, off for 0.1s, and so on;
2. Link the router but not connected to the network: slow flash once, fast flash once, and so on;
3. Touch pairing mode: flash continuously and quickly for 4 times, and then wait for 1s to reciprocate;
4. AP pairing mode: the red light flashes continuously;
5. Successful Networking: the red indicator is always on;
2.2 jog indicator (green)
When the inching function is turned on, the green indicator light is on; When the inching function is turned off, the green indicator light is turned off;
2.3 timing indicator (red)
When the time synchronization between the product and the Internet is successful, the red indicator lights up; When the product fails to synchronize with the Internet, the red indicator goes out;
2.4 relay indicator (red)
When the relay is closed, the red indicator light is on; When the relay is disconnected, the red indicator light goes out;
2.5 key functions
Short press: used to switch the working state of the relay;
Long press for 5 seconds: let the product enter the pairing state
Product networking
1 how to enter pairing status
First of all, make sure that the product enters the pairing state. Refer to the detailed figure
2. in the network indicator chapter, judge whether the product is in the pairing state through the flashing state of the blue indicator; If the product is not in the pairing state, you can press and hold the key for more than 5 seconds to make the product enter the pairing state
3. touch pairing tutorial
1. Let the product enter the touch pairing state (the blue indicator flashes continuously for 4 times, with an interval of 1 second, and so on)
See the details page and instructions for specific operations
Package Include:
1 * controller module
