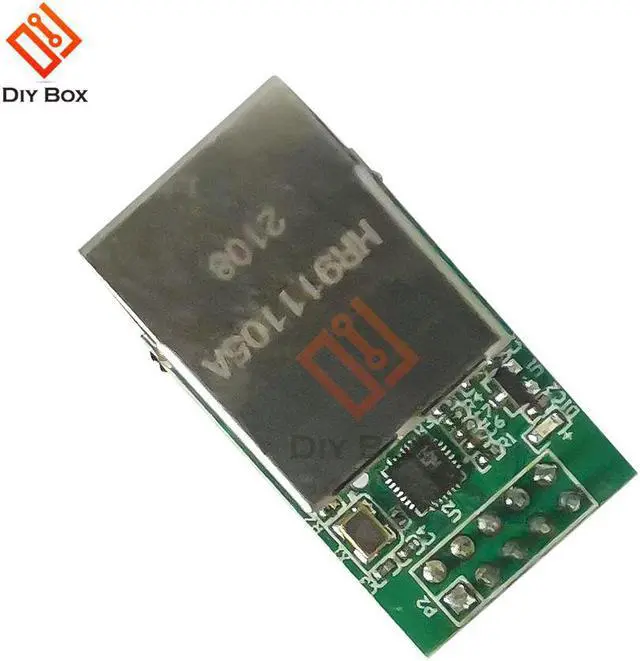

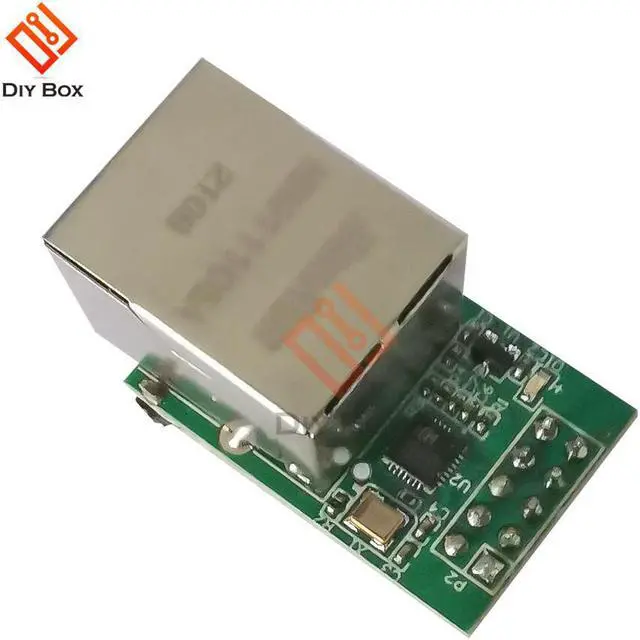

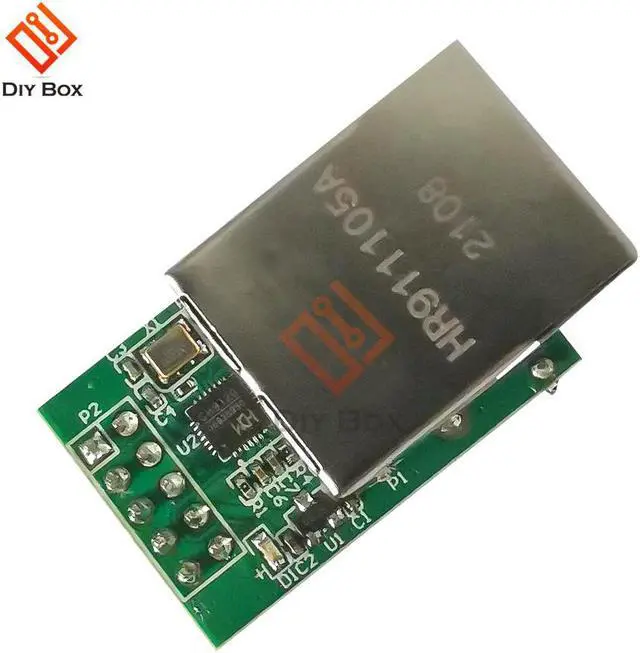

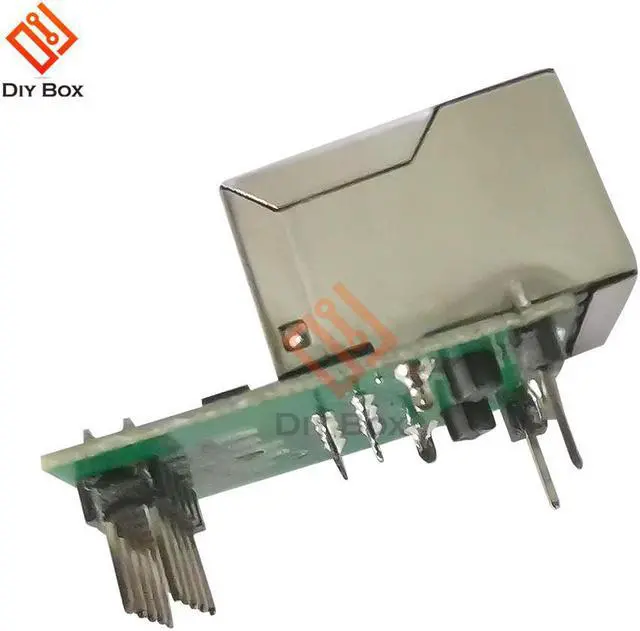

Ethernet Serial Port Transparent Transmission Module TTL to 10M Network RJ45 CH9120 Serial Server

Certification:NONE
Origin:CN(Origin)
Connector A:.
External Power Source:Yes
Connector B:TTL
Gender:Combined Type
Amplifier:No
Weight:0.012kg
Size:3.00cm*2.00cm*2.00cm
Bundle:Bundle 1
Model Number:network to TTL Serial port module
Type:.
Package:Yes

Features:
1. Support two-way transparent transmission of serial data and network data
2. Support TCP SERVER, TCP CLIENT, UDP CLIENT and UDP SERVER working modes;
3. Support 10M, full-duplex/half-duplex adaptive Ethernet interface, compatible with 802.3 protocol;
4. Support MDI/MDIX line automatic conversion;
5. Support DHCP to automatically obtain IP address;
6. Support software and serial port mode to configure chip parameters;
7. Support KEEPALIVE mechanism;
8. The serial port baud rate supports 300BPS-921600BPS.
The main parameters:
Storage temperature: -55-+125
Working temperature: -40-+85
Working current: 12mA
Voltage supply: 3.3V
TTL level: 3.3V
Number of clients connected to TCP SERVER: 1
Chip package: QFN28 (body 4*4mm)
Ethernet (PHY): 10M
Number of serial ports: 1
Configuration method: serial port AT, CH9120 configuration software
Function:
WCH-10M network TTL serial port transparent transmission module (NET-TTL-9120), through the network to TTL serial port, can realize the two-way transparent transmission of network data packets and serial data, with TCP CLIENT, TCPSERVER, UDP CLIENT, UDP SERVER 4 kinds of work Mode, the serial port baud rate can support up to 921600BPS, which can be easily configured through the host computer software or the serial port command, which is convenient and fast.
Package Included:
1* Network to TTL serial port module
