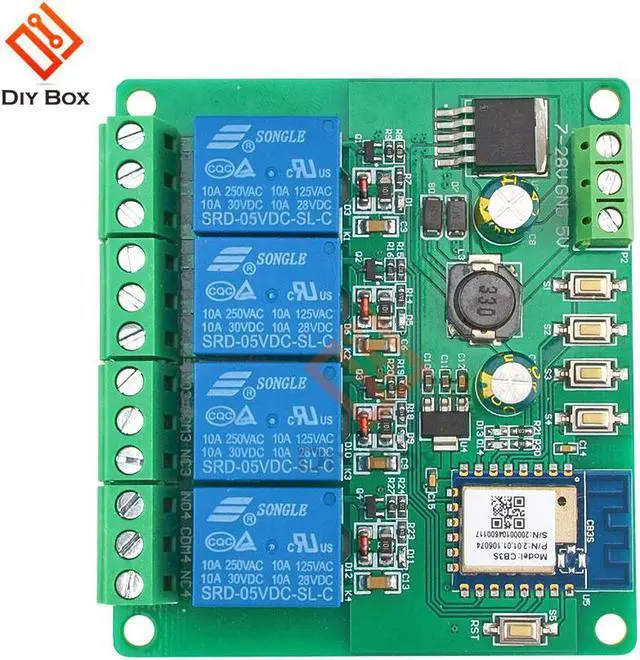

Wifi Smart Quad WiFi Remote Relay Module 4CH DC5V/7-28V 3200W 10A Relays Smart Switch With Tuya Smart Life For Android/IOS

Certification:NONE
Origin:CN(Origin)
State of Assembly:Almost Ready
Model Number:Tuya remote WiFi control four-way relay module
Compatibility:All Compatible
Camera Equipped:No

Tuya Quad WiFi Remote Relay Module Mobile APP Control Smart Switch
Overview :
The four-way remote smart WiFi switch is equipped with a well-known domestic manufacturer's WiFi module, embedded with a smart control program for the Internet of Things, only a router with Internet access and an Android/IOS mobile phone can realize remote control of household appliances anytime and anywhere, and support Local keys can be used to upgrade and modify existing household appliances, making them smart in seconds!
Features :
1,The onboard smart IoT WiFi module is simple to configure and powerful;
2,Support "Tuya" mobile phone APP through WIFI and 4G/3G network remote control;
3,When using mobile phone APP control, it supports multiple control methods such as timing, delay, device sharing, smart scenes, etc.;
4, Support real-time feedback of switch status when both the device and APP are online;
5,Support two modes of self-locking and timing (including countdown, cycle timing, random timing, and jog switch),
6,Onboard 4 5V, 10A/250V AC 10A/30V DC relays, which can be activated continuously for 100,000 times, have diode effusion protection, and have a short response time;
7,Power supply voltage: DC5V/7-28V, output voltage: AC 90-250V;
8,Number of channels: 4 channels, the maximum overcurrent per channel: 10A, the maximum total power of 4 channels: 3200W;
9,Onboard WIFI status indicator, relay switch indicator;
10,The PCB board and materials used in the smart switch adopt lead-technology, with high-quality materials, environmental protection and safety.

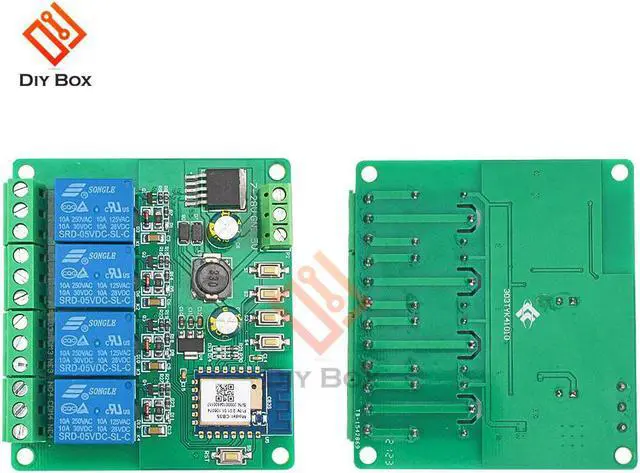

Hardware introduction and description :
Interface description:

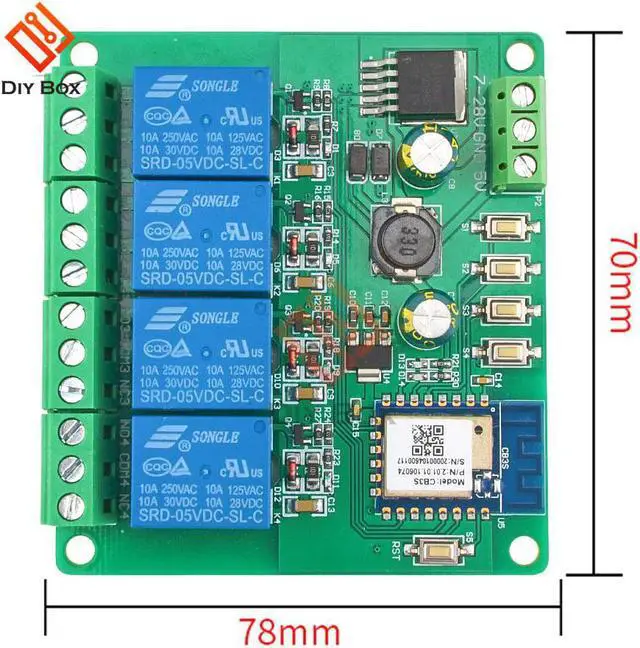

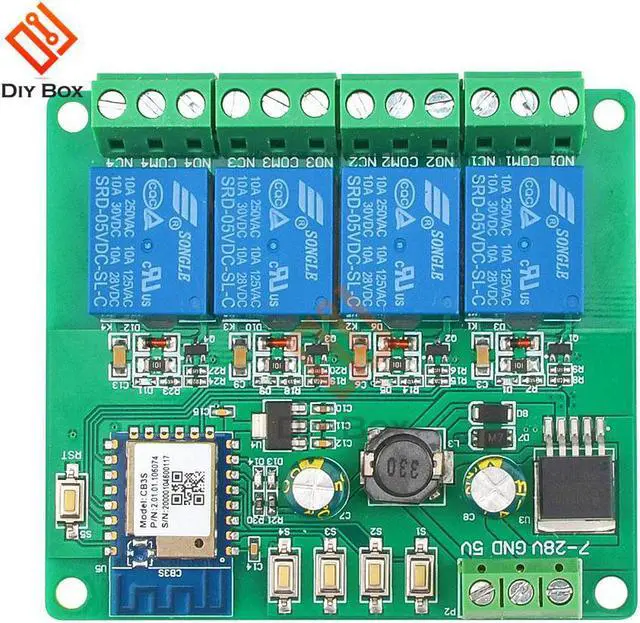

1,7-28V/GND/5V: DC 7-28V power supply or DC 5V power supply;
2,Local buttons: S1, S2, S3, S4 correspond to control channel 1, channel 2, channel 3, and channel 4 respectively;
3,WIFI status indicator (blue light): flashing means waiting for pairing,
4,D1, D5, D9, D11 are the four relay output status indicators;
5,Relay output terminal:
NO: always start;
COM: public end;
NC: normally closed end;
Wiring guidelines, control lamps:
Guidelines for use:
The input terminal is connected to the working voltage
1, Mobile APP control:
(1) APP download and installation: search for "Tuya Smart" APP in the Android/IOS application mall and install it
(2)Open the APP, register an EasyTuya account and log in:
(3)Device registration: Press and hold any one of the S1/S2/S3/S4 keys for more than 5S. When the WiFi status indicator (D13) flashes, it means that the device is waiting for pairing to be added. At this time, the phone is connected to the WiFi router (2.4GWiFi). ) And turn on the Bluetooth, click the "+" button in the APP interface, select the switch (Bluetooth), use the APP to complete the addition, the indicator D13 changes from flashing to off, the specific steps are as follows:
Note: There are two other modes for network configuration. Bluetooth configuration is used here because registration will not fail.
(4) APP control device switch: After the addition is completed, the mobile phone can remotely control the device through WIFI/4G/3G network (if the WiFi is disconnected, you can turn on the Bluetooth and use the Bluetooth control within ten meters of the device). For example, use APP to turn on the first switch, channel 1 is turned on, channel 1 indicator D1 is on, and the devices connected to channel 1 work
