Certification:NONE
Accessory Type:Charger Accessories
Origin:CN(Origin)
Model Number:Bt900w Charger Power Supply Module
Features:
1: High power
2: With voltage adjustment and current adjustment potentiometers, the output voltage and current can be adjusted at any time
3: Ultra-low input and output pressure difference
4: Using 1mm double wire wound inductors, high-quality filter capacitors, boost output power quality is better
5: With input under-voltage protection function, especially suitable for batteries and solar panels, to prevent over-discharge and solar panel voltage is too low to start the module
Introduction:
BT900W boost power supply, the input terminal is divided into two voltage input ranges, the short circuit cap input high voltage in the low voltage range will damage the circuit, the short circuit cap input low voltage at the high voltage will not work, please operate with caution.

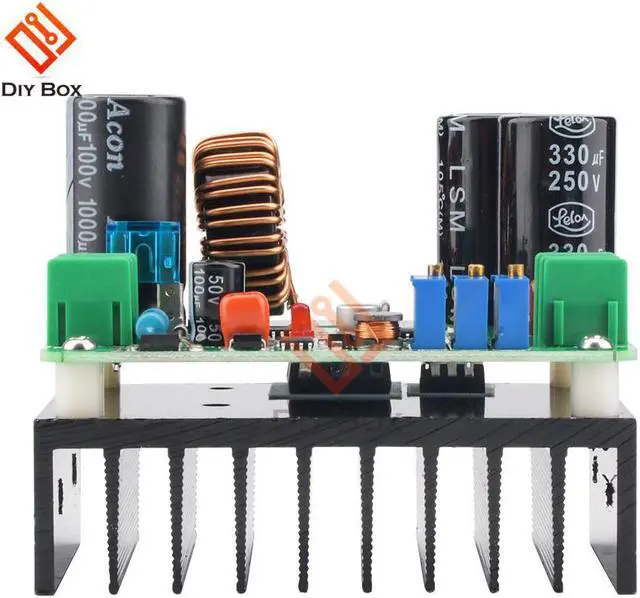

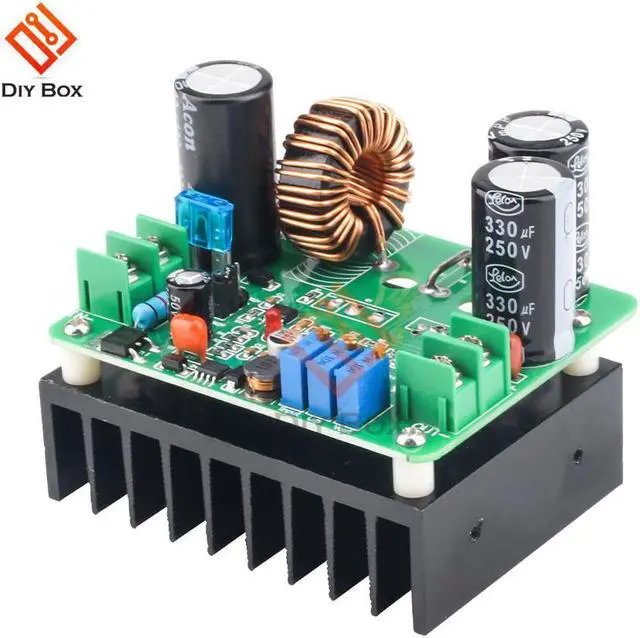

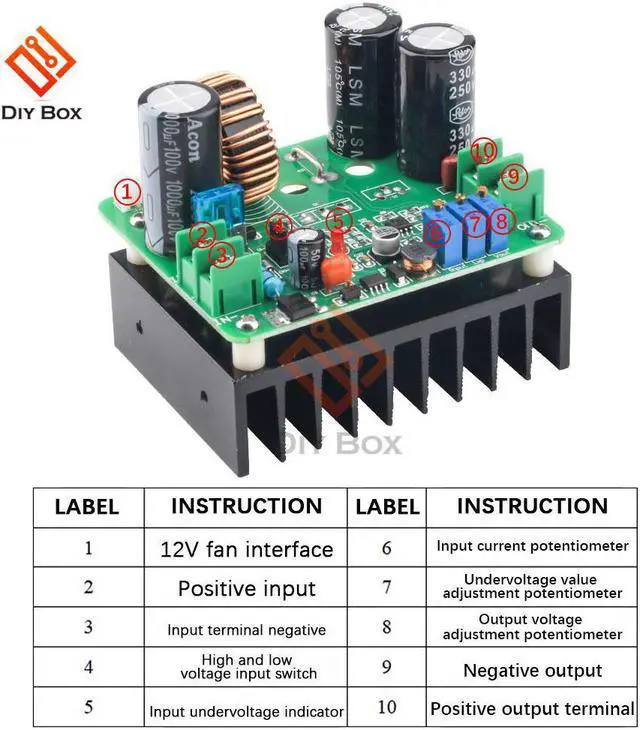

BT900W high-power DC-DC boost module is a type of boost module with wide voltage input and adjustable output voltage and current. The product uses sufficient materials and adopts a customized radiator, an integrated design of radiator and booster board. Using 1mm double wire wound inductors, high-quality filter capacitors, boost output power quality is better. On-board power supply indicator light, with input under-voltage adjustment, output voltage adjustment, input current adjustment potentiometers, which can adjust the output voltage and current at any time. The input and output use 8500 terminal blocks, and the current capacity is strong to ensure long-term reliable operation.
Instrument characteristics:
1. Wide input and output voltage range. Input voltage 8V~30V; 30~60V, output voltage 12V~130V;
2. Ultra-low input and output pressure difference;
3. Using 1mm double wire wound inductors, high-quality filter capacitors, boost output power supply quality is better;
4. With voltage adjustment and current adjustment potentiometers, the output voltage and current can be adjusted at any time.
5. With input under-voltage protection function, it is especially suitable for batteries and solar panels to prevent over-discharge and solar panel voltage from being too low to start the module.
Parameter:
Input voltage: 8V-30V: 30V-60V
Input current: 15A (MAX)
Output voltage: 12V~130V continuously adjustable
Output current: 15A (MAX)
Output power: 900W (MAX)
Output ripple:
Conversion efficiency: about 85%
Voltage and current adjustment method: potentiometer
Short circuit protection: 15A fuse

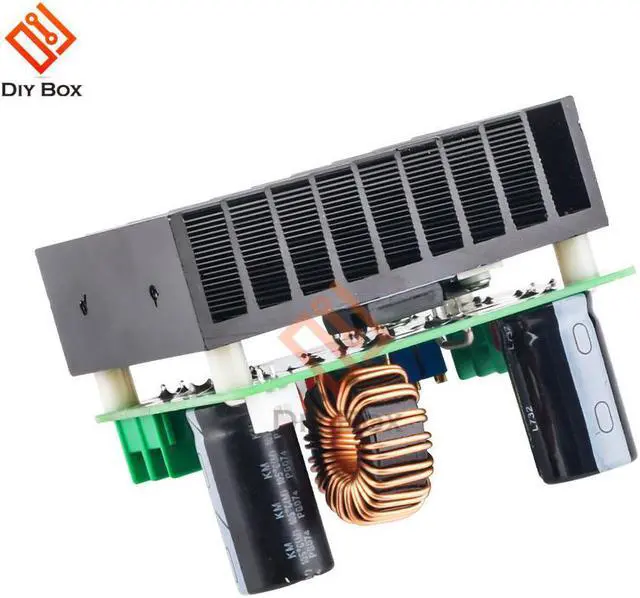

Cooling method: radiator, natural air cooling
Wiring mode: 8500 terminal block
Product size (L×W×H): 85.0×69.5×7mm
Net weight: 244.7g
Package Included:
1* BT900W power module
