ZK-MT21 Bluetooth 5.0 Subwoofer Amplifier Board 50WX2+100W 2.1 Channel Power Audio Stereo Amplifier Tone Board Bass AMP AUX
- ZK-MT21 Bluetooth 5.0 Subwoofer Amplifier Board 50WX2+100W 2.1 Channel Power Audio Stereo Amplifier Tone Board Bass AMP AUX
+
+
Overview
Specs
Reviews
Certification:NONE
Origin:CN(Origin)
Maximum Power Per Channel:50W
Model Number:MT21 2.1 channel audio amplifier module with Tone
Package:Yes
Channels:3 (2.1)
Product Name : 2.1 channel audio amplifier module with Tone
Product Model : MT21
Bluetooth Version : 5.0(no shielding,15 meters)
Input Sensitivity: 500mV
Audio Input : AUX+ Bluetooth
Channel : 2.1
Chip Solution : Domestic power amnlifior chip
Power Range: DC12~24 V / 5A above (vo not connect to 24V pack)
Adapter Speaker : 20~100 w,4~8
Output Power : Max 50W @ R&L channel
Max100W @ subwoofer
Protection Mechanism : Anti reverse connection,Overheat,Over-
current,Short circuit

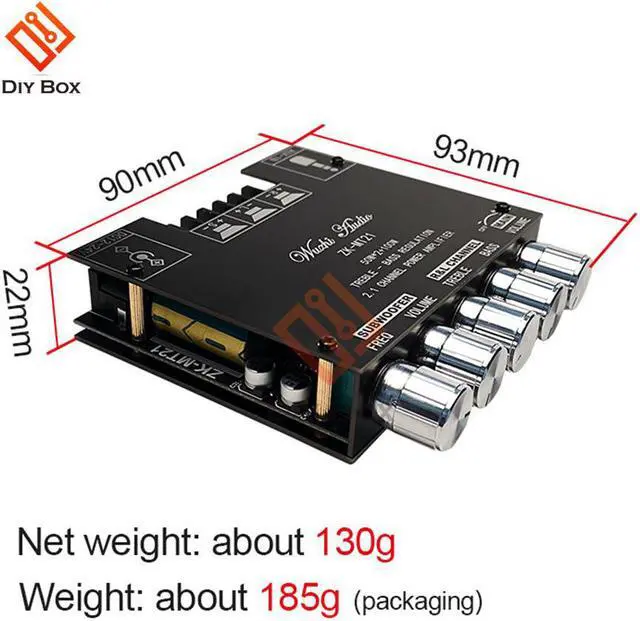

Product Dimensions : 93mm*90mm*22mm

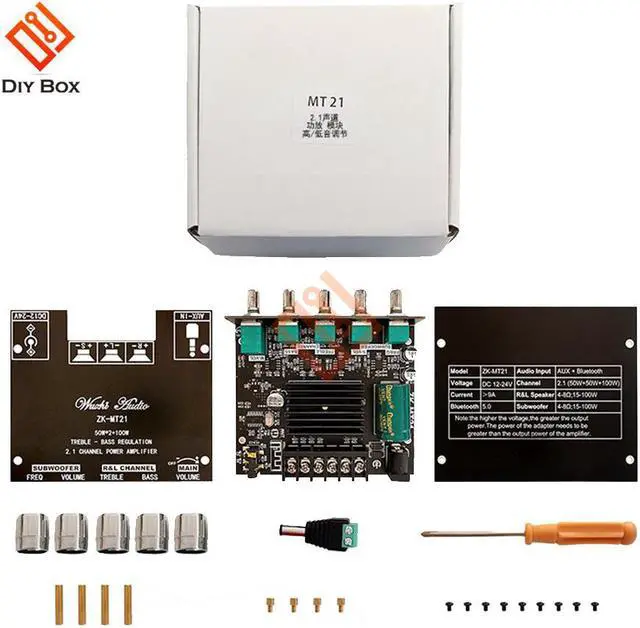

Package Weight : about 185g ( packaging)
PS: In the audio input is enough, the supply voltage/current is enough, there will beenough output power! The higher the supply voltage, the greater the output pow-er.The smaller the impedance of the speaker, the greater the output power! Please make sure that the power of the adaptive power supply is greater than the actual working power of the power amplifier!!
Origin:CN(Origin)
Maximum Power Per Channel:50W
Model Number:MT21 2.1 channel audio amplifier module with Tone
Package:Yes
Channels:3 (2.1)
Product Name : 2.1 channel audio amplifier module with Tone
Product Model : MT21
Bluetooth Version : 5.0(no shielding,15 meters)
Input Sensitivity: 500mV
Audio Input : AUX+ Bluetooth
Channel : 2.1
Chip Solution : Domestic power amnlifior chip
Power Range: DC12~24 V / 5A above (vo not connect to 24V pack)
Adapter Speaker : 20~100 w,4~8
Output Power : Max 50W @ R&L channel
Max100W @ subwoofer
Protection Mechanism : Anti reverse connection,Overheat,Over-
current,Short circuit
Product Dimensions : 93mm*90mm*22mm
Package Weight : about 185g ( packaging)
PS: In the audio input is enough, the supply voltage/current is enough, there will beenough output power! The higher the supply voltage, the greater the output pow-er.The smaller the impedance of the speaker, the greater the output power! Please make sure that the power of the adaptive power supply is greater than the actual working power of the power amplifier!!
