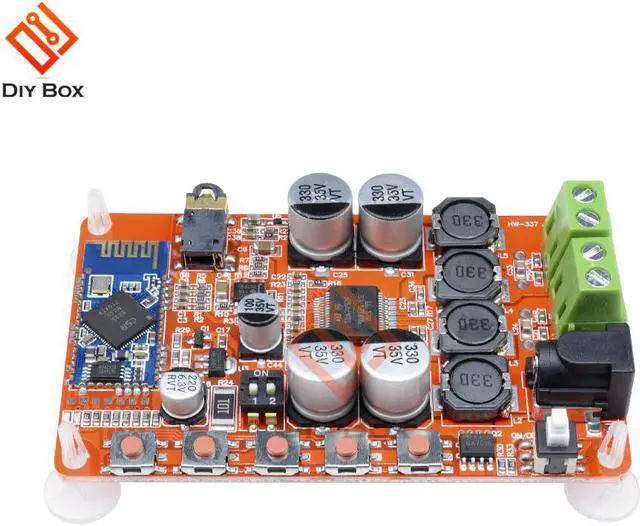

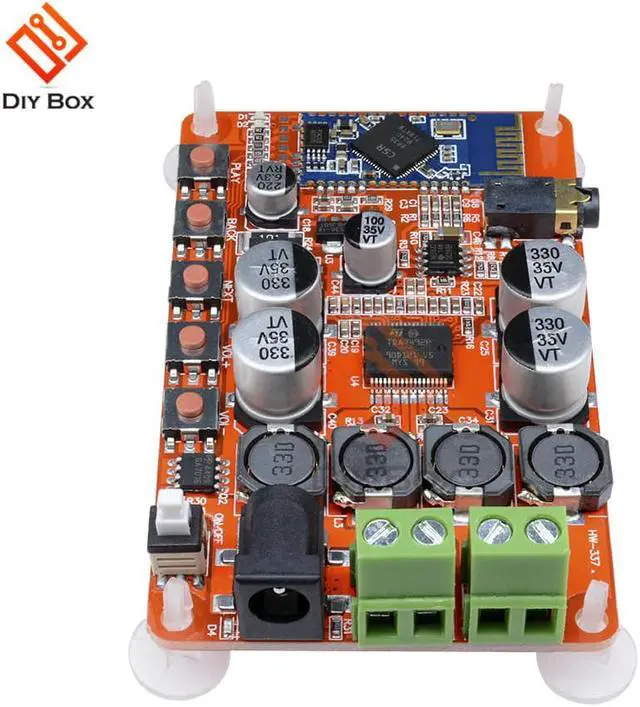

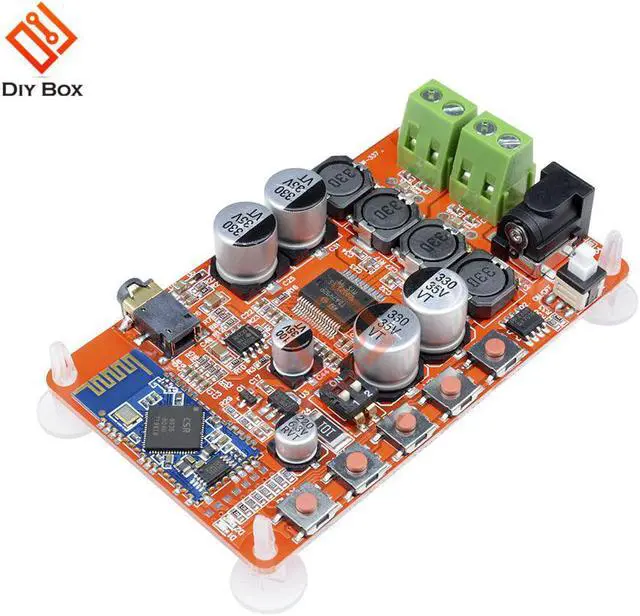

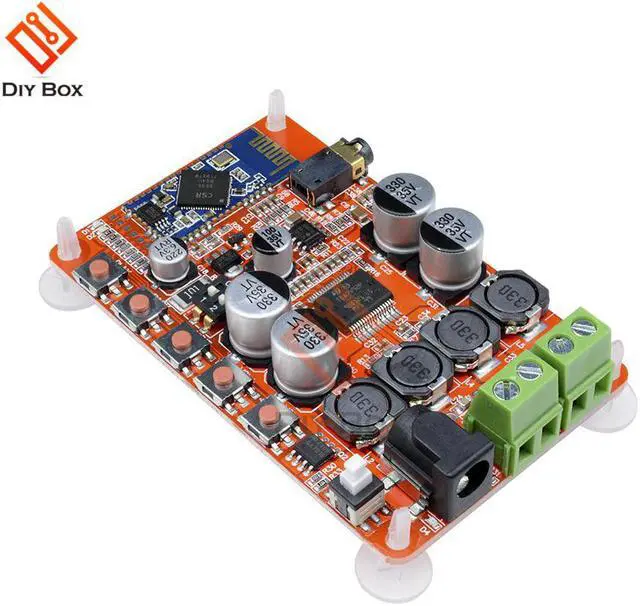

TDA7492P Wireless Bluetooth 4.0 power Amplifier Board module HIFI Stereo 25W*2 Audio Speaker AMP with AUX Port DC 8-25V diy kit

Certification:NONE
Origin:CN(Origin)
Compatible Audio & Video Equipment Style:Speakers
Model Number:TDA7492P audio amplifier board
Bundle:Bundle 1
Dimensions (WxHxD)):3.23 * 1.97inch
Weight:38g
Package:Yes

TDA7492P Wireless Bluetooth 4.0 power Amplifier Board module HIFI Stereo 25W*2 Audio Speaker AMP with AUX Port DC 8-25V diy kit
Feature:
Sound quality is very good with this module.
Equipped with AUX interface.
Use CSR8635 Bluetooth chip, Bluetooth V4.0, high software compatibility.
After power-on, it automatically enters the pairing mode and searches for the name: Sanwu Audio.
With the 5-button adjustment, it is convenient and easy to operate.
Applicable speaker impedance: 4/6/8/16 ohms (8 ohms is the best).
Product specifications:
Power supply voltage: DC 8-25V
Power connector: 2.1 DC socket
Audio input: Bluetooth V4.0 receiver
Audio output: terminal
Output power: add pre-5532 output pin
Applicable speaker impedance: 4/6/8/16 ohms
Number of channels: two-channel stereo
PCB board specifications: 82 * 50 mm / 3.23 * 1.97 in
Weight: 37 g / 1.32 ounces
NOTE:
If you use external audio, you need to connect a 3.5mm audio cable;
If you use Bluetooth directly, the power waits for 3-10s until the LED blue and red flash alternately, then you can use your device to find the Bluetooth module and connect it. You can use it directly.
Packing list:
1 *Bluetooth 4.0 audio power amplifier board
