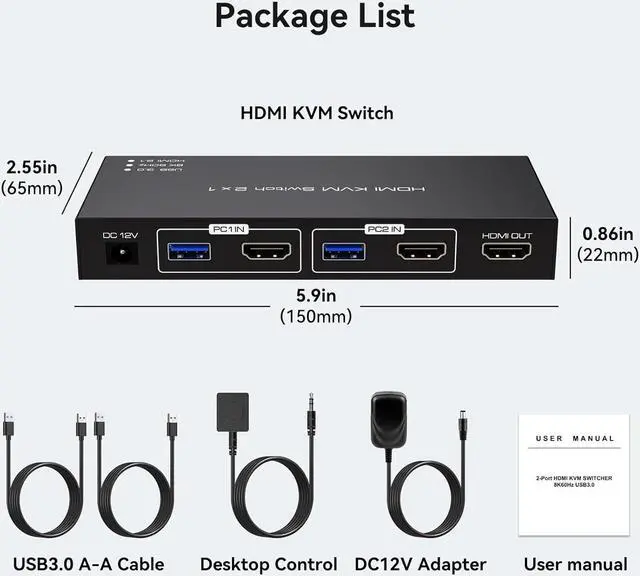

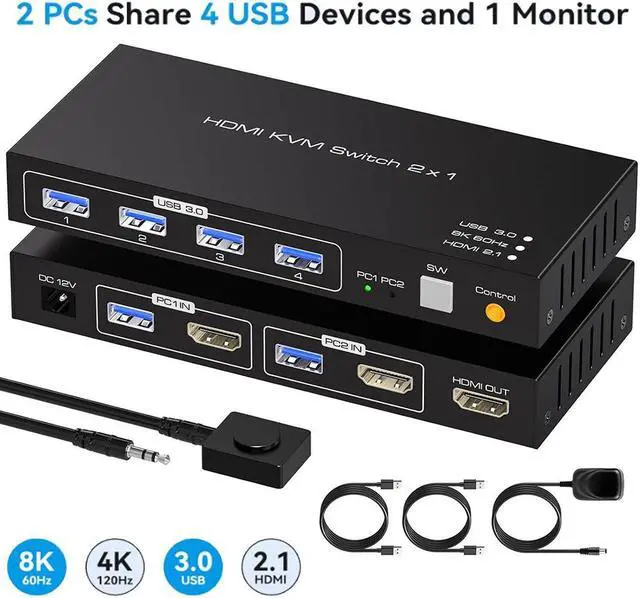

8K HDMI KVM switch 2 in 1 out for 2 computers sharing 1 monitor and keyboard and mouse

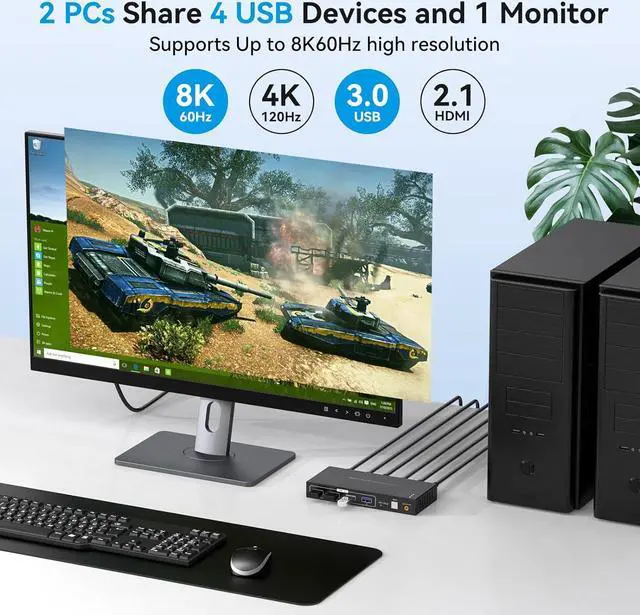

- Switch between 2 computers using only 1 set of keyboard and mouse and 1 monitor.
- Supports up to 8K@60Hz 4K@120Hz resolution transmission, enjoy ultra-high-definition picture.
- Keyboard, mouse, USB flash drive, printer, scanner, etc. can be connected to the KVM via 4 usb3.0 ports.
- Supports switching of KVM input sources by front panel keys and external wired controllers.
- The keyboard and mouse will control the corresponding computer in time after kvm switches channels, and supports wireless keyboard and mouse.
2 computers switch to use 1 monitor and keyboard and mouse, office games without delay each other
- HDMI KVM switch 2 pc 1 monitor, save time and space, make the desktop more tidy, office more efficient.
- External wired controller inside the accessory makes switching kvm more convenient and hassle-free.

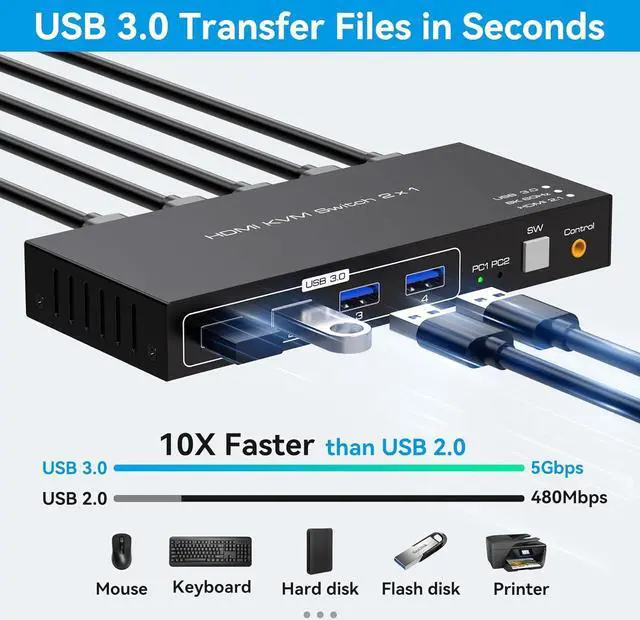

The usb 3.0 kvm switcher includes 4 usb3.0 ports for more efficient transmission.
- The USB 3.0 kvm switch includes 4 USB 3.0 ports with a transfer rate of up to 5Gbps, which is faster and more efficient than the USB 3.0 ports.

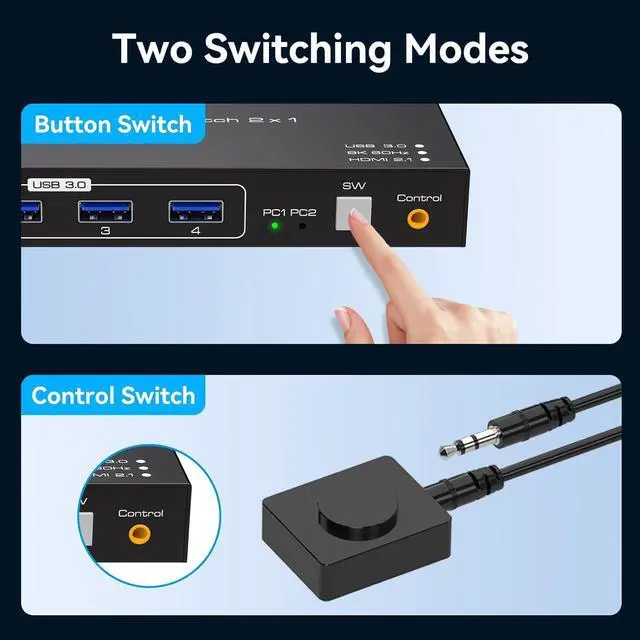

Two switching methods
Supports two switching modes: panel key and wired controller, one-key switching is convenient and fast.
LED signal indicator
When switching between pc1 and pc2, the LED signal indicator jumps along with them.
Independent power supply is more stable
Configured with a DC12V power adapter, please remember to supply power to the kvm switcher to avoid insufficient power supply leads to unavailability.

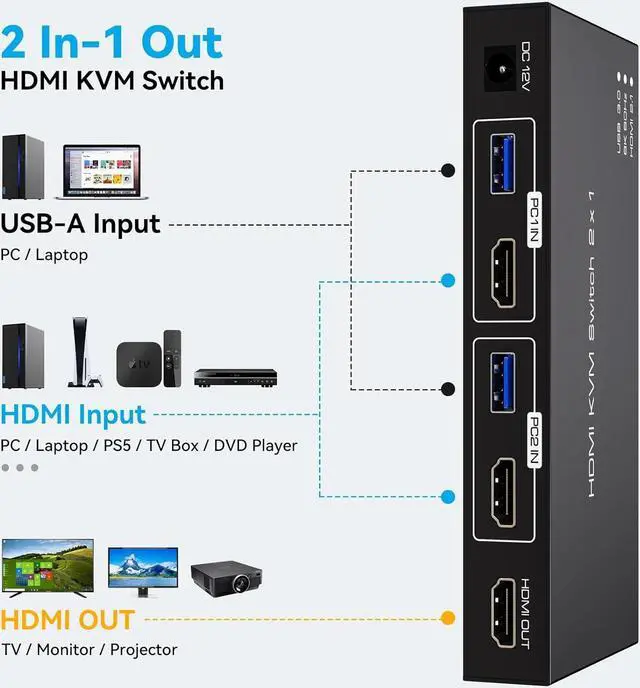

How to connect the KVM Switch?
Instructions for use of the connection
- Step 1: Connect the HDMI cable from pc1 to the pc1 in-HDMI connector of the KVM switch.
- Step 2: Connect the pc1 USB cable to the pc1 in-USB connector of the KVM switch.
- Step 3: Connect the HDMI cable from pc2 to the pc2 in-HDMI connector of the KVM switch.
- Step 4: Connect the pc2 USB cable to the pc2 in-USB connector of the KVM switch.
- Step 5: Connect the monitor's HDMI cable to the KVM switch's HDMI out port.
- Step 6: USB devices such as keyboards, mice, USB flash drives, printers, scanners, etc. can be connected to the four USB 3.0 ports of the KVM switch.
- Step 7: Connecting a Wired Controller to the KVM Switch Front Panel Contol Interface.
- Step 8: Switching between pc1 and pc2 is possible using the panel buttons and the wired controller.
The convenience of a kvm switch
- With a KVM switcher the desktop is neater, more space is available and the office is more efficient.

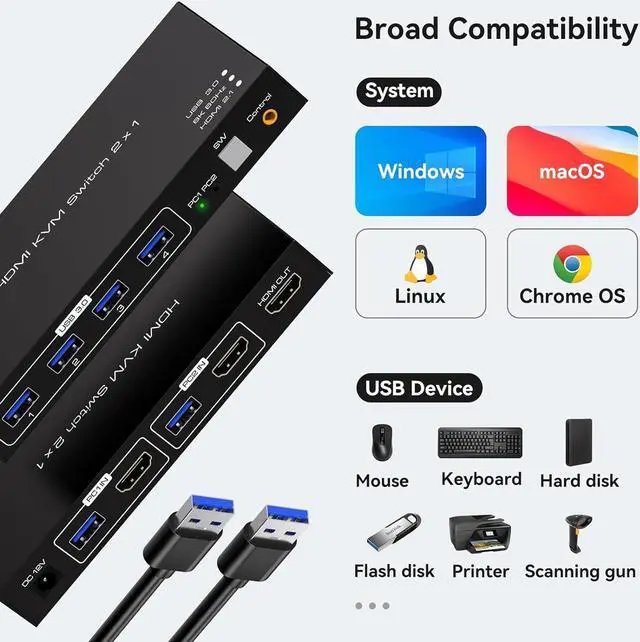

The KVM switches are compatible with a wide range of systems
The KVM switch is compatible with Windows, Vista/XP, MacOs, Linux, etc. It is plug-and-play and does not require any driver installation.
