2 Displayport1.4+HDMI2.1 USB3.0 Triple Monitors KVM Switch allows 3 desktop computers/laptops to share 3 monitors and 4 USB3.0 ports(keyboard,mouse and other USB devices).It can make your work space tidy and efficient, also a premium choice for working from home.
NOTE1: Only when your computer supports 3 display or multi display, you can use this KVM to achieve 3 PC to share 3 monitors.
NOTE2: You must make sure that your computer supports three-screen output, otherwise you cannot get three monitors to work at the same time. Test method: Without connecting to KVM, connect the computer directly to three monitors. If all three monitors work, then your computer supports three-screen output.

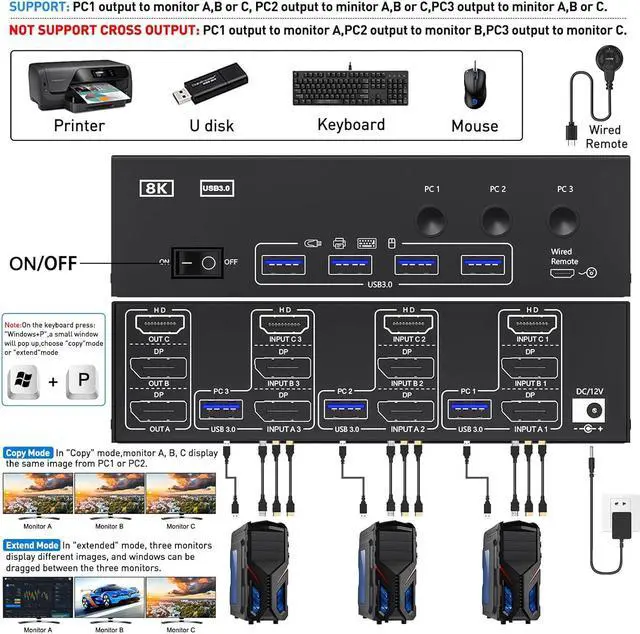

NOTE3: Please connect it correctly to make KVM work properly.
The resolution and fresh rate of triple monitor KVM switch supports up to 8K@60Hz/4K@144Hz.
BUT PLEASE NOTE THAT :HDMI part supports 8K@60Hz, 4K@120Hz,and backward compatible.Displayport part support 8K@30Hz ,4K@144Hz and backward compatible.
Warming: Please use HD-MI2.1 and DP1.4 cables, if the set distance allows,the length of cabels more short more better.
Press "Window+P" simultaneously on the keyboard to select mode.

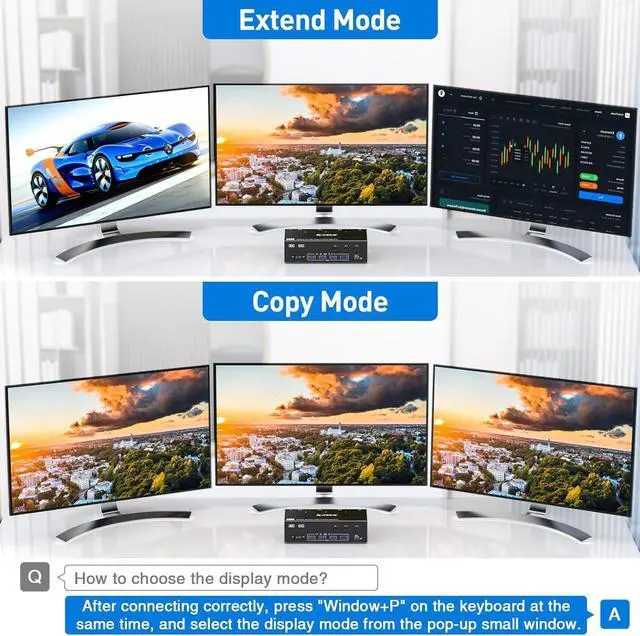

In copy mode, the images on the three monitors are the same
Press "Window+P" simultaneously on the keyboard to select mode.
In extended mode, the three monitors display different images, and the working window can be dragged between the three monitors.
Two switching methods: control panel button + 4.92ft wired controller (included)
Three color indicator lights: Let you clearly know which computer you are currently switching to
The signal can be re-identified after powering off for 5 seconds and then turned on again. No need to unplug or plug in.
A 12V power adapter is included in the package, which solves the problem of insufficient power supply.
Indicator lights can clearly show which computer you are currently switching to.

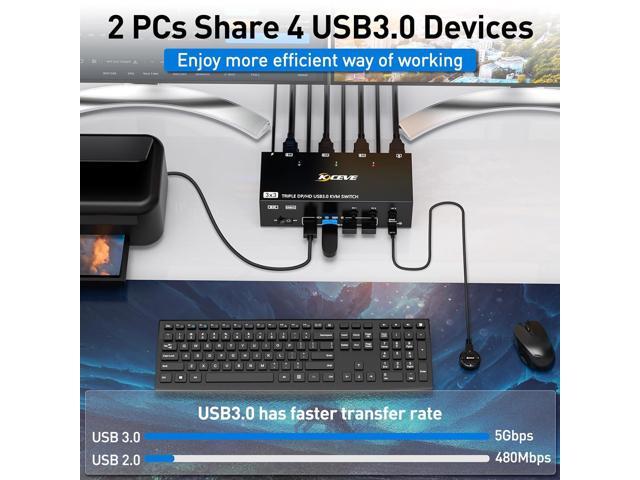

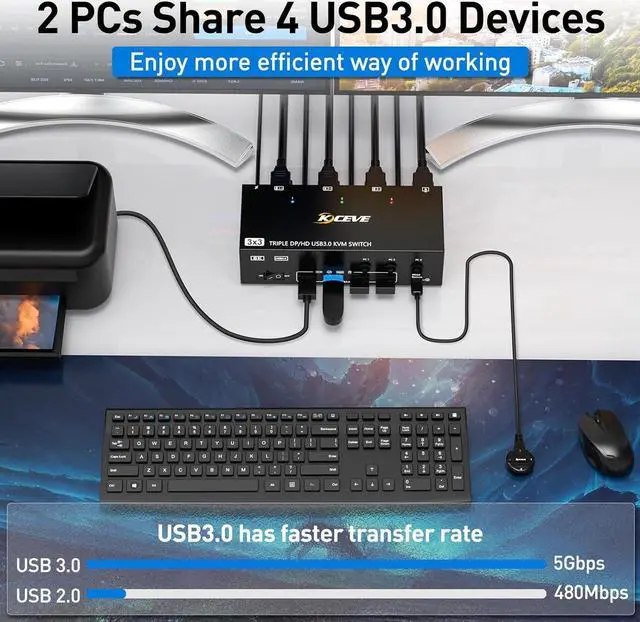

USB 3.0 is compatible with USB 3.0, and the data transmission speed can reach 5Gbps, while the data transmission speed of USB2.0 is only 480Mbps
- 1*Triple Monitor USB3.0 KVM Switch;
- 3*USB3.0 Cables(1.5m/4.9ft);
- 1*Wired remote controller(1.52m/5ft);
- 1*User manual;
- 1*12V Power Adapter(1.52m/5ft).
