MST Displayport KVM Switch 2 Monitors 2 Computers 4K @144Hz, (1 DP in,DP+HDMI Out), Dual Monitor KVM Switch Displayport 1.4 with 4 USB 3.0 Port for USB Device, Wired Remote and 4 Cables Included

Upgraded version of Displayport KVM switch dual monitor,quickly switch between 2 computers, share 2 monitors and 4 USB3.0 ports.

Traditional 2 monitor displayport switch requires 2 DP cables to connect each computer, but with this displayport MST KVM, each computer only needs 1 DP cable to achieve 2 monitor output, 1 DP input, DP+HDMI output, and supports mirror mode and extended mode.

1. Only one DP port is required for each input computer to achieve dual-screen output (DP + HD-MI output)
2. 2 computers share 4 USB devices (3 USB3.0 devices + 1 Type C device) and two monitors

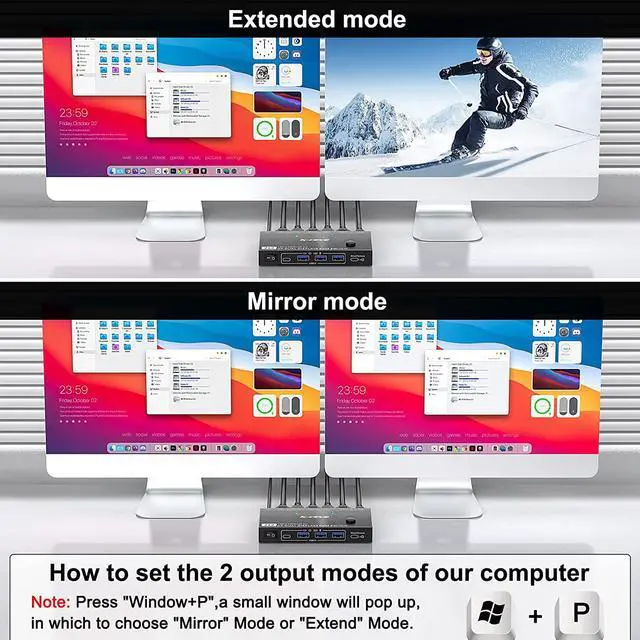

3. Dual monitor output supports extended and copy display.

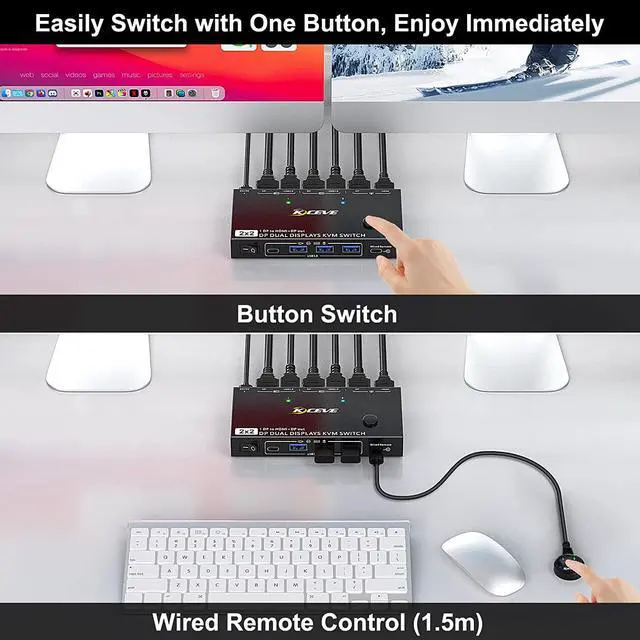

4. Switching mode: push-button switch and wired remote control.
5. Supports wired or wireless keyboard and mouse.

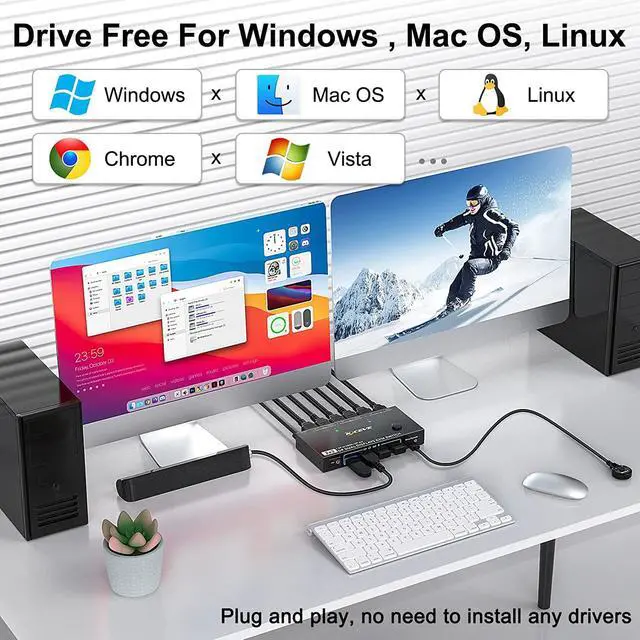

6. Support for most major operating systems, including Windows, Linux, and Mac
7. Support the highest resolution 8K@30Hz,4K@144Hz, downward compatible.
8. Supoort DP 1.2 and downward compatible.
9. Supported audio formats are LPCM2/5.1/7.1CH, Dolby 5.1CH.
10. Built-in ESD electrostatic protection.

Note:

• Each computer requires dual graphics cards to support dual-screen output

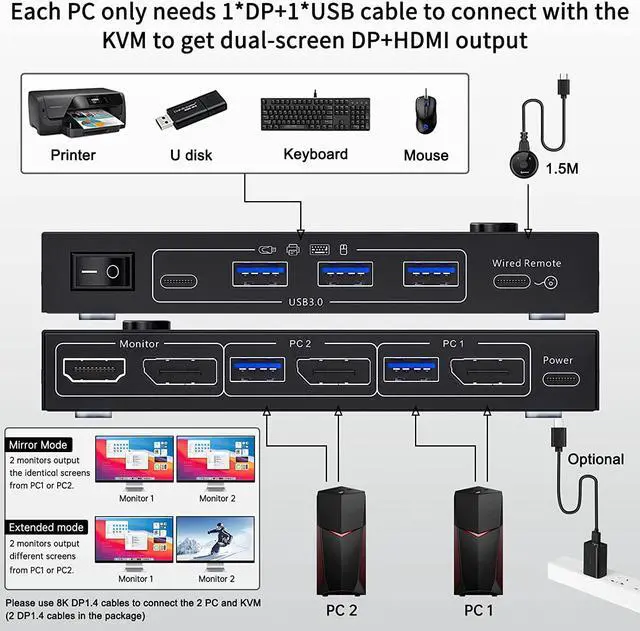

Connection steps:

Step 1. Connect 1*DP cable+1*USB 3.0 cable between PC 1 and KVM (marked USB 3.0, DP).

Step 2. Connect 2*DP cable+1*USB 3.0 cable between PC 2 and KVM (marked USB 3.0, DP).

Step 3. Connect 1*DP+1*HD-MI cable between the dual display KVM (marked "monitor") and your 2 monitors.

Step 4. Insert your USB devices(keyboard mouse and U disk) into the USB port on the KVM.

Step 5. Insert the Wired Remote into the KVM to remotely switch between PC1 and PC2.

Please be sure to use the two 8K DP1.4 cables included in the package to connect your computers and the Dual Monitor KVM.

• This DP KVM Switch Dual Monitor input supports DP, Mini DP to DP, USB C to DP and USB C docking station; the displays output supports DP to HD-MI/VGA, HD-MI to VGA, HDMI to DP (special converter with USB cable power supply). When adapters are being used, the resolution will drop. So the less adapter the better.
• Suggest to Use DisplayPort and HD-MI monitor to avoid using adapters on video outputs.
• Does not support EDID emulation (all DP KVM on the market do not support it, this is the DisplayPort specific issue and is why DisplayPort doesn't support EDID emulation, not just this product). So,after switching, the window position of the original display information will be shifted to some extent.
• Single monitor output: resolution up to 8K@30Hz, 4K@144Hz; Dual minitor simultaneous output: up to 4K@100Hz, backward compatible.
