Features:

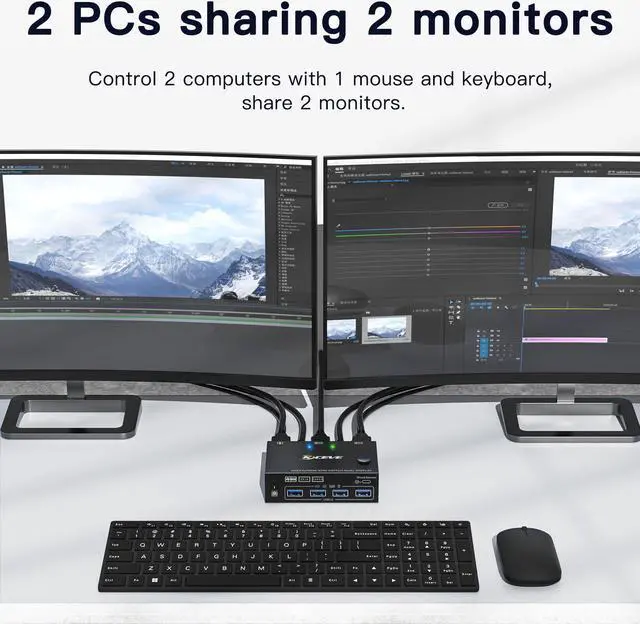

- It is plug and play, 2 computers share one set of wired/wireless keyboard, mouse and 2 monitors.
- With just a click of the panel button or wired remote, you can easily switch between two PC sources.
- Cross support most major OS including Windows, Linux, Mac

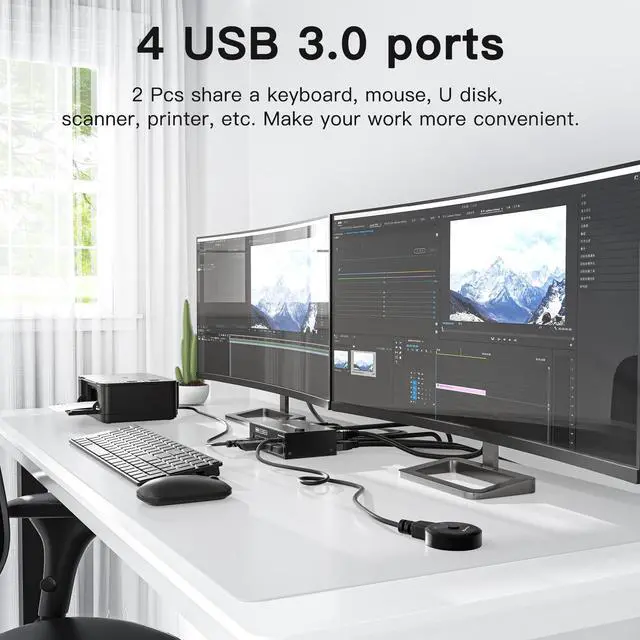

- With 4 USB 3.0 ports, the two PCs can share up to four USB peripherals.
- Support max up resolution 4K@60Hz,2560×1440@120Hz,@144Hz,1920x1080P@120Hz,@144Hz,downward compatible.
- Support EDID emulation, USB3.0 dual monitor KVM switch can simulate the EDID of the display, when the monitor is switched between two computers, the original window order will not be changed.

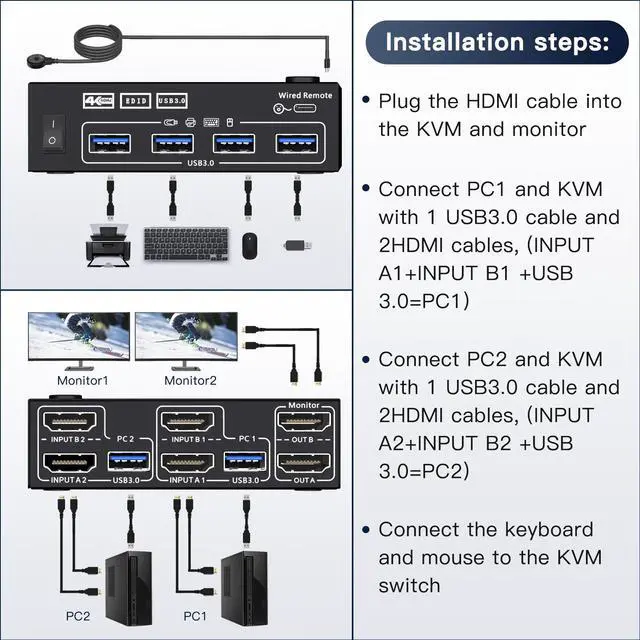

Connection steps:
Step 1. Connect 2*HD-MI cables+1*USB cable between PC 1 and KVM (USB 3.0, INPUT A1, INPUT B1).
Step 2. Connect 2*HD-MI cables+1*USB cable between PC 2 and KVM (USB 3.0, INPUT A2, INPUT B2).
Step 3. Connect 2*HD-MI cables between the KVM (OUT A, OUT B) and the monitors.
Step 4. Connect the keyboard,mouse and other USB devices to the USB3.0 ports on the KVM.
Step 5. Insert the wired remote to remotely switch between PC1 and PC2.
***Notice***

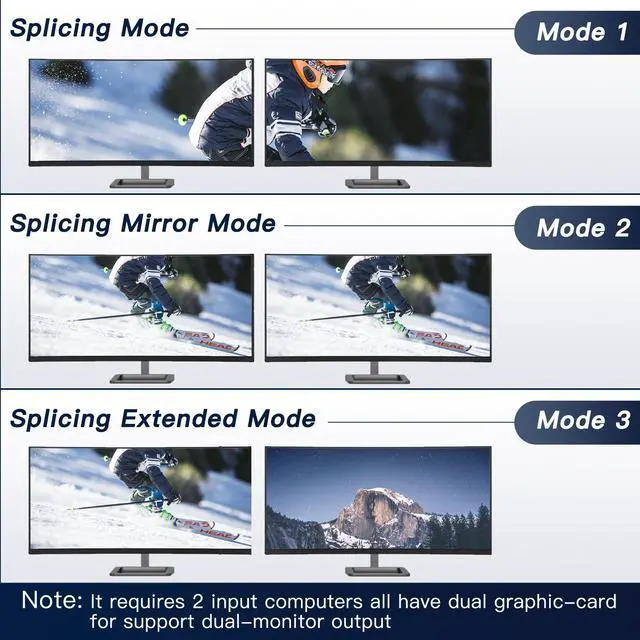

1.After connecting the computers and the monitors through KVM, you need to set the screen output mode on the computer (press Windows+P) and select the output mode in the pop-up window on the screen. Otherwise, only one of the two connected monitors has an image.
2.Most of the reasons why only one video output works is because of incorrect connection. Please make sure each computer have(2 HDMI cables+1 USB cable) connect to the KVM.

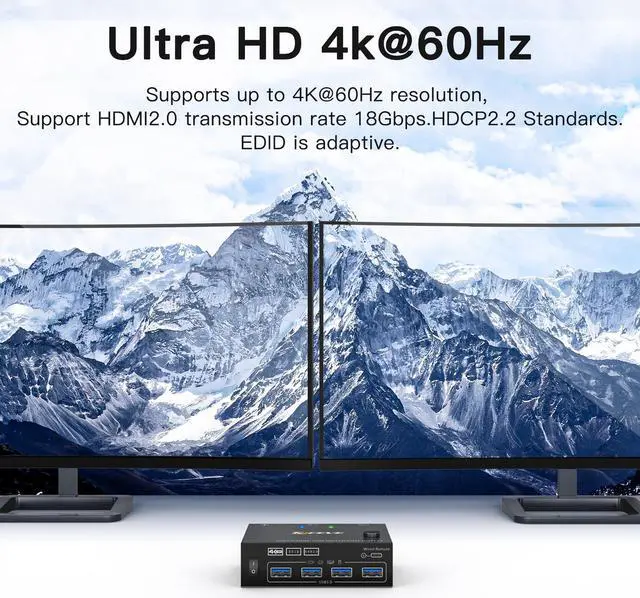

Support 4K@60Hz, 1920x1080P@60Hz @120Hz,@144Hz and backward compatible with lower resolutions.
Supports 5Gbps data transfer speed , can transfer files in Seconds,Much faster than USB 2.0.
Supports remote switching of desktop controllers for easy cable management.With indicator light (green light).

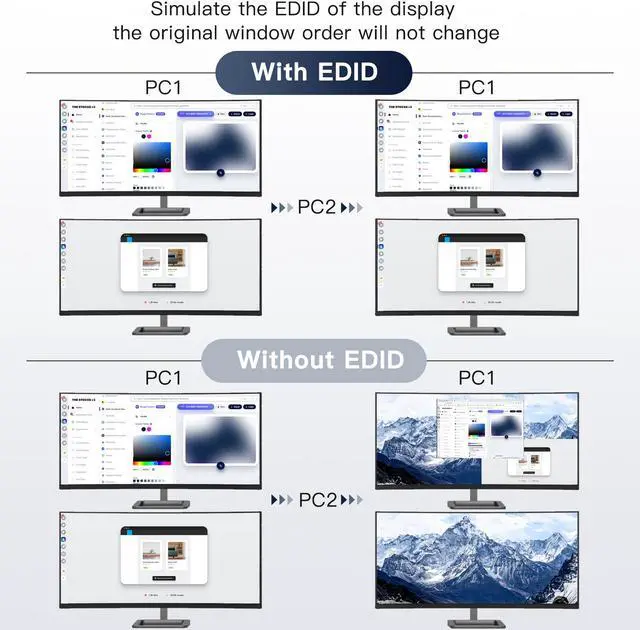

Simulate the EDID of the display, when the monitor is switched between two computers, the original window order will not change.
| Video Signal | HDMI with 4K@60Hz 4:4:4, HDCP 2.2 |
|---|---|
| USB Data | USB 3.0, up to 5Gbps data transfer rate. |
| Max Data Rate | 18 Gbps |
| Input/Output Resolution | Up to 3840*2160@60Hz, 3440*1440@144Hz,120Hz; 2560*1440@144Hz,120Hz;1920*1080@60Hz |
| Device Dimensions (W x H x D) | 100mm x 30mm x65mm/ 3.94" x 1.18" x 2.56" |
| Product Weight | 0.63kg/1.39lbs |
- 1x Dual Monitor KVM Switch
- 2 x USB Cable (USB-A to USB-B)
- 2 x HD-MI Cable
- 1x Desktop Controller (1.52m)
- 1x User Manual
