Dual Monitor KVM Switch allows control 2 computer with one set of controls (keyboard and mouse) and one HDMI display screen and Displayport display screen,Realizes 2 in and 2 out free selection synchronous switching. You can centrally control and manage hosts laptop or game console without having to move from one workstation to another.

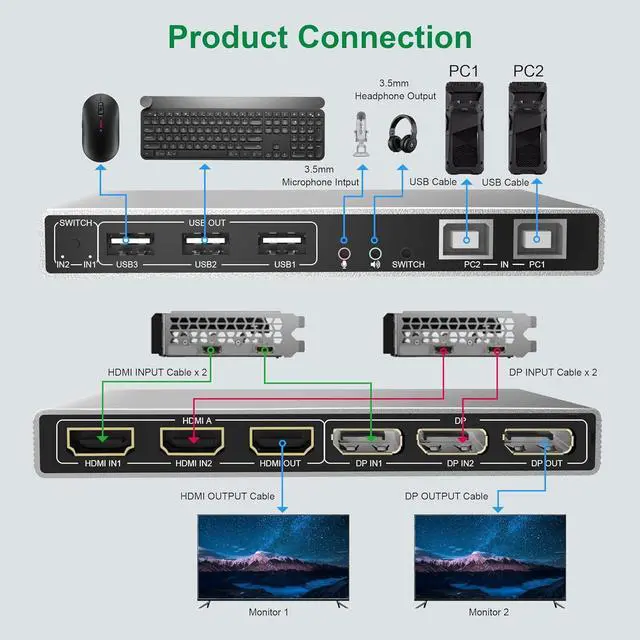

- 1. Turn off all devices and unplug all the cables;
- 2. Plug displayport cables, HDMI cables and USB cables into KVM switch and your computers/laptops ( HDMI and DP cable not included):
- Please check the HDMI IN1, DP IN1 and USB IN1 is corresponding, HDMI IN2, DP IN2 and USB IN2 is corresponding, NOT support mixed insertion.
- HDMI IN1 + DP IN1 + USB IN1=PC1
- HDMI IN2 + DP IN2 + USB IN2=PC2
- 3. Plug mouse and keyboard into KVM switch;
- 4. Plug displayport cable, HDMI cable and USB cables into KVM switch and monitors;
- 5. Plug headphone or microphone into KVM switch if needed;
- 6. Plug power supply into KVM switch; (Note: The power supply and the wired button switch share the same interface)
- 7. Boot computers.
Tips:
- Reliable adapters are needed but not included for DVI, VGA, USB Type C video outputs. Please be aware of the adapters needed for your setup.

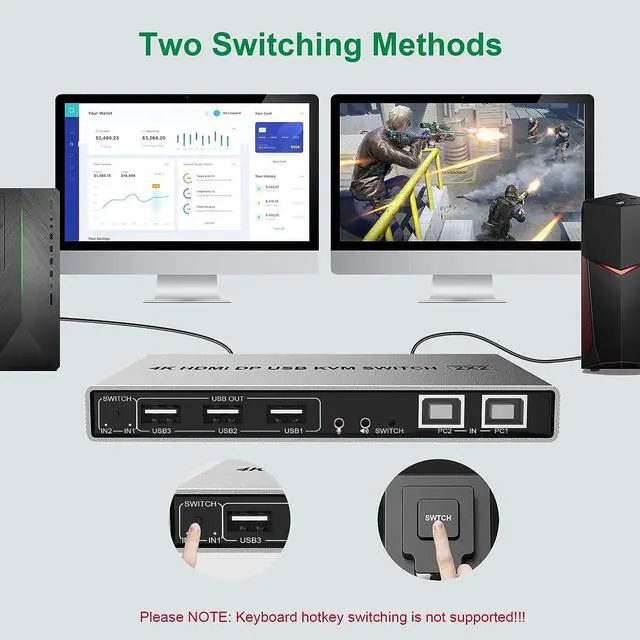

- Quickly switch between the 2 computers with just one click of the switch button and no extra operations.
- A button-controlled switch extension cord is presented, so you don't have to get up and switch easily when you use it.
- Do not support keyboard switches, avoid hotkey conflicts.
- The 2x2 HDMI DisplayPort KVM switch has a resolution of up to 3840*2160@60Hz on two displays at the same time.
- 2.0 supports HDCP, HDR, Dolby Vision.
- This dual Monitor KVM with 3 USB Ports for a keyboard, mouse, printer, USB headsets, or webcams.
- KVM Switch comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone.

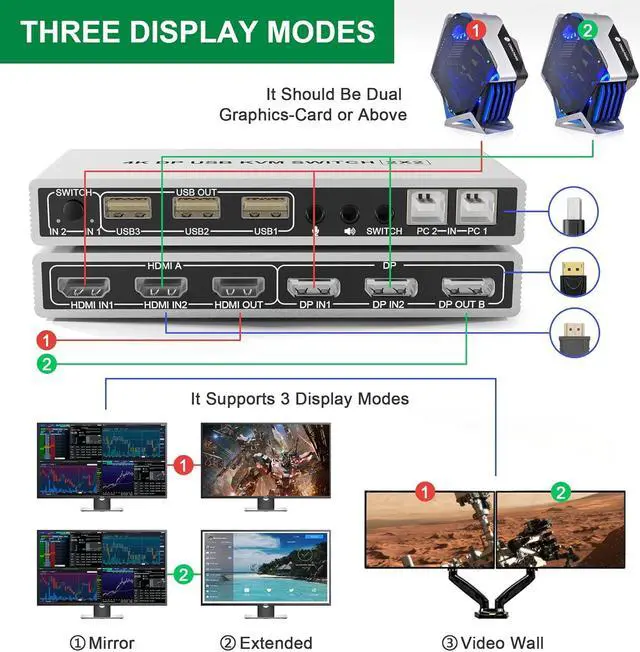

Support extended or duplicated display depending on computer setting.
Support max up resolution 4K@60Hz, downward compatible
Support HDCP and auto EDID
Support 3.5mm headphone output
Support microphone input
Support controller or buttons switch
USB devices that can be connected, such as: USB mouse, keyboard, U disk, printer, camera, etc.
Built-in automatic equalization system, picture position, clear and stable
Built-in ESD electrostatic protection circuit, all-round protection system safety

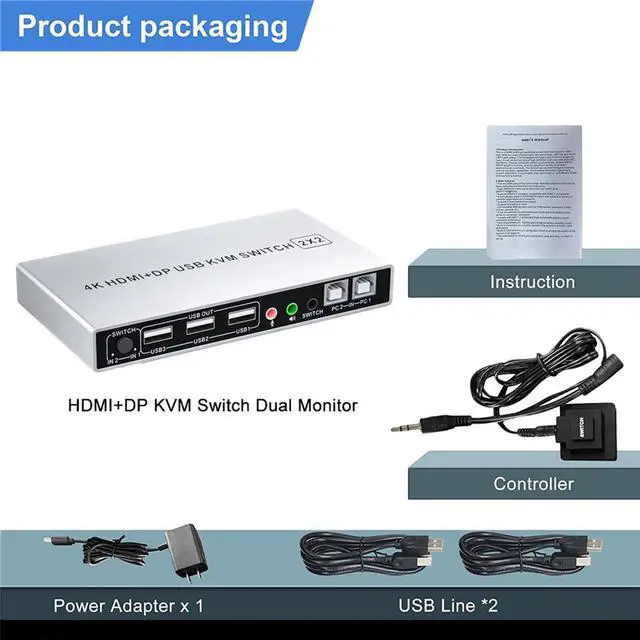

- 1 x HDMI KVM USB Switch
- 2 x USB data cable
- 1 x USB power cable
- 1 x extend switch control
- 1 x User Manual
NOTE:
1.To get dual monitor display, each computer / laptop needs 2 video connections to correspondent HDMI Input A and Input B port on the KVM switch.
2. Wireless mouse and keyboads, Mechanical keyboards and mouses are not supported. Standard 104-key wired USB keyboard, standard 2 or 3 button wired USB mouse are recommended
3. Reliable adapters are needed but not included for DVI, VGA, DisplayPort (DP), USB Type C video outputs. Please be aware of the adapters needed for your setup before order.
4. Please do not use any USB HUB
5. Please check the HDMI IN1, DP IN1 and USB IN1 is corresponding, HDMI IN2, DP IN2 and USB IN2 is corresponding, NOT support mixed insertion.
HDMI IN1 + DP IN1 + USB IN1=PC1 ; HDMI IN2 + DP IN2 + USB IN2=PC2
