Dual Monitor DisplayPort KVM Switch 2 in 2 Out, 4K@60Hz Extended Display, 2 Computers 2 Monitors Displayport KVM Switch with Audio Microphone Output and 3 USB Ports, PC Monitor Keyboard Mouse Switcher



Features:

• No complicated installation is required, and non-professionals can easily operate it;
• Share one set of keyboard, mouse and dual monitors between 2 computers or laptops;

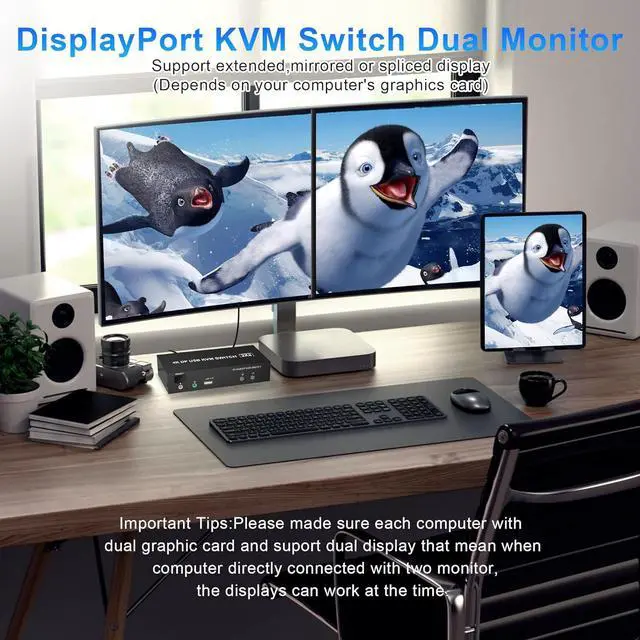

• Dual monitors output support up to 4K@60Hz for extended,mirrored or spliced display (Depends on your computer's graphics card.);
• Cross support major operation systems including Windows, Linux, Mac and more;

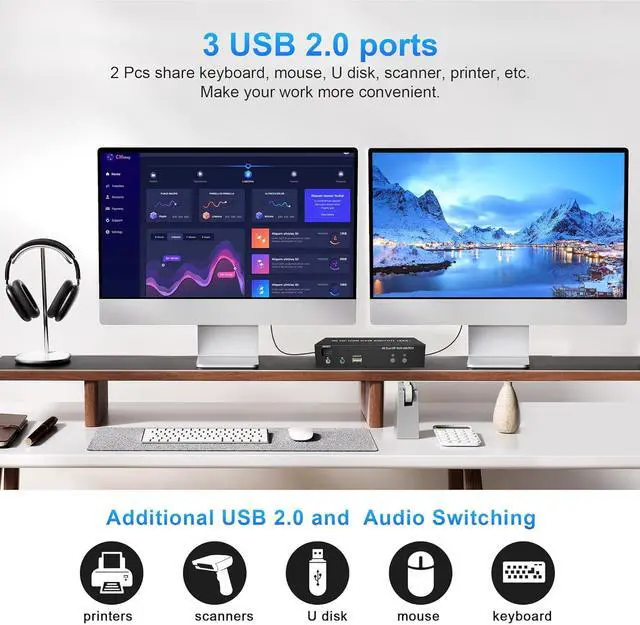

• With extra 3 USB 2.0 and Audio Microphone output;
• The ports that need to plug in DP/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;

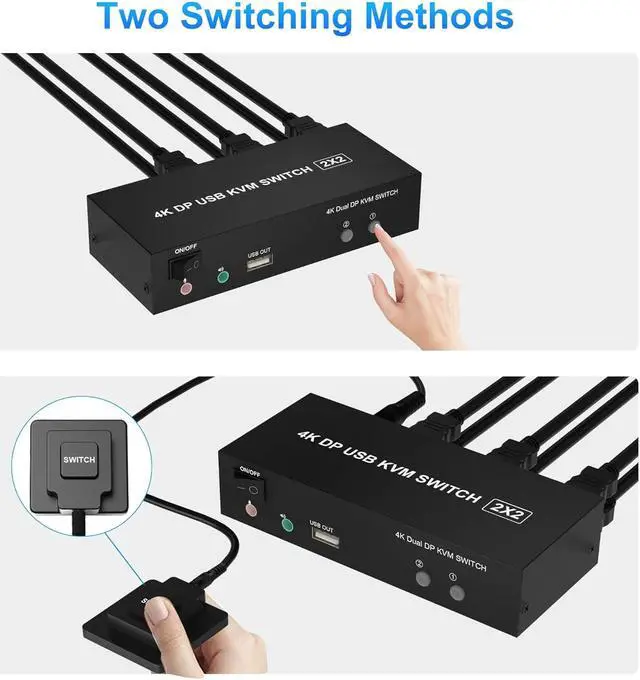

• Switching modes: Buttons on the front panel and wired remote.

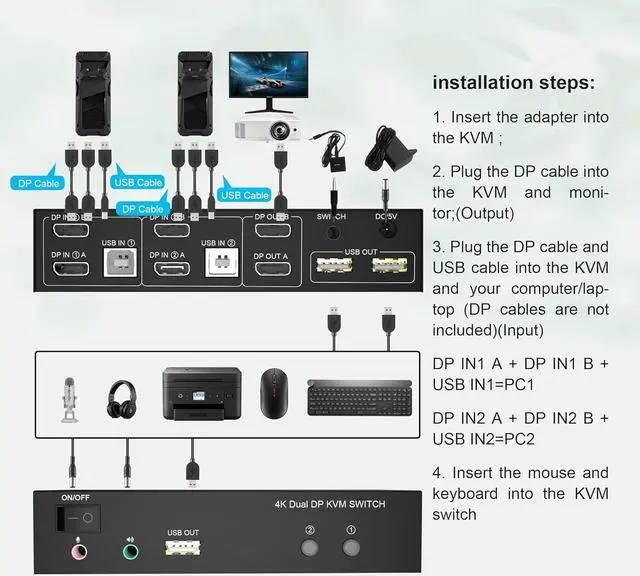

1. Insert the adapter into the KVM ;

2. Plug the Displayport cable into the KVM switch and monitor;(Output)

3. Plug the Displayport cable and USB cable into the KVM switch and your computer/laptop (DP cables are not included)(Input)

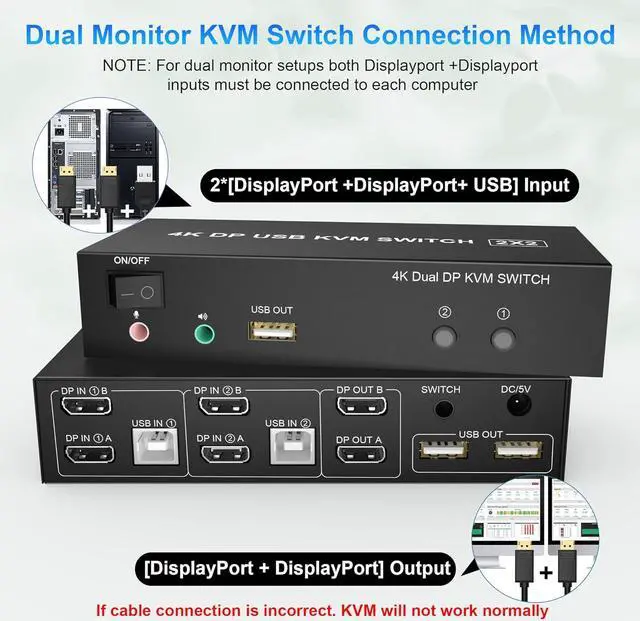

Please check whether DP IN1 A , DP IN1 B and USB IN1 are corresponding, and whether DP IN2 A , DP IN2 B and USB IN2 are corresponding. Mixed insertion is not supported.

DP IN1 A + DP IN1 B + USB IN1=PC1

DP IN2 A + DP IN2 B + USB IN2=PC2

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port



Note:

1. Most of the reasons why only onevideo output works is because of incorrect connection. Please make sure eachcomputer have 2 DP cables connect to the KVM.

2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
