Advantages:
- 2 computers share one set of wired/wireless keyboard, mouse and 2 monitors.
- Dual monitors output support extended and mirror display.
- Switching modes: Button switch and wired remote.
- Support wired or wireless keyboard and mouse.
- Cross support most major OS including Windows, Linux, Mac

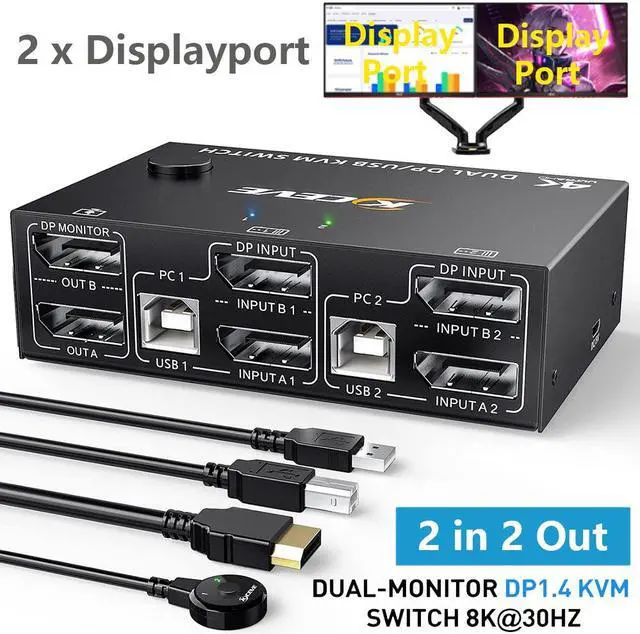

- Dual displayport KVM switch with 4 USB 2.0 ports for USB devices.
- Support max up resolution 8K@30Hz,4K@144Hz,2560×1440@144Hz,1920x1080P@144Hz,downward compatible.

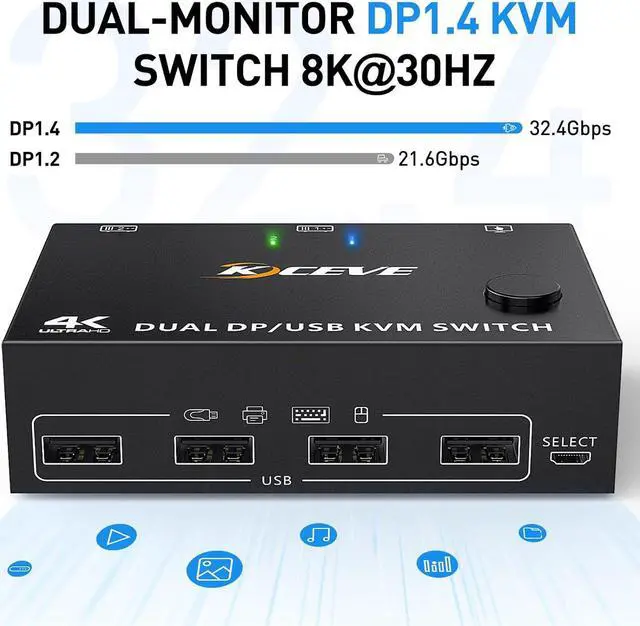

- Support DP 1.4 standard, backwards compatible with DP 1.2 standard.
- A USB hub can expand the USB ports if multiple connections are required.
- After connecting the computer to the monitor using the KVM, set the screen output mode (press Windows+P) on the keyboard and select the output mode in the dialog box that is displayed. Otherwise, only 1 of the two connected monitors has an image.
- Before purchasing this product, ensure that the computer is directly connected to the monitor to properly display images. Otherwise, the KVM cannot be used.
- No need to download app and driver, plug and play
Please make sure that the computer, monitor, and DP cable support 8K@30Hz/4K@144Hz/120Hz at the same time to get 8K@30Hz/4K@144Hz/120Hz resolution.
Warm tips:
- If using the MST multi-screen docking station, the computer CPU requires 11th generation; Docking station resolution work with 4k@30Hz or 1080p@60Hz when dual screen display.
- MAC1/MAC2 only supports one external screen, no multi-screen output.

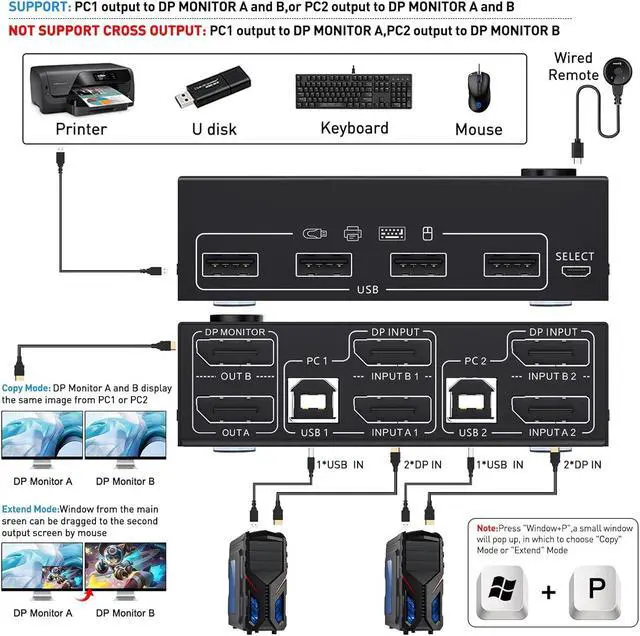

Connection steps:
Step 1: Connect 2 x DP cable +1 x USB cable to PC 1 and KVM (USB 1, INPUT A1, INPUT B1), Connect 2 x DP cable +1 x USB cable to PC 2 and KVM (USB 2, INPUT A2, INPUT B2).
Step 2.: Connect 2 x DP cable between the KVM (OUT A, OUT B) and the monitors.
Step 3.: Connect a keyboard and mouse or other USB devices to the USB output ports on the KVM.
Step 4: Plug the desktop controller into the SELECT port and remotely switch between PC1 and PC2.
Support 8K@30Hz,4K@144Hz and backward compatible with lower resolutions.
Support 2.4GHz wireless keyboard and mouse (not support Bluetooth)
Supports remote switching of desktop controllers for easy cable management.With indicator light (green light).

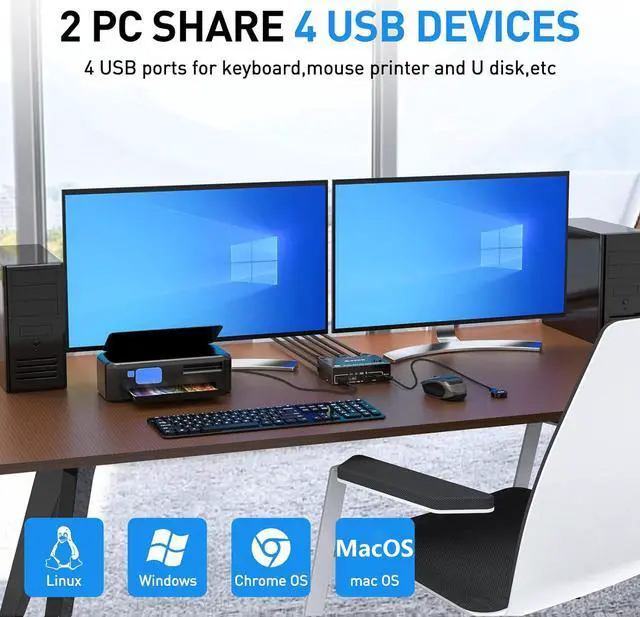

4 USB ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc.
When using a high-power USB device, please plug it in to provide sufficient power.(Power adapter not included)
Driver-free for Windows 11/10/8/7/Vista/XP and Mac OS,Linux.
- This Dual Monitor KVM Switch DisplayPort requires 2* DP+1*USB input for each computer and 2* DP output for 2 monitors. However, most computers especially laptops do not have 2 DisplayPort outputs,If so, please check if your computer / laptop has another video ports like HDMI or USB C (VGA and DVI is not recommended), If yes, you can use a powered HDMI to DP adapter (HDMI input, displayport output, with USB power), or a USB C to DP adapter for converting it to DisplayPort.
- When adapters are being used, the resolution will drop. So the less adapter the better.
- Suggest to Use DisplayPort monitor to avoid using adapters on video outputs.
- This Dual Monitor Displayport KVM Switch does not support EDID emulation.
- If need to achieve 8K@30Hz, 4K@144Hz, 4K@120Hz, in addition to the computers and monitors to support this resolution, also need to use a real 8K DP1.4 cables, the 2 cables we provide are 8K DP cables.
