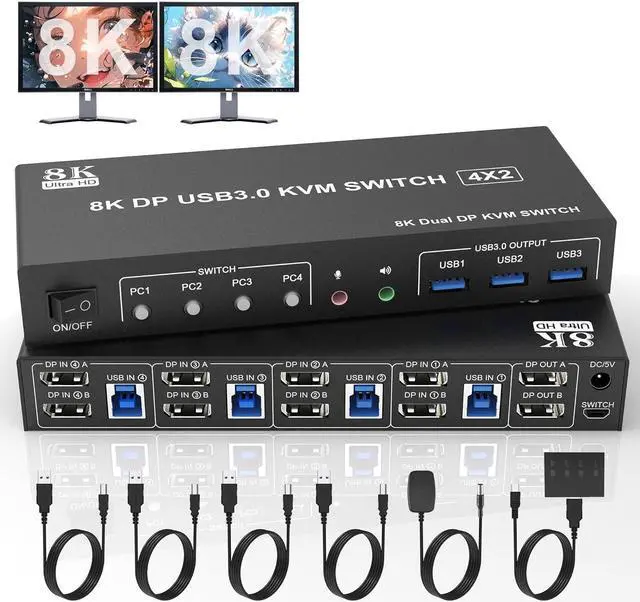

8K DP1.4 Dual Monitor KVM Switch DisplayPort 4 computers share 2 monitor and 3 USB 3.0 device
- You can toggle and control any input device at any time with a button switch.
Does Everything You Need!

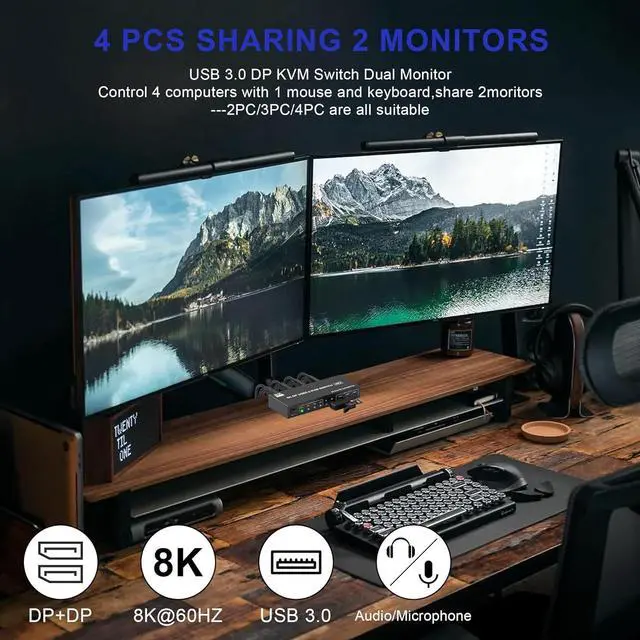

- 4 computers/laptops share 3 USB 3.0 devices and 2 monitors, and with extra Audio Microphone output;
- Supoort DP 1.4 and downward compatible.Dual monitors output support up to 8K@60Hz for extended,mirrored or spliced display (Depends on your computer's graphics card.);
- Switching mode: push-button switch and wired remote control;
- Support for most major operating systems, including Windows, Linux, and Mac;
- The ports that need to plug in DP/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;
- No complicated installation is required, and non-professionals can easily operate it.
8K HD Resolution
- This 4 port kvm switch dual monitor supporting high resolution max up to 8K@60Hz, and also supports 4K@60Hz or other lower resolution (Downward Compatible).
Note:
- Only when both your computer Graphics card, monitor and DP cable support 8K@60Hz then you can get 8K@60Hz effect, so if you want the max resolution you have to check your devices first.

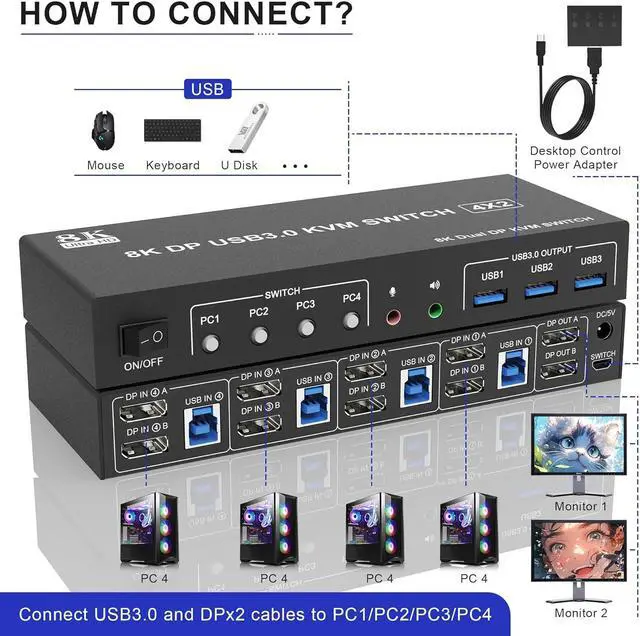

Connection Steps & Notes
- 1. Insert the DC/5V adapter into the KVM ;
- 2. Plug the DP cable into the KVM and monitor;(Output)
- 3. Plug the DP cable and USB cable into the KVM and your computer/laptop (DP cables are not included)(Input)
- DP IN1 A + DP IN1 B + USB IN1=PC1
- DP IN2 A + DPIN2 B + USB IN2=PC2
- DP IN3 A + DPIN3 B + USB IN2=PC3
- DP IN4 A + DPIN4 B + USB IN2=PC4
- 4. Insert the mouse and keyboard into the KVM switch
- 5. If needed, you can connect a microphone and audio port
Note:
- 1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(2 DP cables+1 USB cable) connect to the KVM.
- 2.Before purchasing this DP dual monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally,Otherwise, the KVM will not be available.
- 3. Note: DP cables are not included

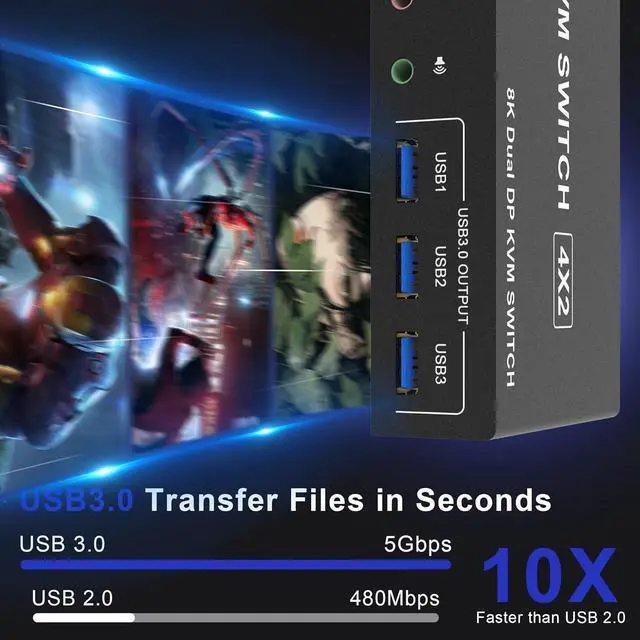

Equipped with 3 USB 3.0 Ports
- Supports 5Gbps data transfer speed , can transfer files in Seconds, Much faster than USB 2.0.
- 3 USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc.

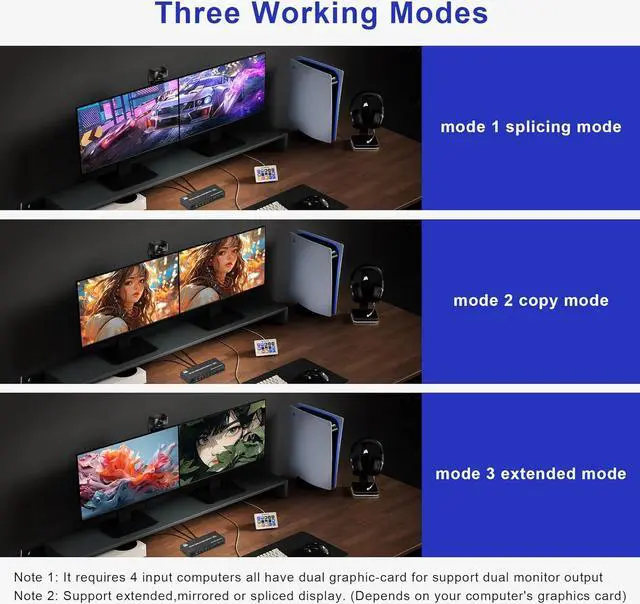

3 Display Modes
- Extended Display
- Mirrored Display
- Spliced Display
If you are a designer or illustrator, you can use this mode to see the effect while working.
- 1)Extended mode can output two different screens and mirror mode can output two identical screens. Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.
- 2) The requirement for this KVM to achieve a dual-screen display is that each PC you connect to has the capability to support a dual or multi-screen display. This has nothing to do with KVM.
Supports separate audio and microphone output
- KVM switch dual monitor 4 port comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone.

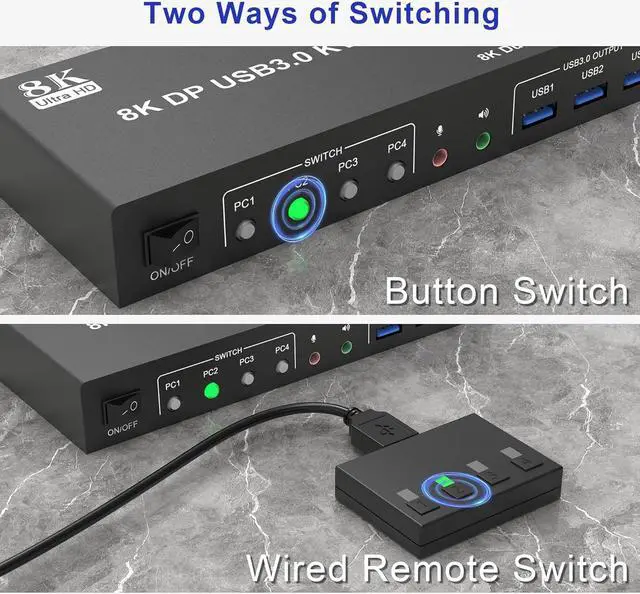

Switch by Panel button/desktop controller
- Quickly switch between the 4 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).
- Please note: This KVM does not support hotkey switching.
LED Indicator
- When switching to which PC, the LED will tell you whether PC1 or PC2 or PC3 or PC4 is active.
