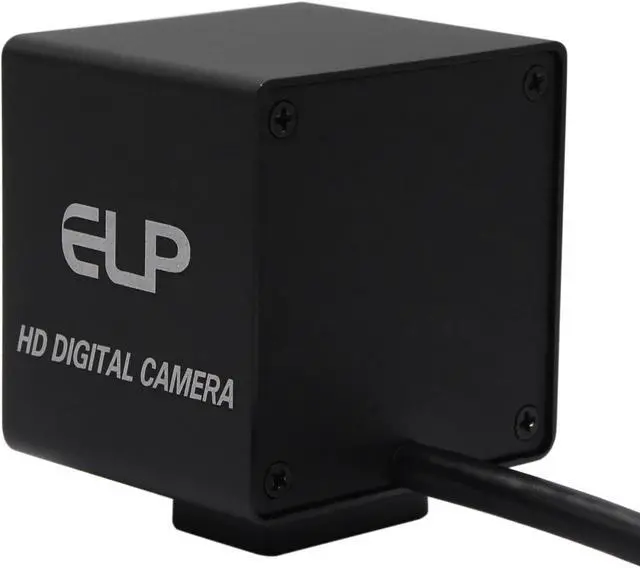

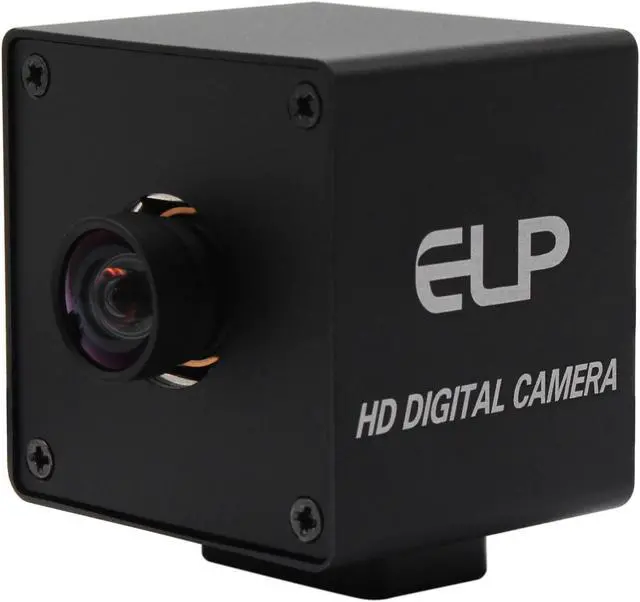

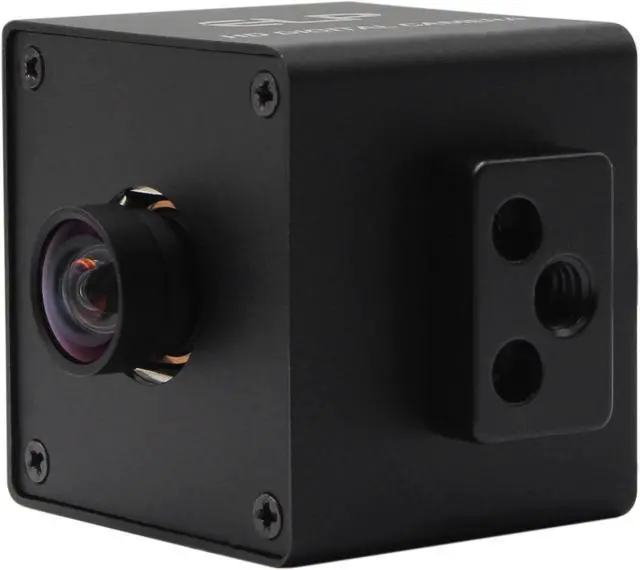

USB Web Camera 3840x2160 4K Cam High Resolution HD Computer Camera Webcam Video Conference Camera with no distortion lens

USB Web Camera 3840x2160 4K Cam High Resolution HD Computer Camera Webcams Video Conference Camera with no distortion lens

Packing list:

1) 1pc 4K Autofocus usb camera  with  no distortion lens ( whitle leds optional)

2) 1pc 3m usb cable

Key Specifications:

Model NO.:

-USB4KHDR02AF-KL100

Image Sensor

SONY IMX415 (1/2.8 )

Max. Resolution

3840(H) *2160 (V)

Sensitivity

1000mV/Lux-sec

Pixel Size

1.45µmx1.45µm

Compression format

MJPEG  / YUY2YUYV

Resolution & frame

3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG

2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG

1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE

1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG

640x480@ 30fps MJPEG /  320x240@ 30fps MJPEG

3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2

2048x1536@ 3fps YUY2 /1600x1200@ 5fps YUY2

1920x1080@ 5fps YUY2/1280x960@5fps YUY2

1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2

640x480@ 30fps YUY2 /  320x240@ 30fps YUY2

Center definition

1000LW/PH (Center)

S/N Ratio

30dB

Sensitivity

0.65V/lux-sec@550nm

Minimum illumination

0.2lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

AEC

Support

AEB

Support

AGC

Support

Auto Focus

Support

Adjustable parameters

Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White

Balance, Exposure

Lens Parameter

Size:  1/2.5, FOV: 94.5Degree

IR filter: 650±10nm

Power supply& connector

USB BUS POWER  4P-2.0mm socket

Power Voltage

DC5V

Power Current

200mA

Board Size

38mm × 38mm

Storage Temperature

20°C to 70°C

Work Temperature

0°C to 60°C

USB Cable

1M(2M/3M/5M optional)

Operating System support

Win XP/Vista/Win7/Win8 / Linux with UVCabove linux-2.6.26

MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC

Product details show:    4K autofocus usb camera

Effect image:

High Frame rate:

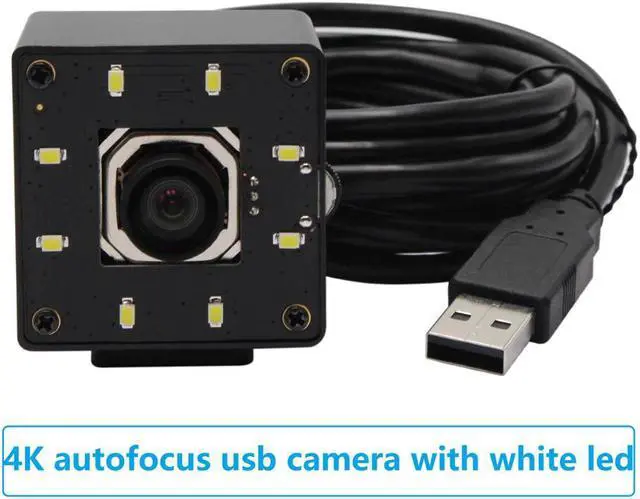

Can add white leds on case:

Our packing :

Other usb cameras for your reference:

About our company:
