HUANANZHI X99 F8D PLUS LGA 2011-3 XEON X99 Motherboard with Intel E5 2690 V3*2 with 4*32G DDR4 RECC memory combo kit set

Specifications:

Model:HUANANZHI F8D PLUS Motherboard

CPU Socket:Support Intel® 2011-3 Processors

Main chipset: C612 ... Etc chipset shipped randomly

Memory Socket:8*DDR4 Memory,Maximum Memory Capacity 8*64G

Memory Standard:Support Four channel DDR4 1866/2133/2400MHz

SATA Inderface:6 *SATA3.0 6Gb/s ;4 *SSATA3.0 6Gb/s

Extended Inderface:IO:4*USB2.0,4*USB3.0,2*Gigabit Ethernet Card,6*3.5MM Audio interface;Expansion pin:1*9pin USB2.0,1*19pin USB3.0,1*Front audio output pin

Expansion Slots:3*PCI Express3.0X16,1*M.2 22110 NVME PCIE x4 3.0 32Gb/s,1*M.2 2280 PCIE X4 3.0@NGFF SSATA 3.0 6GB/S (one ssata signal will be used NGFF)

Soud Track:7.1

Network interface:Gigabit Ethernet

Power interface:24pin+8pin+8pin

Fan interface:6

PCB layer:12 layer PCB,12Phases power supply

Dimension:300*320MM E-ATX

CPU:

Processor Series: Xeon E5 2690V3 *2(12 cores/24 threads)

Main frequency: 2.6GHz

Socket type: LGA 2011-3

3rd level cache: 30MB

Technology: 22nm

Power consumption: 135W

Note:

1: CPU is used, condition good, 1 year warranty

2: There may have some little physical scratches on the surface of the CPU, this is pretty normal.

3: All CPU are strictly tested before shipping

Memory:

Type: ECC RAM

Frequency: DDR4 2133MHz

Capacity: 128G (4*32G)

Note:

Memory is used, condition good, 1 year warranty

Note:

1.The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .

2.Please allow 1-3mm differs due to manual measurement.

3.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

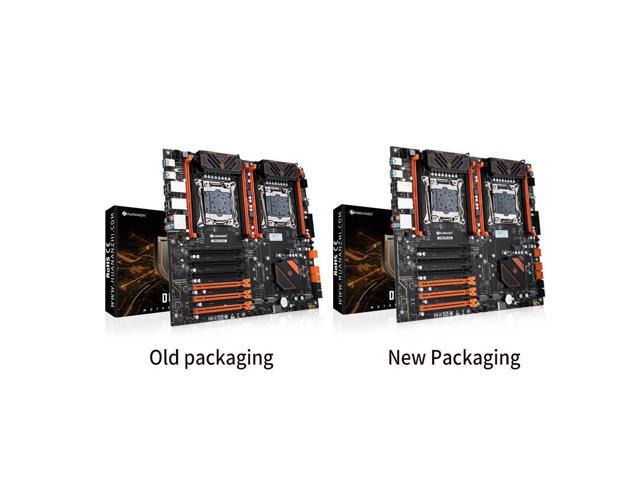

4.We show photos of motherboard, pictures are for reference only, subject to our available products.

5.Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard. You can confirm with our customer service before
purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation. Mind please
don't buy!
