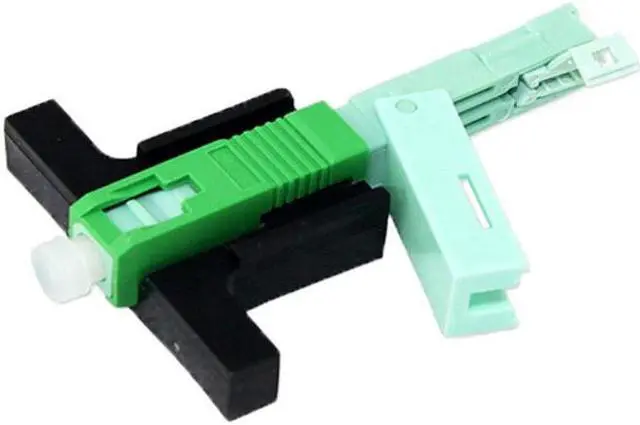

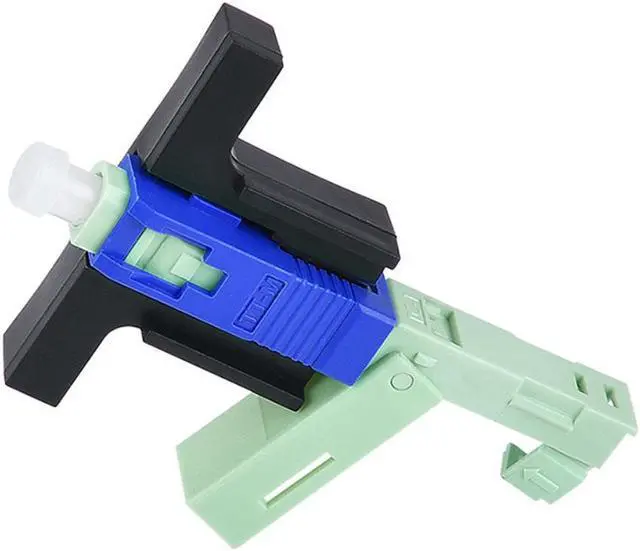

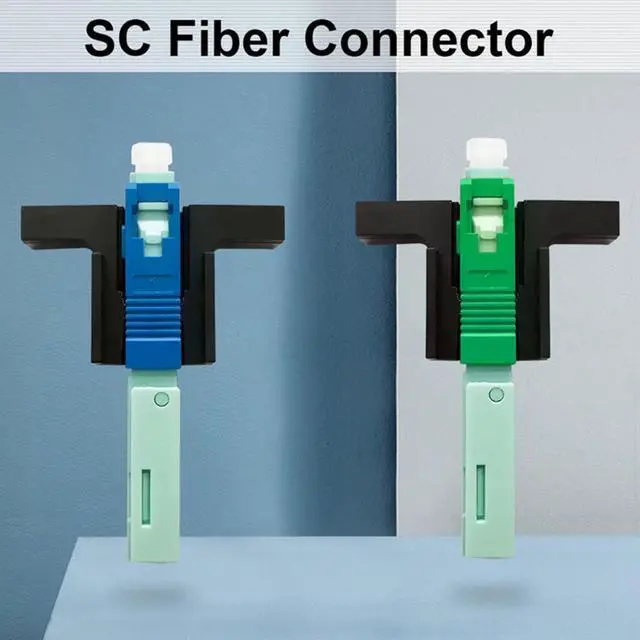

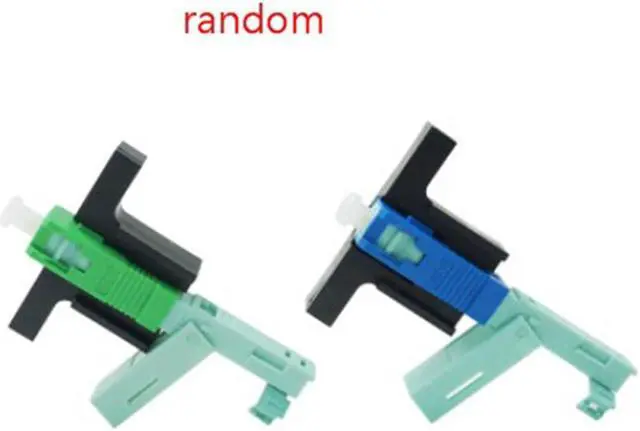

1 Pc SC/UPC Fiber Optic Fast Connector Butterfly SC Connector FTTH Quick Connector Aircraft Head Ceramic Core Quick Connector

Origin:Mainland China
Certification:NONE

Feature
1.100% brand new and high quality
2.Suitable for SC / UPC Fiber Optic
Reusable connector without loss of features
APC/UPC pre-polishing
Simple and quick assembly
Lower installation time 3 min.
Low Insertion Loss = 0.3dB
Return Loss: = - 40dB
Reflection Rate: = 45 ~ 53dB
Operating Temperature: -40 ~ + 75 ° C
1. Based on the pluggable non-preset tube technology
2. Precision ceramic components with co-axial self centering, Excellent and durable optical property
3. Optical fiber fits axially in elastic way and avoids completely any false connect
4. Triple clamping through the naked fiber, tight buffer and cable, etc., can be used as patchcord
5. High on-line tensile strength of Optical Fast Connector after terminating, always keep connecting
under the force from cabling and drawing.
6. Integrated protection of the casing to withstand harsh user environment.
7. Directly connectable with ONU without any optical socket, which reduces FTTH cost.
8. High success rate and easiness in installation with average splicing time 100 sec
9. Lower requirement for the habit working and work environment call for to the builder.
10. Visible Installation quality; independent from any far end light source and special device satisfying cabling construction in any sectioned way.
1.materialplastic
2.colorAs the pictures shown
3.sizeas the picture shows
Package include:1pc
Note:
Please allow minor error due to manual measurement.
The colors may be a little difference for the different monitor display.
