Weastlinks Lamp Tape PC Backlight Flexible LED Strip Light 5V ARGB Aura Sync Multifunctional DIY for 24PIN Motherboard AL200

Features:

1. High quality high-density lamp beads. The built-in 56pcs high quality bright light beads make the light on the light board bright and wide, colorful and pleasing to the eye. Widened design, 20cm long and 5.9cm wide. Built in 4 light bars, 650mm long enough line, fully compatible, more suitable for 24Pin motherboard/3X8Pin graphics card power line.

2. It is bendable and flexible, and made of high-quality silica gel. Multi functional silica gel light emitting panel, soft, flexible and durable, can be bent 360 °, meeting DIY modeling requirements. Built in double row lamp beads, soft and full light effect, no lamp beads exposed, high brightness, no dark spots, can be used as a chassis light bar, can be used as a decorative 24Pin motherboard power line, can also be used as a decorative 8pin graphics card power line. Built in binding tape, without extension cable, is directly bound to video card cable and mainboard cable, which is widely used.

3. Multi application scenario free DIY. The AL200 soft light board can be used to decorate the power supply line of the main board, the power supply line of the video card and other hardware equipment, and can be stretched as a light board. 5V ARGB Aura Sync. Support the 2nd generation addressable ARGB interface of for ASUS, for MSI, for Gigabyte, for ASRock and other motherboards, control the light through software, and customize 16.8 million colors programmatically.

4. Scientific and technological cool luminous stripes. The AL200 is made of high-quality silica gel, which has the advantages of strong light transmission, softness and durability. Cool multi stripe luminous design, soft, full and bright light, showing multi track flow light effect, more scientific and technological.

5. Multi interface expansion is more convenient. 5V 3PIN * 2+4PIN, lengthened wire makes wiring easier, simple white is the current mainstream color, and multiple interfaces make connection, installation and expansion more convenient, greatly improving product compatibility; Lengthen the wire and support the back line. The manual and installation accessories are attached, which can be fixed with ties or double-sided adhesive tape, making installation and use easier.

Specification:
Type: Sync Motherboard Cable.
Model Number: Flexible Strip Light.
Package: Yes.
Model: AL200/AL300.
Material: Silicone.
Lamp bead: AL200(56pcs).AL300(44pcs).
Light bar: 4.
Voltage: 5V DC.
Current: = 0.7A ± 10%.
Power: = 3.5W ± 10%.

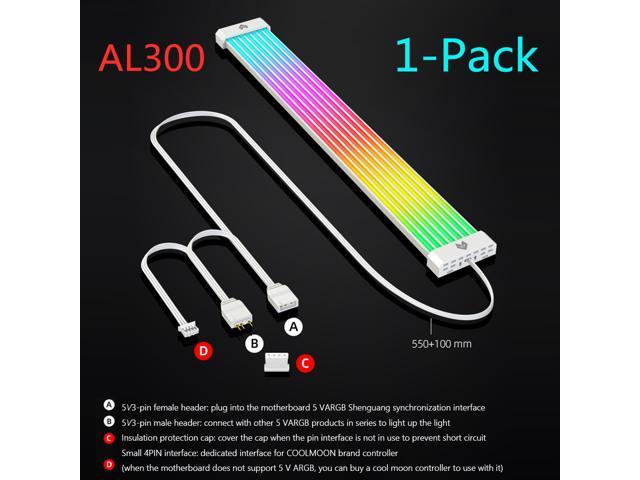

Interface: 5V 3PIN * 2+4PIN (5V 3-pin female - plug into the motherboard 5V ARGB Aura Sync interface, 5V 3-pin male - connect with other 5V ARGB products in series to light up the light; insulation protection cap - pin interface is not used, Cover the cap to prevent short circuit; small 4PIN interface - dedicated interface for COOLMOON brand controller (when the motherboard does not support 5V ARGB, you can purchase the controller to use with it).
Wire length: 600±10% mm.
Light plate: 200x59x12mm/7.87x2.32x0.47in.
Total weight: 0.23kg (including package).
Installation method:
(1): Tie fixing:The AL200 flexible light board can be installed on the graphics card and the power supply line of the motherboard by fixing it with a tie.
Installation method: A. Insert the cable tie from a hole on the back of the transparent buckle, B. Pass the cable tie through another hole, fasten the cable tie to the graphics card and the power supply cable of the motherboard, then tighten the cable tie and cut it off the excess
(2): Double-sided tape fixed:By fixing with double-sided tape, the AL200 flexible light board can be pasted on the free plane of the chassis for use.
Installation method: A. Paste the double-sided tape on the transparent buckle, B. Tear off the protective film on the surface of the double-sided tape, and then paste and fix the AL200 soft light board to a suitable position on the chassis.
Packing List:
1 X Light Board
4 X Double Sided Tapes
1 X Instruction
3 X Transparent Clips
4 X Cable Ties
