Weastlinks 5V ARGB Chassis Light Strip Small 4Pin PC Case LED Light Bar SATA 3PIN Desktop Computer RGB Lamp Decoration

Features:

Perfect atmosphere light bar can improve image clarity and alleviate eye fatigue. Bring home theater like enjoyment, very suitable for DIY.

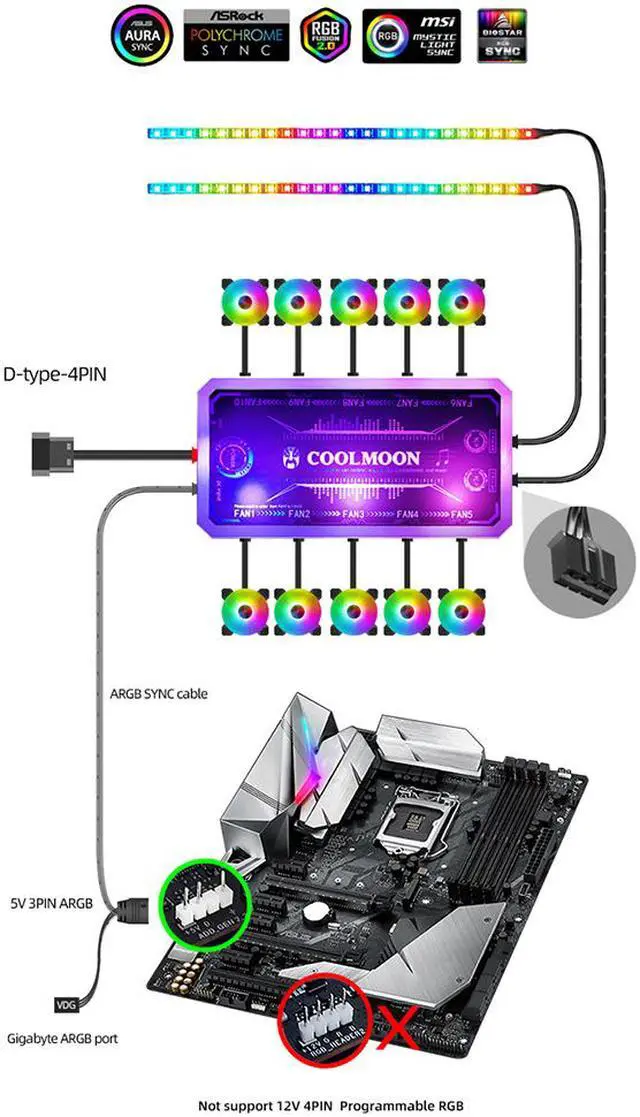

Small 4pin+5V 3Pin ARGB male and female interface. 5V 3-pin female connector: plug into the main board 5V ARGB Shenguang synchronous interface, 5V 3-pin male connector: can be connected in series with other 5V ARGB products; Small 4PIN interface: special interface for brand 6P controller. When the motherboard does not support 5V 3-pin ARGB, you can buy 6P controller to use with it.

Magnetic suction installation. Convenient, practical and beautiful, it can be firmly adsorbed on the iron plate of the chassis, which is very convenient
500mm sufficient wire length. Sufficient power supply line length to meet the wiring requirements of large, medium and small chassis.

Introduction of controller:

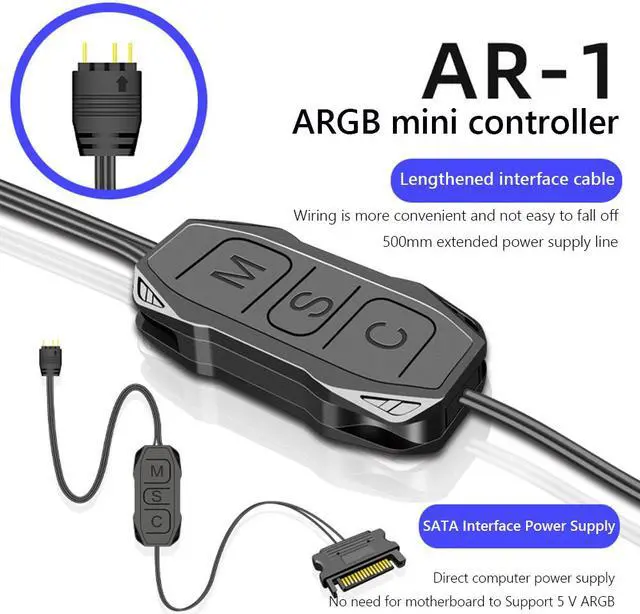

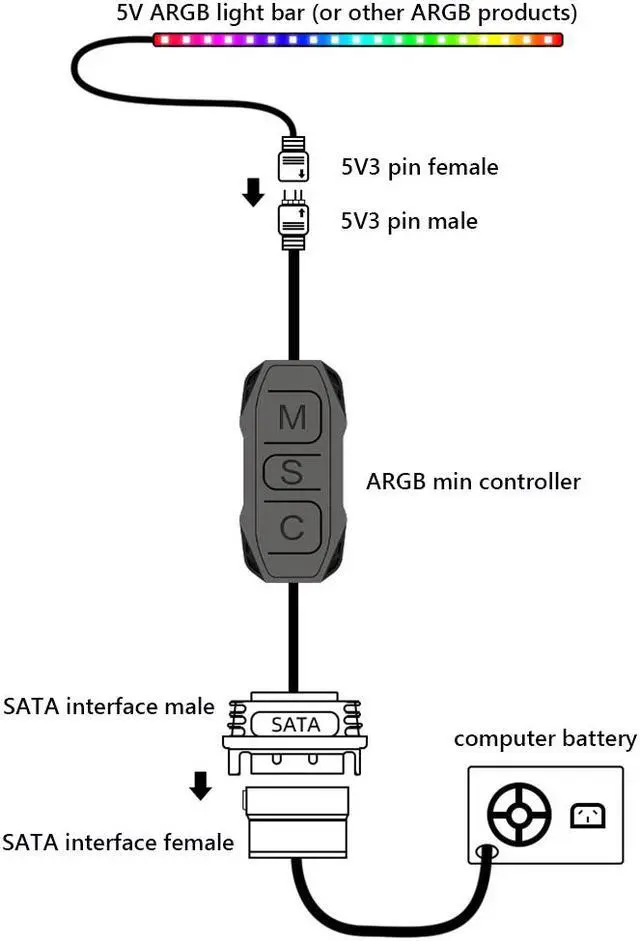

If the buyer's motherboard does not support 5V ARGB, this controller can be used to realize dimming. It does not need motherboard support. It only needs to connect the computer power SATA interface. Through the built-in lighting mode of the controller, the lighting control of 5V 3-pin ARGB products can be realized. Multiple 5V ARGB products can be inserted at the end after being connected in series to realize the lighting control of multiple 5V ARGB products.

Note: this controller does not support connecting the motherboard software to control the light synchronization; This controller is not a general controller and only supports the use of products of this brand. If it is inserted into the product line sequence of other brands, it will burn out!


Specification:
Light strip material: ABS + magnet
Number of lamp beads: 24
Light bar interface type: 5V 4pin * 2+small 4pin * 1
Light bar interface type: 5V ARGB
Controller interface type: SATA, 3pin

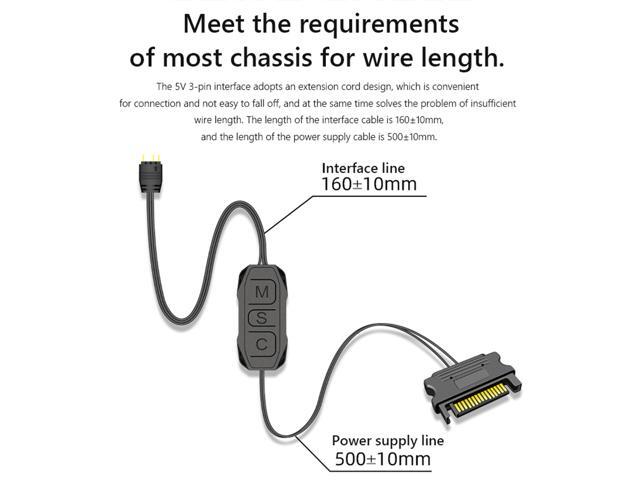

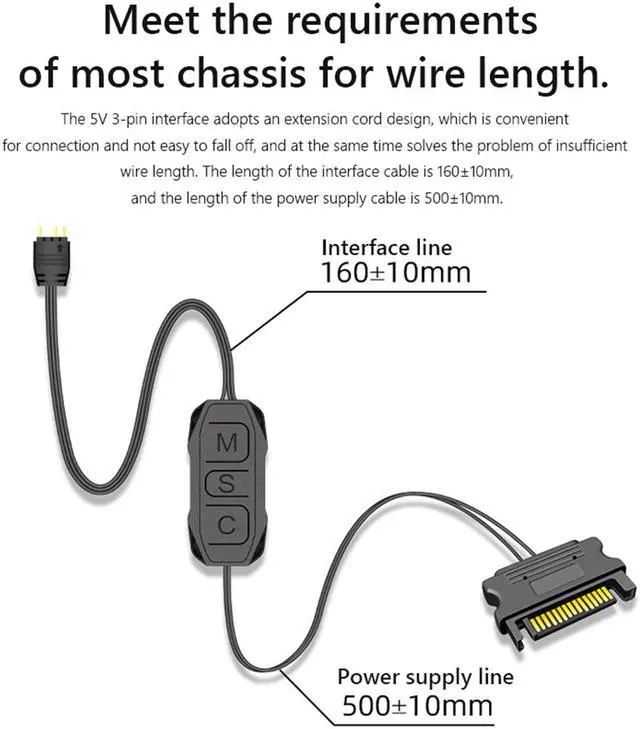

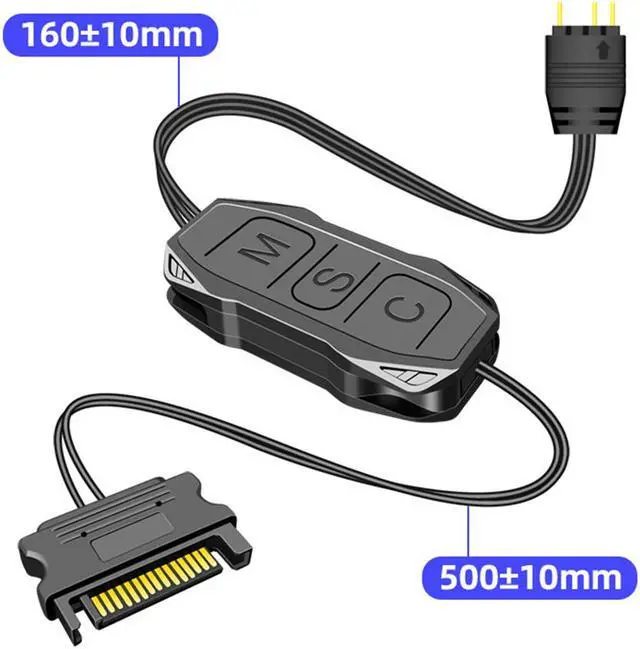

Controller wire length: 3pin: 160 (±10) mm/6.3(±0.39)in; SATA;500(±10)mm/19.7(±0.39)in

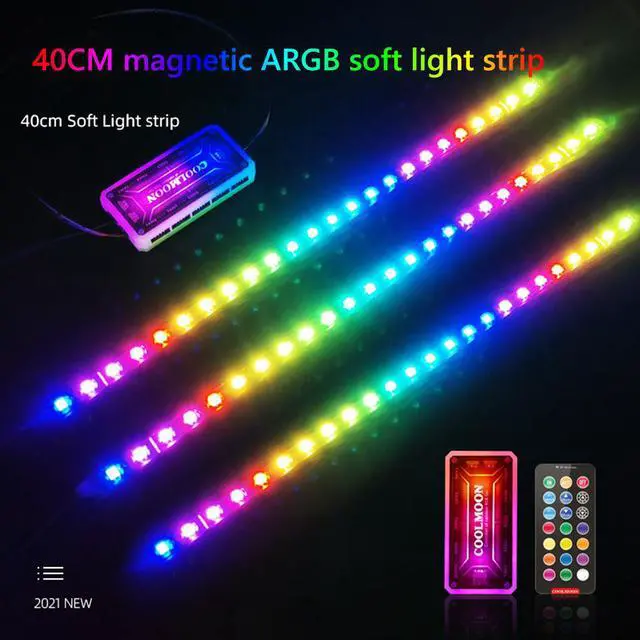

Length of light strip: About 40cm.
Lamp strip size: 400 * 10 * 3mm/15.7x0.39x0.12in
Light strip weight: 20g
Controller weight: 20g
Controller size: 46x22x9.5mm/1.8x0.87x0.37in

Controller usage:

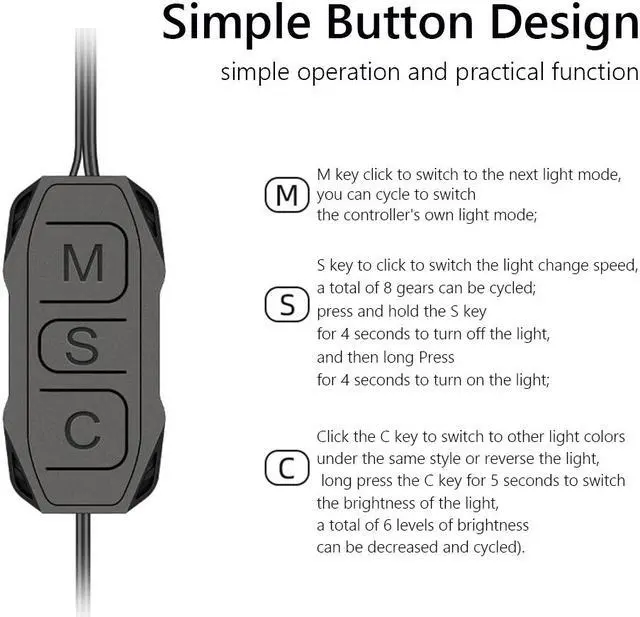

Click M to switch to the next lighting mode, which can cycle to switch the controller's own lighting mode; Click S to switch the light change speed. There are 8 gears that can be switched circularly; Long press the S key for 4 seconds to turn off the light, and then long press for 4 seconds to turn on the light; Click the C key to switch to other light colors under the same pattern or the light is reversed. Long press the C key for 5 seconds to switch the light brightness. The brightness of 6 gears in total can be reduced (cycle switching).

Note:
AURASYNC of 12V 4-pin motherboard is not supported
Be sure to disconnect the power and plug the cable, otherwise the wrong interface will cause short circuit and burn the equipment!


Packing List:
1 x ARGB Light Bar/Controller
