Noctua NA-SC1 Sx2, 3-Way Fan Splitter Cables, 4-Pin PWM (2-pack, 13cm, Black)
- Triple-splitter cables for powering and speed-controlling three fans through a single header on your PC motherboard or other power sources (e.g. NV-PS1 power supply combined with NA-FC1 controller)
- RPM speed signal of one fan (output connector 1) is transferred back to the motherboard or fan controller for speed monitoring, PWM signal for speed control is transferred to all three outputs
- Works with Noctua 5V, 12V and 24V fans; 4-pin plugs supports both 3-pin and 4-pin fans (PWM-based speed control only with 4-pin PWM fans, 3-pin fans can be voltage-controlled)
- Set of 2, both 1-to-3 splitter cables can be combined to connect a total of five fans to a single header (verify not to exceed the maximum current rating for motherboard fan headers!) or PSU
- Trusted Noctua quality with black fibreglass silicone sleeving that is highly resistant against mechanical wear, heat and flames (up to 200°C, UL 1441 certified), safe for use in various environments
+
+
Overview
Specs
Reviews (1)

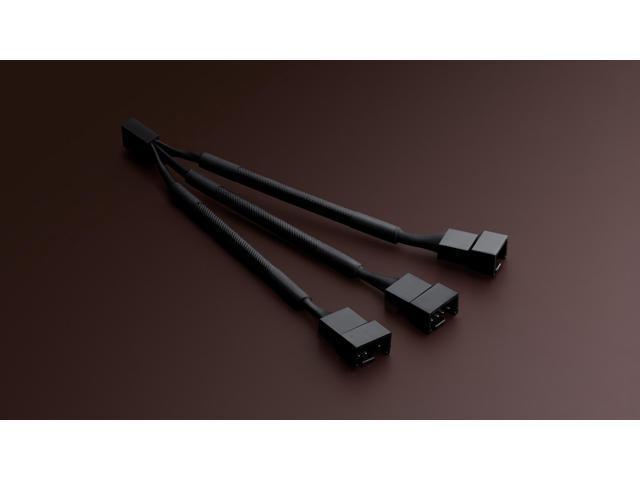

The NA-SC1 Sx2 is a set of two NA-SC1 3-way fan splitter cables that make it possible to power and control three fans through one fan header. By connecting the second triple splitter cable to the first, a total of five fans can be powered and controlled simultaneously. The NA-SC1 cables also feed the RPM signal of the fan on the first output connector back to the input connector so that PC motherboards or other fan controllers can read out the fan speed. The NA-SC1s 4-pin connectors are keyed to prevent misalignment and compatible with both 4-pin PWM and 3-pin fans.
While 4-pin fans can be controlled through PWM, the speed of 3-pin fans can be adjusted using voltage control. Thanks to the high-quality black fibreglass silicone sleeving, the NA-SC1 cables are ideal both for use in PCs and for home or multi-purpose ventilation applications.
Caution: Some PC motherboard fan headers only support up to 1A/12W (check your motherboard manual). When using the NA-SC1 cables in PC environments, make sure that the combined current/power draw of the connected fans does not exceed this value!
While 4-pin fans can be controlled through PWM, the speed of 3-pin fans can be adjusted using voltage control. Thanks to the high-quality black fibreglass silicone sleeving, the NA-SC1 cables are ideal both for use in PCs and for home or multi-purpose ventilation applications.
Caution: Some PC motherboard fan headers only support up to 1A/12W (check your motherboard manual). When using the NA-SC1 cables in PC environments, make sure that the combined current/power draw of the connected fans does not exceed this value!
