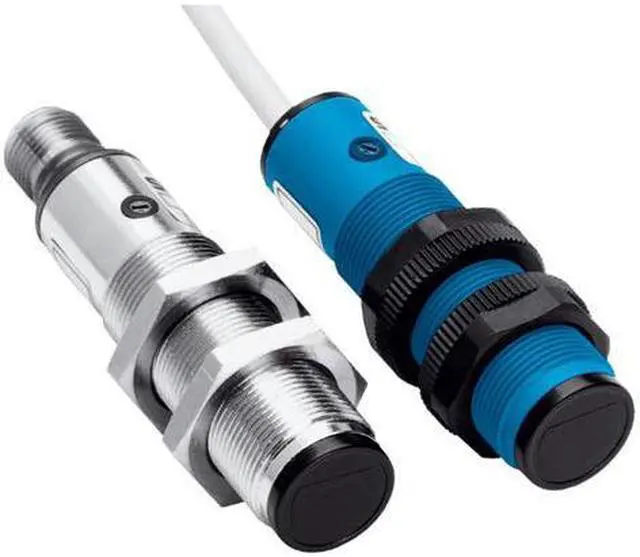

SICK VTE18-3P8212 Photoelectric proximity sensor ,PNP,New
- SICK VTE18-3P8212 Photoelectric proximity sensor ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES Sensor/ detection principle Photoelectric proximity sensor Dimensions (W x H x D) 63.6 mm Housing design (light emission) Cylindrical, straight Sensing range max. 10 mm... 800 mm 1) Sensing range 10 mm... 700 mm 1) Type of light Infrared light Light source LED Angle of dispersion 2.8 ° Adjustment Potentiometer MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC Ripple = 10 % Power consumption = 30 mA 1) Switching output PNP Switching mode Dark switching Response time = 2 ms 2) Connection type Cable, 2 m 3) Cable material PVC Conductor cross-section 0.14 mm² Cable diameter Ø 3.1 mm Housing material Metal, Brass nickel-plated, plastic Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C.
.. +70 °C Ambient storage temperature –25 °C... +70 °C UL File No. NMFT2. E175606
.. +70 °C Ambient storage temperature –25 °C... +70 °C UL File No. NMFT2. E175606
