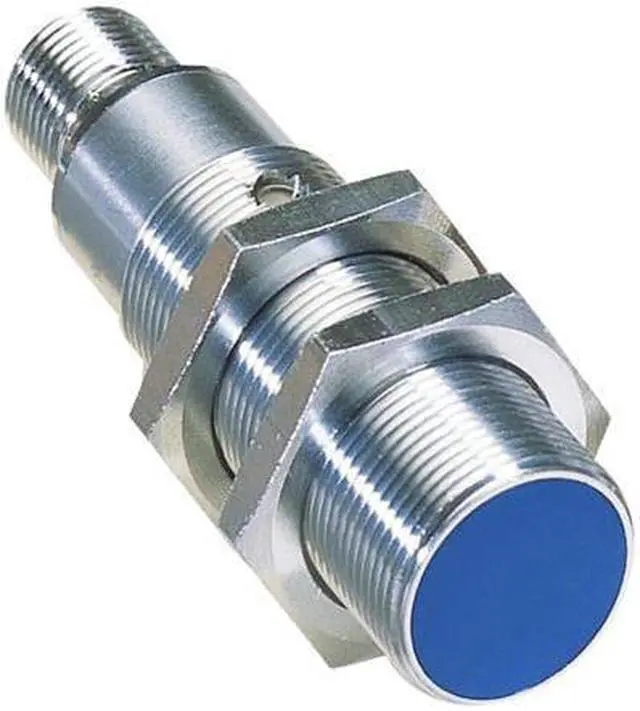

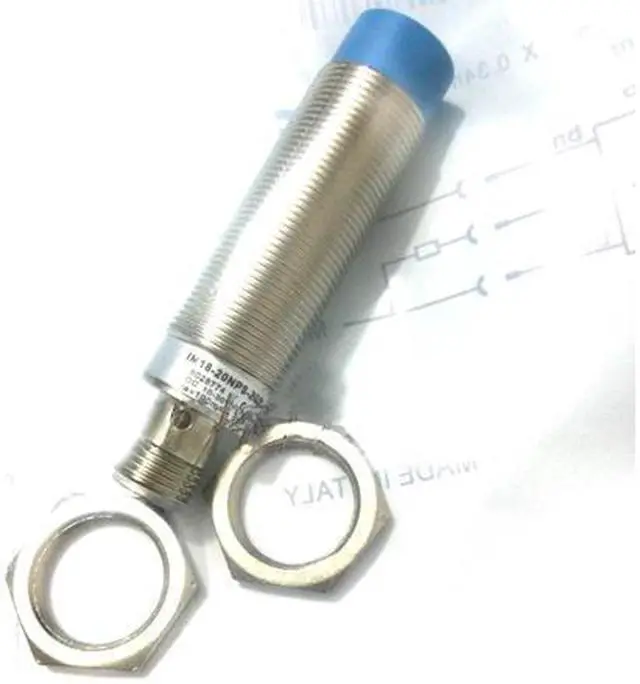

SICK IM18-20NPS-ZC1 Inductive proximity sensors New

Features Housing Cylindrical thread design Housing Standard Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 20 mm Safe sensing range Sa 16.2 mm Installation type Non-flush Switching frequency 200 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 1) Special features Triple sensing range Supply voltage 10 V DC... 30 V DC Ripple = 20 % 1) Voltage drop = 2 V 2) Current consumption 10 mA 3) Time delay before availability = 100 ms Hysteresis 1 %...

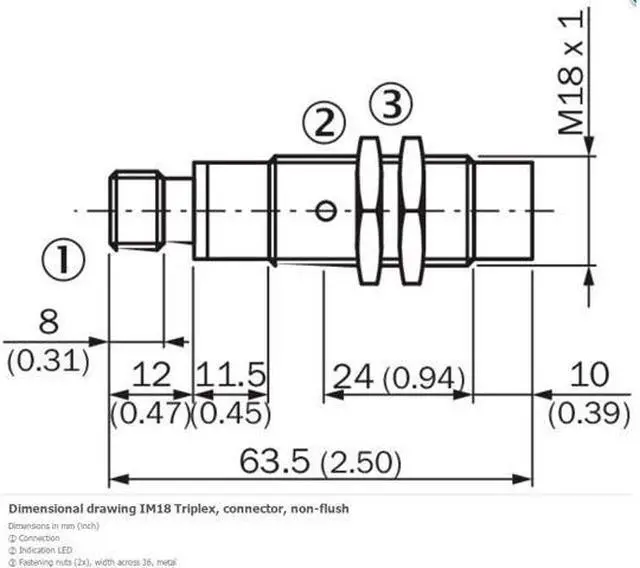

15 % Reproducibility = 5 % 4) 5) Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia = 200 mA Short-circuit protection? Reverse polarity protection? Power-up pulse protection? Shock and vibration resistance 30 g, 11 ms / 10... 55 Hz, 1 mm Ambient operating temperature –25 °C... +70 °C Housing material Metal, Chrome-plated brass Sensing face material Plastic, Plastic Housing length 63.5 mm Thread length 32 mm Tightening torque, max. 25 Nm
