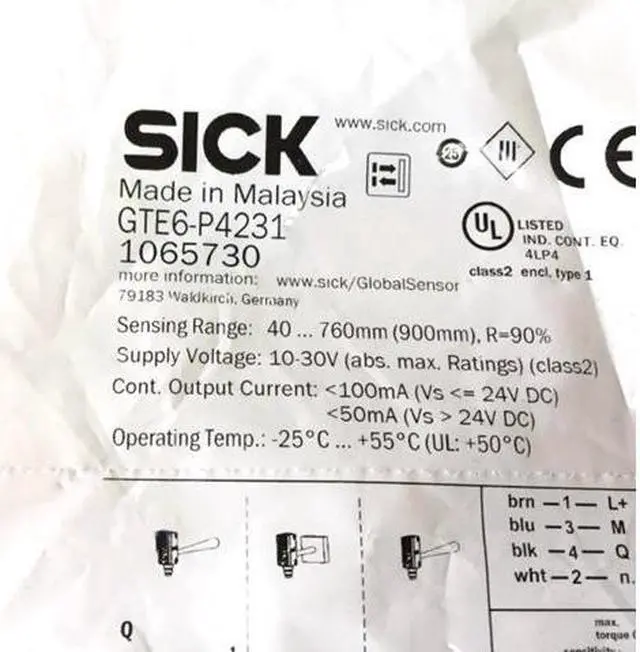

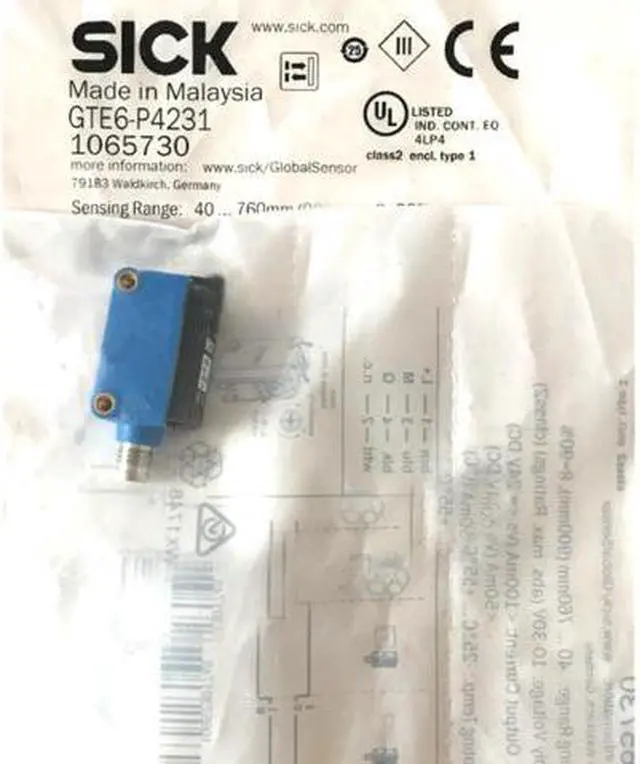

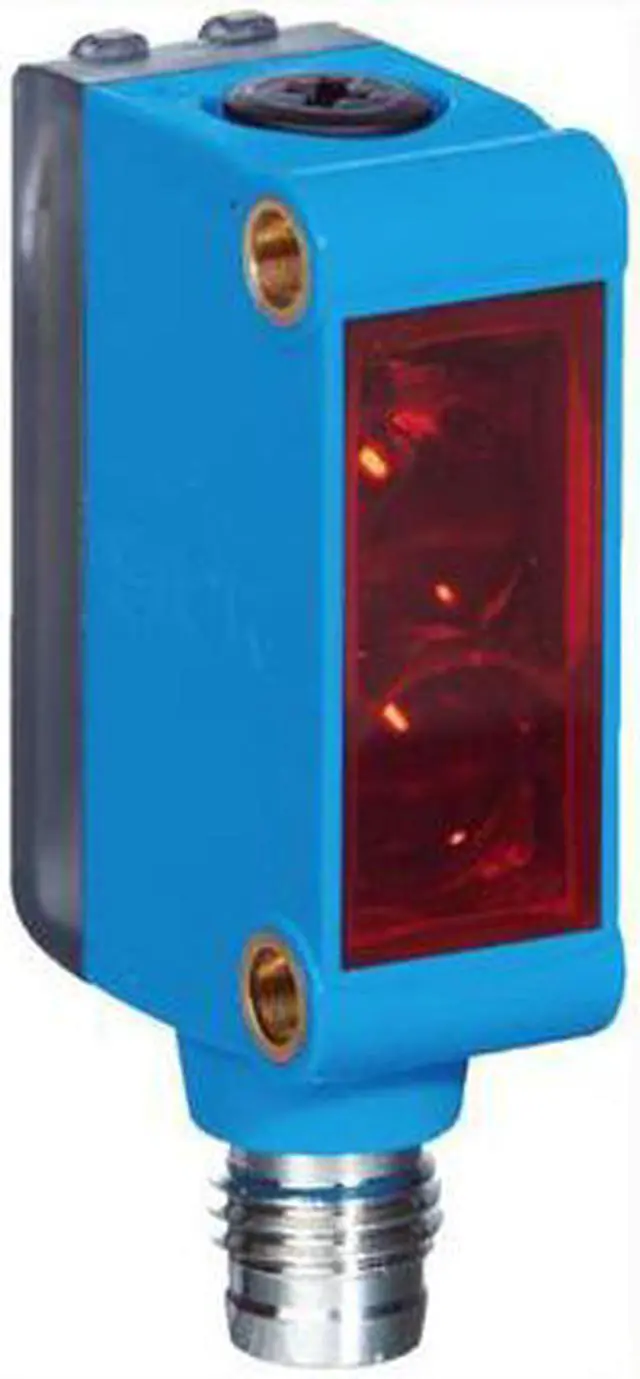

SICK GTE6-P4231 Miniature Photoelectric Sensors,PNP,New

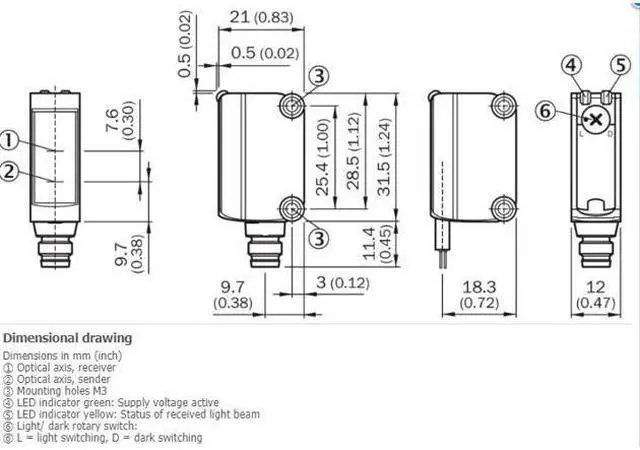

SICK GTE6-P4231 Miniature Photoelectric Sensors, PNP, New FEATURES Sensor/ detection principle Photoelectric proximity sensor, energetic Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm Housing design (light emission) Rectangular Sensing range max. = 900 mm Sensing range = 760 mm Type of light Visible red light Light source PinPoint LED Light spot size (distance) Ø 5 mm (150 mm) Wave length 650 nm Adjustment Mechanical spindle, 5 turns MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple ± 10 % 2) Power consumption 30 mA 3) Switching output PNP Switching mode Light/dark switching Switching mode selector Selectable via light/dark selector Signal voltage PNP HIGH/LOW VS - (= 3 V) / approx.

0 V Output current Imax. = 100 mA 4) Response time 1.25 ms 5) Switching frequency ± 500 Hz 6) Connection type Male connector M8, 4-pin Circuit protection A 7) B 8) D 9) Protection class III Weight 20 g Housing material Plastic, ABS/PC Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +55 °C 10) Ambient storage temperature –40 °C... +70 °C
