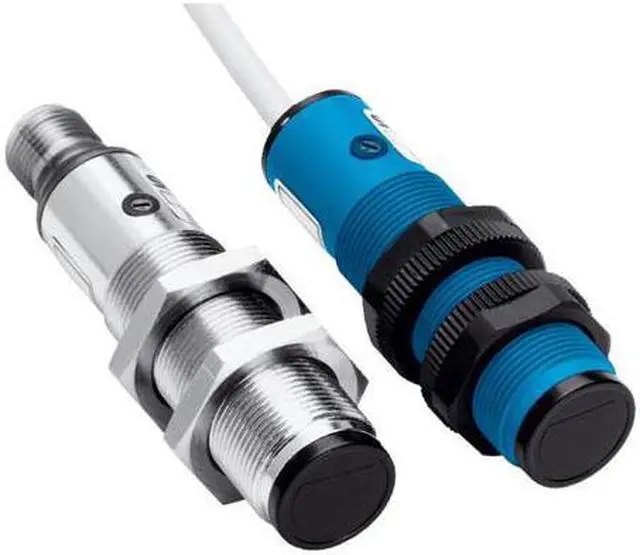

SICK VTE18-3P4340 Photoelectric proximity sensor ,PNP,New
- SICK VTE18-3P4340 Photoelectric proximity sensor ,PNP,New
+
+
Overview
Specs
Reviews

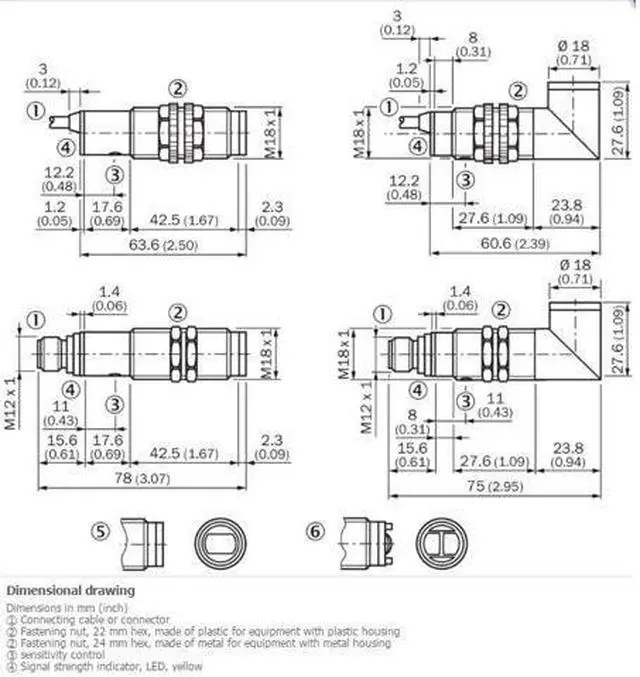

FEATURES Sensor/ detection principle Photoelectric proximity sensor Dimensions (W x H x D) 75 mm Housing design (light emission) Cylindrical, angled Sensing range max. 5 mm... 400 mm 1) Sensing range 5 mm... 350 mm 1) Type of light Infrared light Light source LED Angle of dispersion 2.8 ° Adjustment Potentiometer MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC Ripple = 10 % Power consumption = 30 mA 1) Switching output PNP Switching mode Dark switching Response time = 2 ms 2) Connection type Male connector M12, 4-pin Housing material Metal, Brass nickel-plated, plastic Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C.
.. +70 °C Ambient storage temperature –25 °C... +70 °C
.. +70 °C Ambient storage temperature –25 °C... +70 °C
