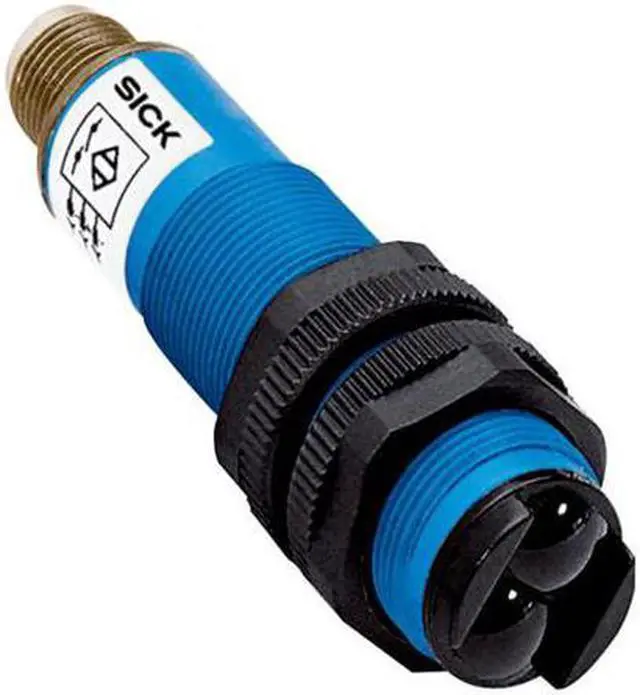

SICK VTE18-3E8612 Photoelectric proximity sensor,PNP,New
- SICK VTE18-3E8612 Photoelectric proximity sensor,PNP,New
+
+
Overview
Specs
Reviews
FEATURES Sensor/ detection principle Photoelectric proximity sensor, energetic Housing design (light emission) Cylindrical Housing length 63.6 mm Thread diameter (housing) M18 x 1 Optical axis Axial Sensing range max. 10 mm... 800 mm 1) Sensing range 10 mm... 700 mm Type of light Infrared light Light source LED 2) Light spot size (distance) Ø 40 mm (800 mm) Angle of dispersion Approx. 2.8 ° Adjustment None MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple = 10 % 2) Power consumption 30 mA 3) Switching output PNP Switching mode Light switching Output current Imax.
100 mA Response time = 2 ms 4) Switching frequency 250 Hz 5) Connection type Cable, 3-wire, 2 m 6) Cable material PVC Conductor cross-section 0.14 mm² Cable diameter Ø 3.1 mm Circuit protection A 7) B 8) C 9) D 10) Protection class III Weight 100 g Housing material Plastic, PBT/PC Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +70 °C UL File No. NMFT2. E175606
100 mA Response time = 2 ms 4) Switching frequency 250 Hz 5) Connection type Cable, 3-wire, 2 m 6) Cable material PVC Conductor cross-section 0.14 mm² Cable diameter Ø 3.1 mm Circuit protection A 7) B 8) C 9) D 10) Protection class III Weight 100 g Housing material Plastic, PBT/PC Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +70 °C UL File No. NMFT2. E175606
