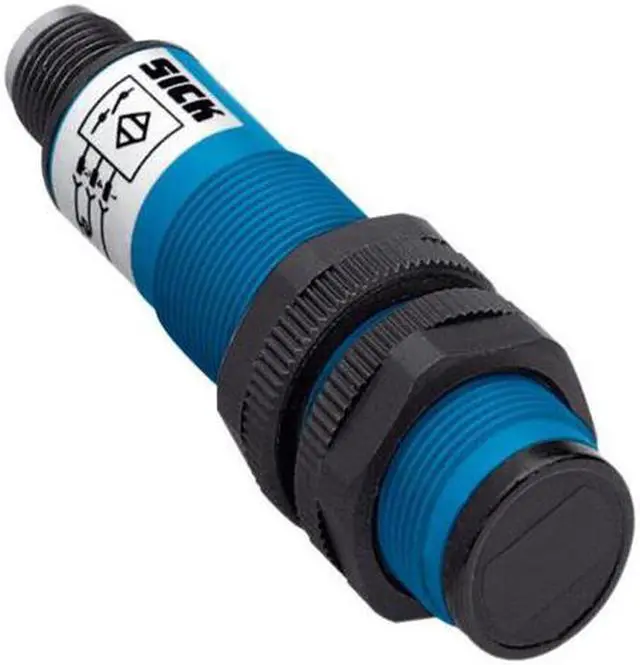

SICK VL18-2T2132 Photoelectric retro-reflective sensor ,New

Shop All Sick Products | Visit B-IN Electronics Store

SICK VL18-2T2132 Photoelectric retro-reflective sensor ,New

SICK VL18-2T2132 Photoelectric retro-reflective sensor ,New

Overview

Specs

Reviews

FEATURES Sensor/ detection principle Photoelectric retro-reflective sensor Housing design (light emission) Cylindrical Housing length 88 mm Thread diameter (housing) M18 x 1 Optical axis Axial Sensing range max. 0.005 m... 5 m 1) Sensing range 0.01 m... 4 m 1) Type of light Infrared light Light source LED 2) Light spot size (distance) Ø 30 mm (3 m) Angle of dispersion 6° Adjustment None MECHANICS/ELECTRONICS Supply voltage 20 V AC... 253 V AC 1) Mains frequency 50 Hz, 60 Hz Power consumption 30 mA 2) Switching output TRIAC Switching mode Dark switching Output current Imax.

300 mA 3) Response time = 20 ms 4) Switching frequency 25 Hz 5) Connection type Cable, 3-wire, 2 m 6) Cable material PVC Conductor cross-section 0.34 mm² Cable diameter Ø 4.7 mm Circuit protection C 7) Protection class III Weight 95 g Housing material Plastic, PBT/PC Optics material Plastic, PMMA Enclosure rating IP67 Ambient operating temperature –25 °C... +60 °C UL File No. NMFT2. E175606

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 15 days
Return for replacement within: 30 days
This item is covered by B-IN Electronics Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Item#: 9SIBKNJK8F9946
