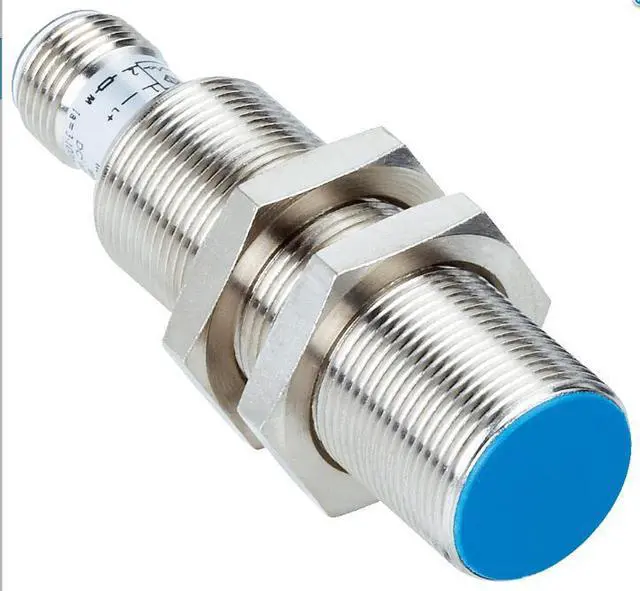

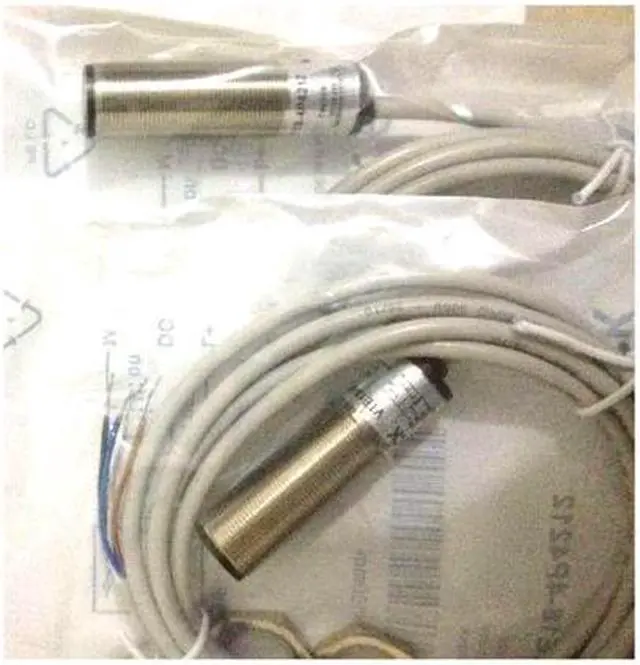

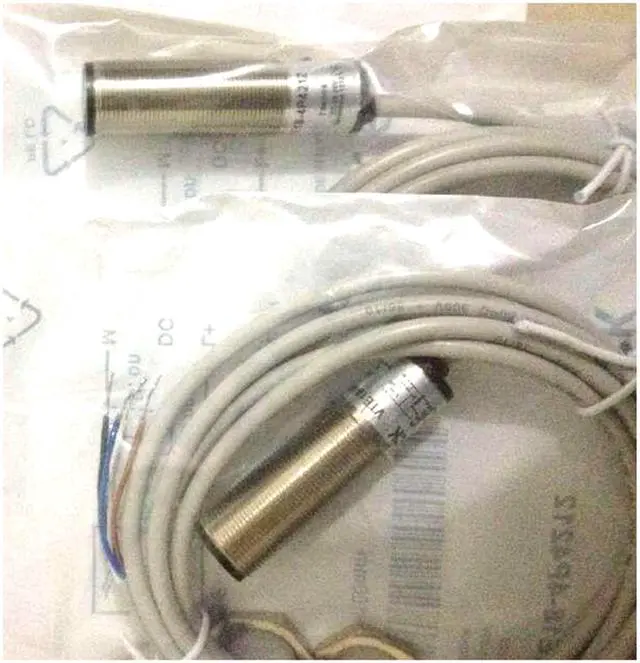

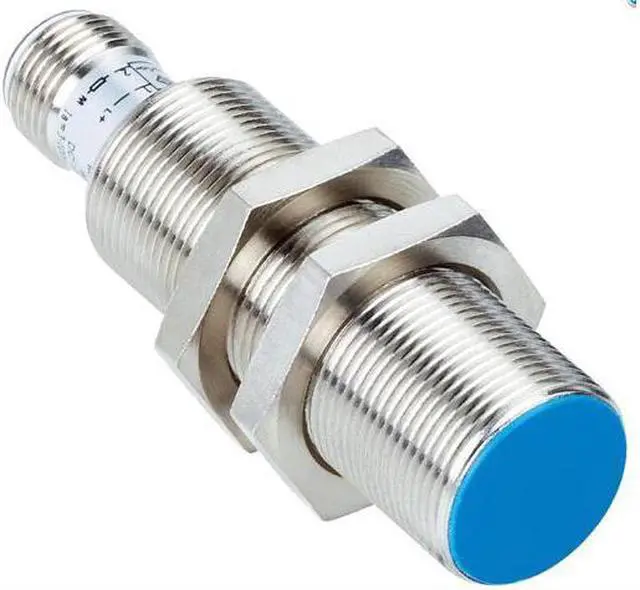

SICK IM18-08NUO-ZU0 Inductive proximity sensors New

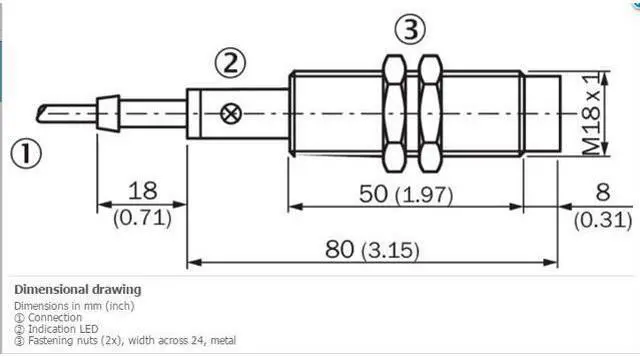

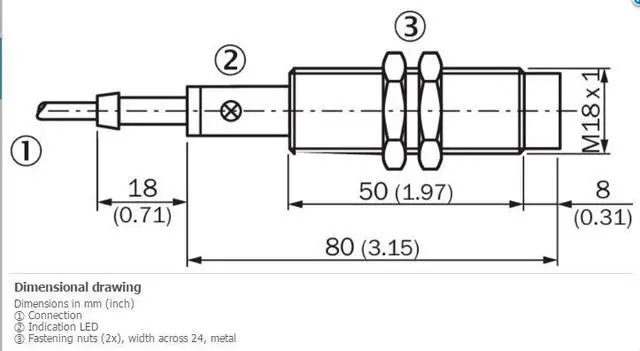

Features Housing Cylindrical thread design Housing Standard Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 8 mm Safe sensing range Sa 6.48 mm Installation type Non-flush Switching frequency 25 Hz 1) 100 Hz 2) Connection type Cable, 2-wire, 2 m Output function NC Electrical wiring AC/DC 2-wire Enclosure rating IP67 3) MECHANICS/ELECTRONICS Mechanics/electronics Supply voltage 20 V AC/DC... 250 V AC/DC Voltage drop = 6.5 V AC, = 6 V DC Time delay before availability = 8 ms Hysteresis 1 %... 15 % Reproducibility = 10 % 1) 2) 3) Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 As per EN 55011, class B Continuous current Ia = 350 mA 4) = 250 mA 5) = 100 mA 6) Off-state current = 2.5 mA (AC 250 V) = 1.3 mA (AC 110 V) = 0.8 mA (DC 24 V) Minimum load current = 5 mA Short-time withstand current 2.2 A 7) Cable material PUR Conductor size 0.5 mm² Short-circuit protection – 8) Power-up pulse protection? Shock and vibration resistance 30 g, 11 ms / 10.

.. 55 Hz, 1 mm Ambient operating temperature –25 °C... +80 °C Housing material Metal, Nickel-plated brass Sensing face material Plastic, Plastic Housing length 80 mm Thread length 50 mm Tightening torque, max. = 35 Nm Protection class II Rated insulation voltage Ui 250 V AC Usage category AC-140 9) DC-13 10) Contamination rating 3 Rated impulse withstand voltage 4 kV
