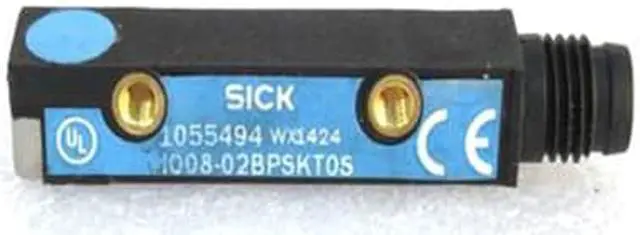

SICK IQ08-02BPSKTOS Inductive proximity sensors ,PNP,New
- SICK IQ08-02BPSKTOS Inductive proximity sensors ,PNP,New
+
+
Overview
Specs
Reviews

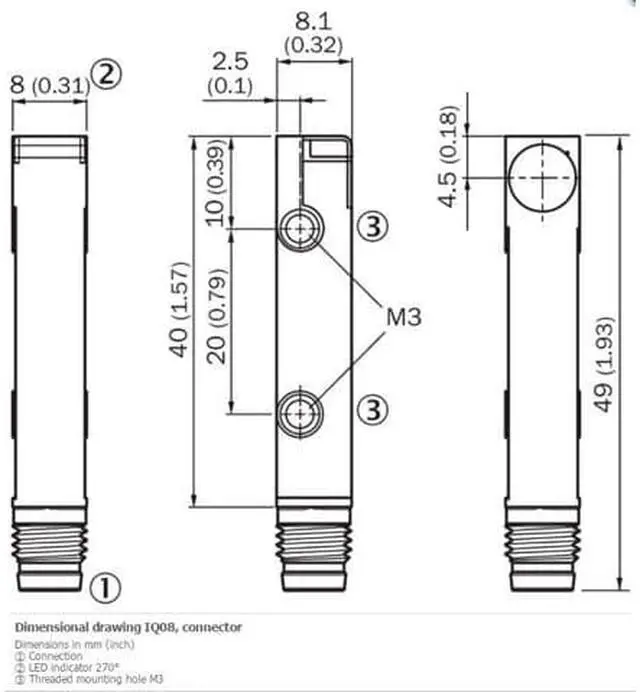

Features Housing Rectangular Dimensions (W x H x D) 8 mm x 40 mm x 8 mm Sensing range Sn 2 mm Safe sensing range Sa 1.62 mm Installation type Flush Switching frequency 2, 000 Hz Connection type Connector M8, 3-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67, IP68 1) MECHANICS/ELECTRONICS Mechanics/electronics Supply voltage 10 V DC... 30 V DC Ripple = 10 % 1) Voltage drop = 2 V 2) Current consumption 10 mA 3) Time delay before availability = 100 ms Hysteresis 5 %... 15 % Reproducibility = 2 % 4) Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia = 200 mA Short-circuit protection? Reverse polarity protection? Power-up pulse protection? Shock and vibration resistance 30 g, 11 ms / 10.
.. 55 Hz, 1 mm Ambient operating temperature –25 °C... +75 °C Housing material Plastic, VISTAL® Sensing face material Plastic, VISTAL® Tightening torque, max. = 1.5 Nm UL File No. NRKH. E348498
.. 55 Hz, 1 mm Ambient operating temperature –25 °C... +75 °C Housing material Plastic, VISTAL® Sensing face material Plastic, VISTAL® Tightening torque, max. = 1.5 Nm UL File No. NRKH. E348498
