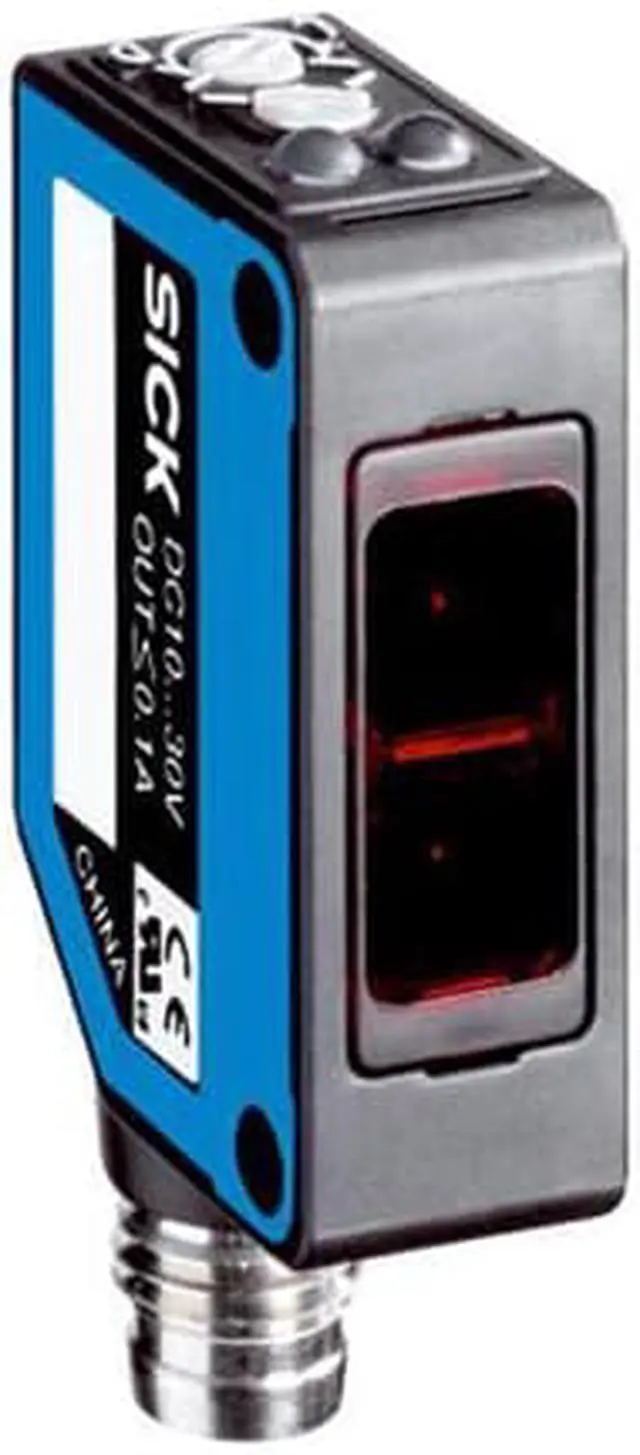

SICK WT100-N3410 Photoelectric proximity sensor ,NPN New

Shop All Sick Products | Visit B-IN Electronics Store

SICK WT100-N3410 Photoelectric proximity sensor ,NPN New

SICK WT100-N3410 Photoelectric proximity sensor ,NPN New

Overview

Specs

Reviews

FEATURES Sensor/ detection principle Photoelectric proximity sensor, Background blanking Dimensions (W x H x D) 11 mm x 31 mm x 20 mm Housing design (light emission) Rectangular Sensing range max. 4 mm... 140 mm 1) Sensing range 10 mm... 100 mm Type of light Visible red light Light source LED 2) Light spot size (distance) Ø 8 mm (90 mm) Wave length 680 nm Adjustment Potentiometer, 270° MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple ± 10 % 2) Power consumption 30 mA 3) Switching output NPN Switching mode Light/dark switching Switching mode selector Selectable via light/dark rotary switch Signal voltage NPN HIGH/LOW Approx.

VS / < 1.8 V Output current Imax. = 100 mA Response time = 0.5 ms 4) Switching frequency 1, 000 Hz 5) Connection type Connector M8, 3-pin Circuit protection A 6) B 7) D 8) Weight 9 g Housing material Plastic, ABS/PC/POM Optics material Plastic, PMMA Enclosure rating IP65 Ambient operating temperature –25 °C... +55 °C Ambient storage temperature –40 °C... +70 °C
