For Switch Pro Game Controller

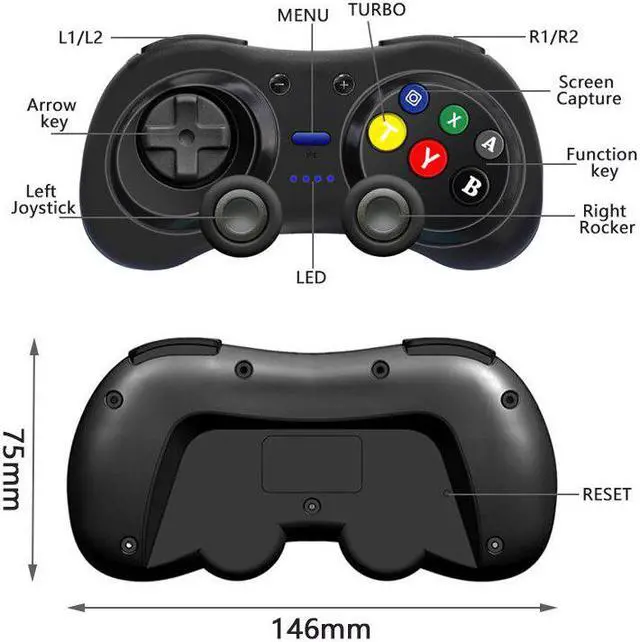

Controller Diagram
1. Controller Features

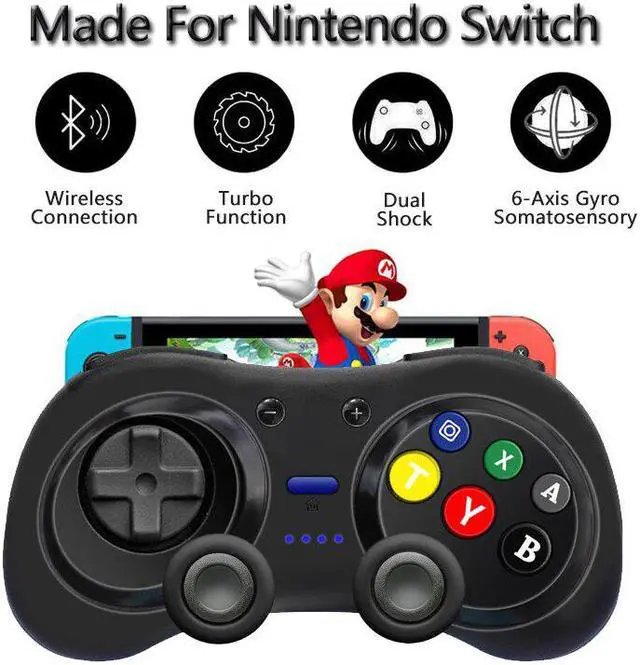

1) The Pro controller is compatible with the Switch console and also supports devices such as Windows PCs and Raspberry Pi Steam.
2) connection, lower interference, stable connecting signal.
3) One-key connecting mode for ease of handling.

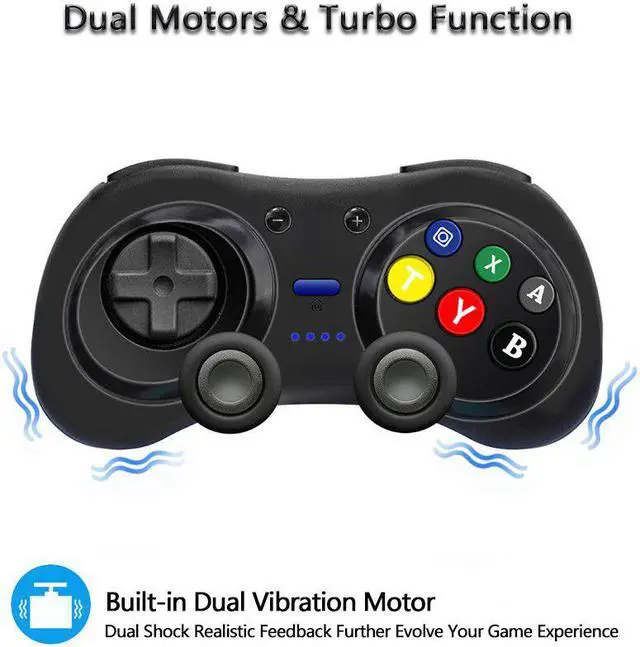

4) It supports motion sensing function via built-in Gyro; supports double-shock function via built-in dual motors; supports TURBO function.
5) Up to four Pro controllers can be connected to a Switch console simultaneously.

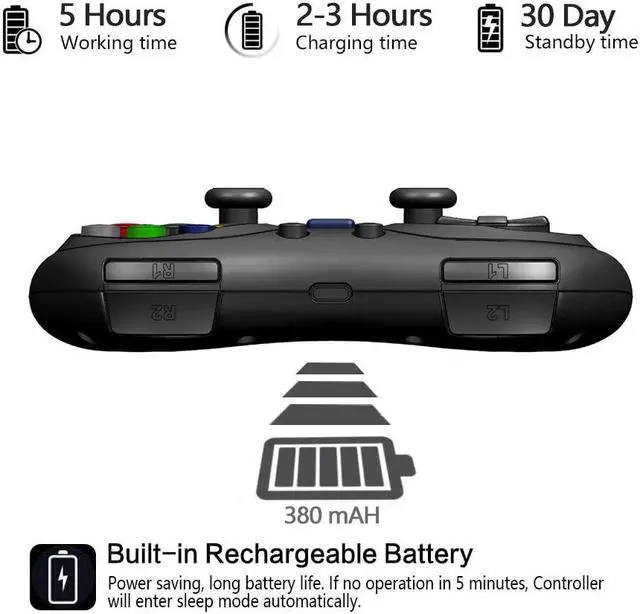

6) It can be used normally even during charging.
7)It can be upgraded by update software via connecting it to PC.
2. Key brief Introduction
1) HOME key: Power controller on or execute commands from Switch console.
2) D-Pad: Up, down, left and right. It can be easily operated on eight directions.
3) Function control keys: A, B, X, Y. Perfect key design, sensitive and quick for finger operation.
4) Left stick and Right stick: Neoteric 3D stick can be operated precisely on 360° all-round.
5) Functional keys: L1, R1, L2, R2. Trigger and shoulder keys perform quick response function.
6) Screenshot key: Take screenshot and store.
7) TURBO key: First press and hold any key of the function keys (A/B/X/Y/L1/R1/L2/R2) then press "TURBO" key once to repeat and accelerate action in a game. Press "TURBO" key once again to cancel the repeating and accelerating function.
8) Reset key: Short press this key in "RESET" hole to disconnect controller from console and reset the controller.
3. Connection Instruction
1) Connecting to Switch Console via
Operating current:20-30mA
