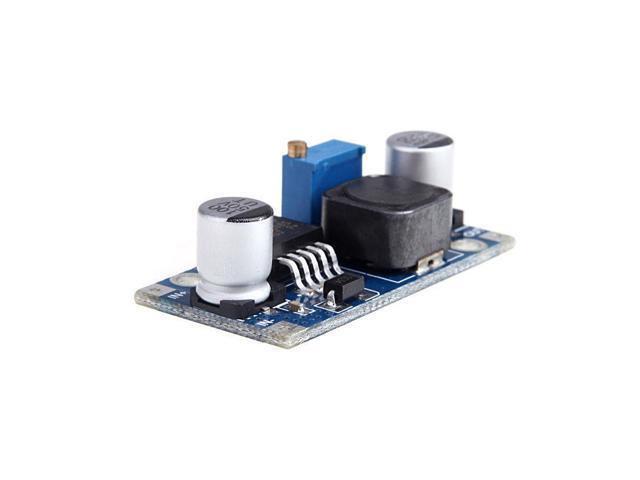

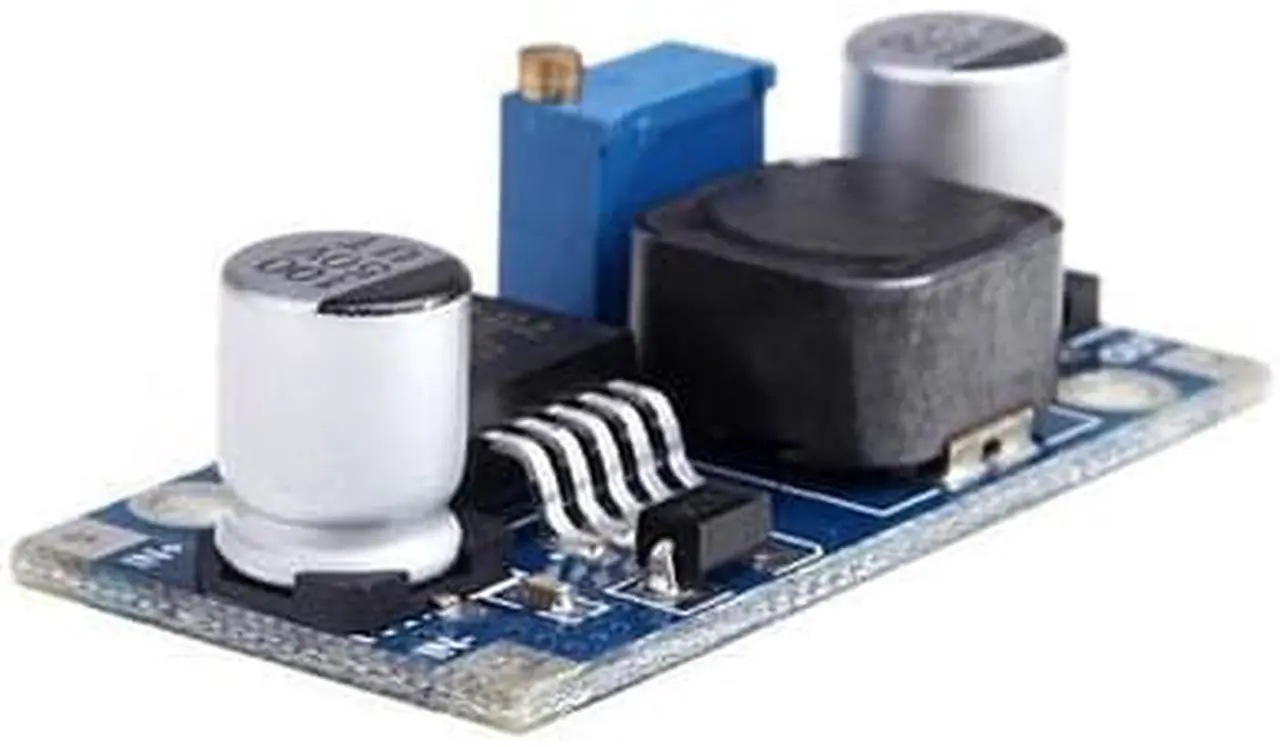

    10pcs Step Down Power Supply Module DC-DC LM2596S Input 3.2V-40V Output 1.25V-35V

    • Step Down Voltage Converter
    • DC 3.2V-40V to DC 1.25V-35V
    +
    +
    Overview
    Specs
    Reviews

    Notice:

    • If the output power more than 10w, an extra heat sink is needed! (not included in the package)
    • Step Down module: the input voltage must be higher than the output voltage.


    Description:

    • Conversion efficiency: Up to 92% (the higher the output voltage, the higher the efficiency)
    • Potentiometer adjustment direction: Clockwise (increase), Anti-clockwise (decrease)
    • Switching frequency: 150KHz
    • Rectifier: Non-synchronous rectification
    • Module properties: Non-isolated step-down module
    • Short circuit protection: Current limiting, self-recovery
    • Operating temperature: Industrial grade (-40 to +85 degrees Celsius) (output power 10w or less)
    • Load regulation: +/- 0.5%
    • Voltage regulation: +/- 2.5%
    • Dynamic response speed: 5% 200uS
    • Connection mode: welded, plus pin can be directly soldered PCB

    Specifications:

    • Input voltage: 3.2-40V
    • Output voltage: 1.25-35V (adjustable)
    • Output current: Rated current is 2A, maximum 3A (if the output power more than 10w, an extra heat sink is needed.)
    • Item weight: 12g / 0.4oz


    Package Content:

    • 10pcs LM2596S DC-DC Step-down Module
