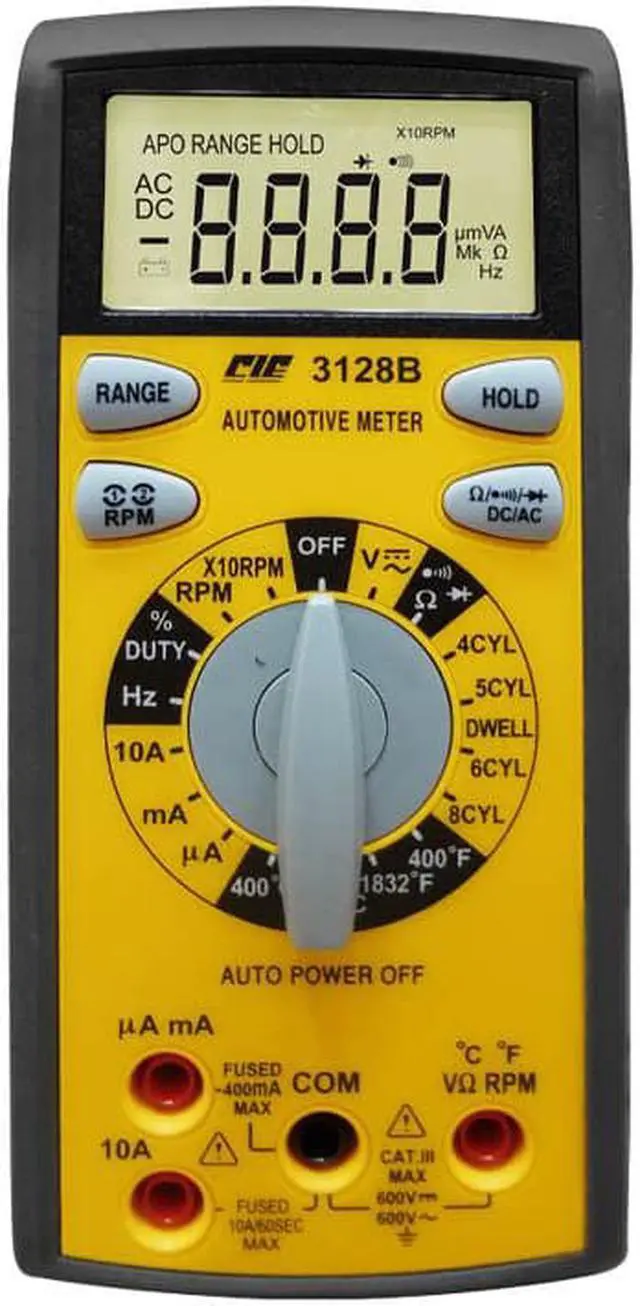

3128B - MULTIMETER DIGITAL AUTO 10A AUTOMOTIVE RPM DUTY CYCLE TEMP

4000 counts digital display
Auto ranging
Auto power off Overload protections
Safety input jacks Safety test leads
Safety: EN61010-1 CATIII 600V CE approved
Dimensions: 165mm(H)×78mm(W)×42.5mm(D)
Weight: Approx. 285g
RPM: 600 - 4000 4000 - 12000 ± 2.0%
Dwell Angle: 4 5 6 8 cylinders ± 2.0%
Duty cycle: 0 - 90% > 100s < 100ms ± 2.0%
DC Volts: 400mV 4V 40V 400V 600V ± 1.0%
AC Volts:400mV 4V 40V 400V 600V ± 2.0%(50- 500Hz)
DC Current: 400A 4000A 40mA 400mA 10A ± 2.0%
AC Current: 400A 4000A 40mA 400mA 10A ±2.5% (50 - 500Hz)
Resistance: 400 4k 40k 400k 4M 40M ± 1.5%
Frequency: 10 Hz- 400kHz ± 0.1%
Temperature: -20°C to 1000°C -4°F to 1832°F ± 2.0%
K-Type thermocouple
Diode TestContinuity TestData Hold
Resolution: 1RPM 0.1mV 0.1A 0.1 1Hz 0.1°C 0.1°F
