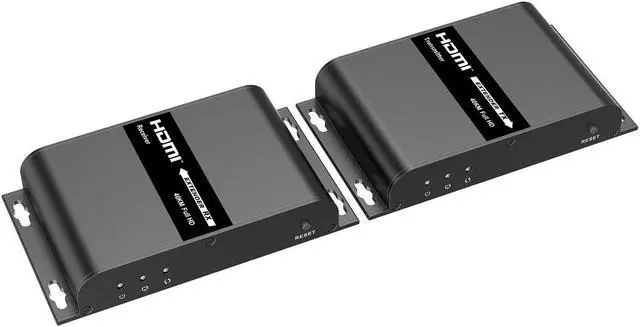

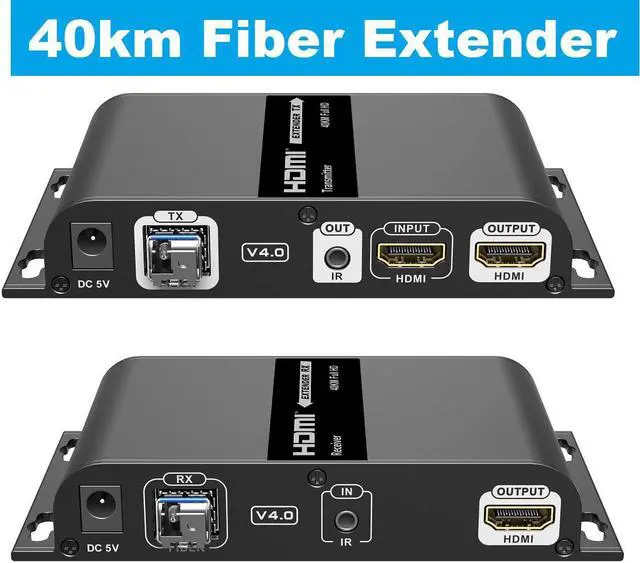

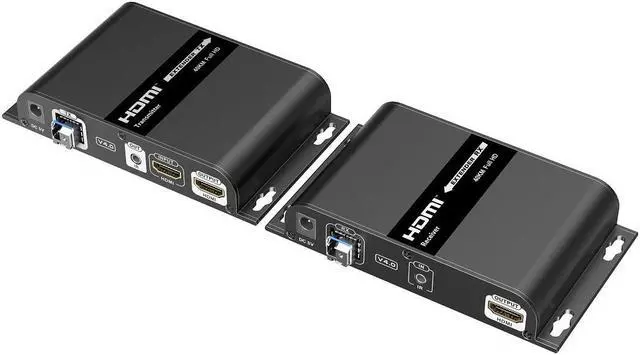

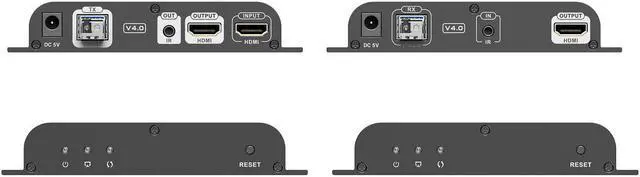

Up to 40Km, 1080P@60Hz HDMI Extender with Loop-out over Single-mode Optical Fiber SFP-GE-BIDI-40KM-T1550/R1310-LC SFP SMF Support IR Remote LKV378A-V4.0

LKV378A-V 4.0

40KM HDMI Optical Fiber Extender 1080p@60Hz

Important safety notice
1) Please pay attention to all the warnings and hints on this device.
2) Do not expose this unit to rain, moisture and liquid.
3) Do not repair or open this device without professional people's guidance.
4) Make sure good ventilation openings to avoid product overheating damage.
5) Shut off power and make sure environment is safe before installation.
6) Use DC5V only. Make sure the specification matched if using 3rdparty DC adapters.

Introduction
This fiber optic extender uses single-mode optic fiber (SMF) to transmit high-definition signals to a distance of 40km, and supports local loop-out and IR passback.

It can be widely used in security monitoring, medical systems, commercial display and other fields.

Features
1. Supports 1.25G bps single-mode optical fiber module with a maximum transmission distance of 40 km.
2. Supports resolution up to 1920x1080@60Hz.
3. Supports IR passback for remote control.
4. The transmitter supports HDMI-compatible loop-out for local monitoring.
5. Lightning Protection, Surge Protection, ESD Protection.
6. Wall Mounted design.
Package Included:
1 x HDMI-compatible V 4.0 Sender (Tx)
1 x HDMI-compatible V 4.0 Receiver (Rx)
2 x power supplier
1 x IR Blaster cable
1 x IR Receiver cable

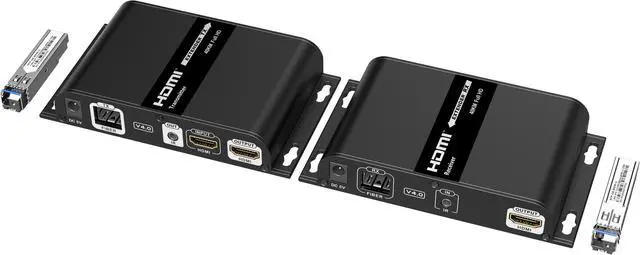

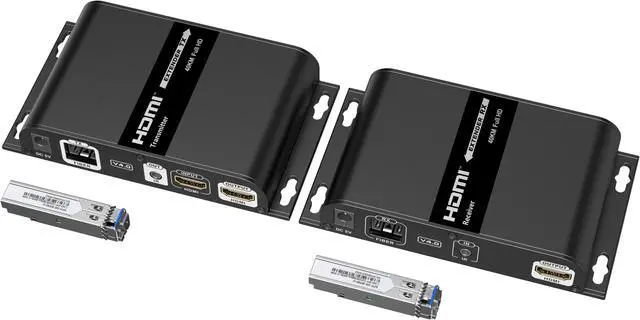

1 x SFP optical transceiver (T1550/R1310nm)
1 x SFP optical transceiver (T1310/R1550nm)
1 x User manual
