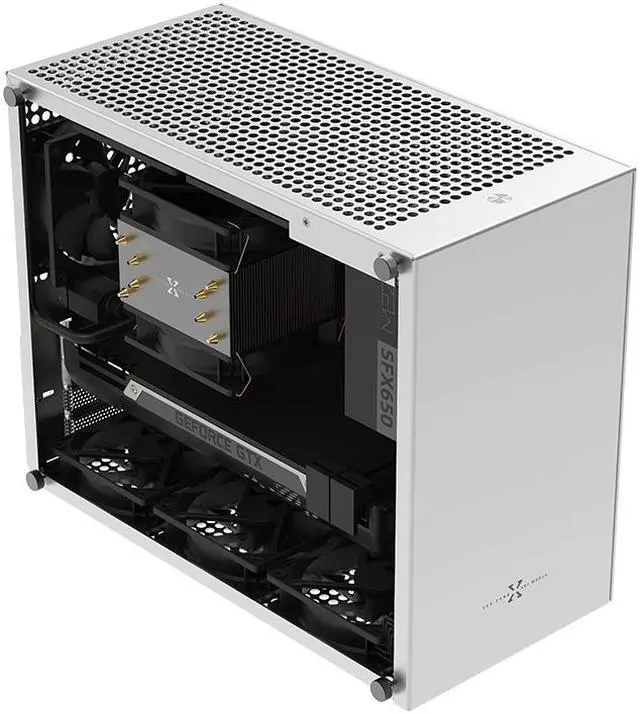

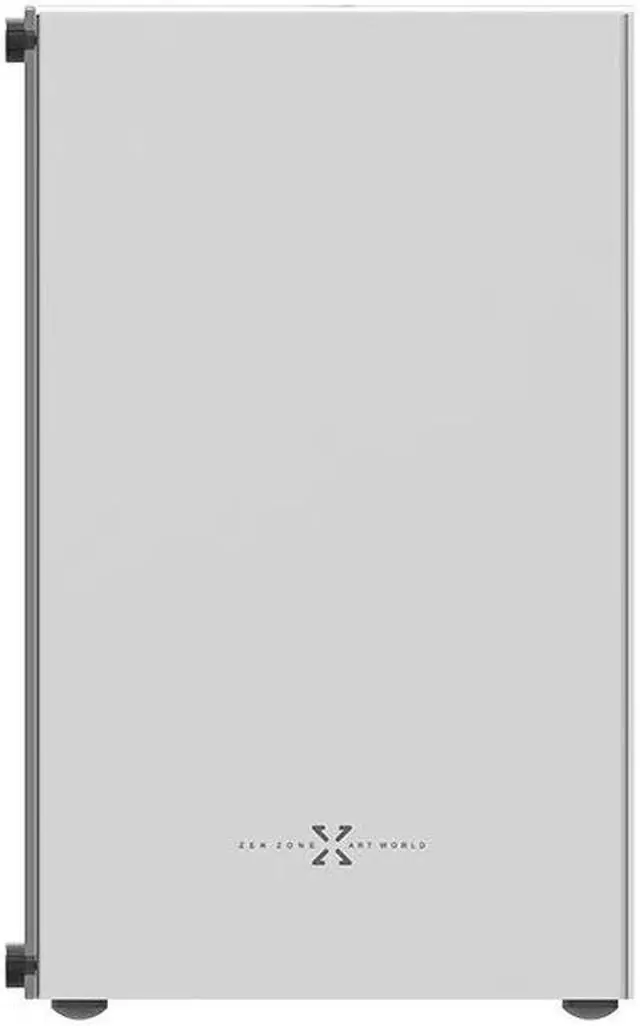

ZZAW C2 Aluminum Alloy Computer Case Support MATX Motherboard ATX SFX Power Supply Desktop PC Mini Micro Slim Portable 2021 Mid Tower Small Chassis with Tempered Glass for Gaming and Home Use

Case Parameters:
1.Case size: 326*161*262mm 12.83*6.34*10.31
2.Capacity: 13.8L 3.52LB
3.Material: Aluminum body + tempered glass side panel
4.Case Color: Anodized silver
5.Frame thickness: 2mm,other components thickness: 1.5mm, 2 Side panel thickness: 2mm
6.Front: 1*power switch (including power indicator)
7.Card slot: 4 slots
8.Net weight: about 1.6KG
9.Gross weight: 2.6KG(including package)
10.Package Size: 405*240*340mm

Hardware Support:
1.Support ATX, SFX and SFX-L power supply(built-in power extension cable)
--The length of ATX power supply suggested within 140mm and 160mm length ATX power supply is also available but it is easy to interfere or difficult to route
--If you use ATX power supply, the size limit of motherboard is 244 * 225mm(better use ITX Motherboard)
--If you use ATX power supply, the size of graphics card is recommended to be limited 245mm.
2.Support MATX, DTX and ITX motherboards, and the size limit is 244 * 244mm.
3.Support long graphics card within size of 323mm(including IO chip)* 139mm (including power supply wire) *60mm with thickness of 4 slots when installing fan and hard disk on the bottom
4. Air cooling: supports up to 6 Pcs 9025(9225) fans or 3Pcs 12025+1 Pcs 9025(9225) fan
On rear window: 1 Pcs 9025(9225)
At the top: 2Pcs 9025(9225) or 1Pcs 12025
On the bottom: 3 Pcs 9025(9225) or 2 Pcs 12025
(Note: 9025(9225) fan is recommended, because the installation of 12025 fan is easily affected by the motherboard and hardware wires)
5.Support hard disk: 1*3.5-inch hard disk and 3*2.5-inch solid state hard disk on the bottom
Or 1*3.5-inch and 1*2.5-inch hard disk and 1*12025 fan
Or 3*2.5-inch hard disks and 2*12025 fans at the same time
Or 2*2.5-inch hard disks and 3*9025 fan
6. CPU height limit: 136mm



Package Including:
1* C2 Computer Case
1* Switch Wire
1* Screw Accessories Kit
