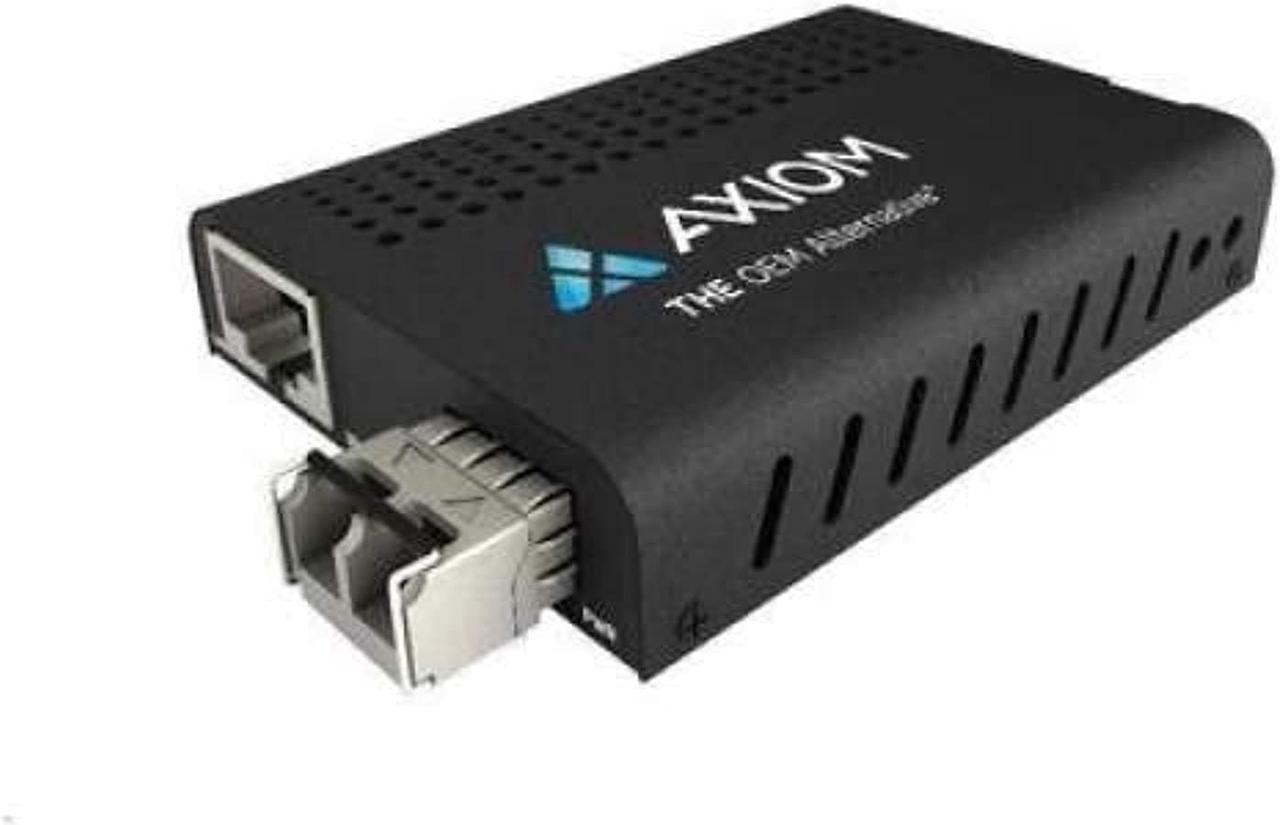

AXIOM RJ45 TO 1000BASE-SX LC MEDIA CONV

Features The Axiom Mini 10/100/1000Base-TX to 100/1000Base-FX Media Converter Series is a Gigabit Ethernet stand-alone Mini unmanaged media converter that provides cost effective, entry-level media conversion between Copper RJ45 10/100/1000Base-TX ports and 100/1000Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network. Unit and Port LEDs allow for quick status information Auto-Negotiation Full-Duplex or Half-Duplex Operation Modes Auto-MDI/MDIX Automatic Link Restoration Connect to legacy network equipment Eliminate Collision Domains 10/100/1000Base-TX UTP to 1000Base-FX Fiber media convertion Supports IEEE 802.3U IEEE 802.3 z 1000Base-TX/FX protocols, IEEE 802.3 ab standards Available with Open SFP Port or optional built in LC/SC/ST Connections DIP switch to set different configurations Compact package size Supports IEEE 802.3 x flow control; 100Base-FX interface; auto MDI-MDIX function; LFP function
Product Type: Transceiver/Media Converter Maximum
Distance Supported: 1.24 Mile
Power Source: DC
Product Type: Transceiver/Media Converter
Manufacturer Part Number: MC03-M3L2-AX Maximum
Distance Supported: 1.24 Mile
Power Source: DC
Limited Warranty: 1 Year
Network Technology: 10/100/1000Base-TX
Network Technology: 1000Base-SX
Manufacturer: Axiom
Memory Solutions Product Name: Transceiver/Media Converter
Network Technology: 10/100/1000Base-TX
Network Technology: 1000Base-SX
Brand Name: Axiom
Brand Name: Axiom
Ethernet Technology: Gigabit Ethernet Number of
Network (RJ-45) Ports: 1
Network (RJ-45): Yes Number of
LC Ports: 1
Media Type Supported: Twisted Pair
Media Type Supported: Optical
Fiber Fiber Mode Supported: Multi-mode Total Number of
Ports: 2 LC Port
