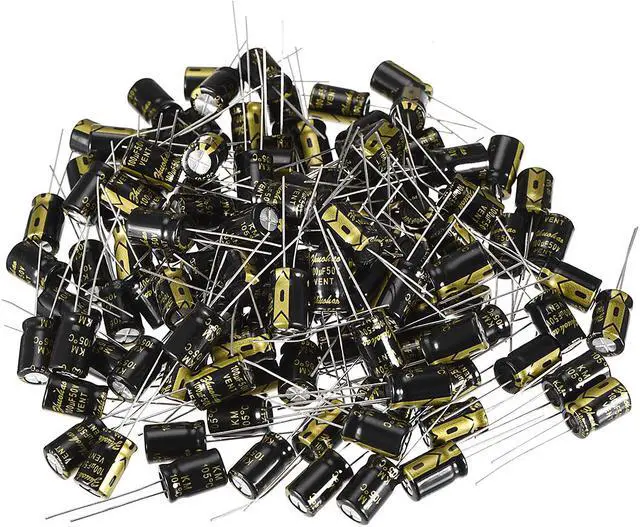

Aluminum Radial Electrolytic Capacitor 100uF 50V Life 8 x 12 mm Black 120pcs
- Rated Voltage: 50V ; Capacitance: 100uF; Capacitance Tolerance: ±20%(120Hz,+20 Celsius);Max Ripple Current at 105 Celsius 120Hz: 229mA; Standard Load Life: 2000hrs
- Body Si
+
+
Overview
Specs
Reviews
Features:
Standard General Purpose.
Radial lead, aluminum electrolytic capacitor.
The longer lead is positive electrode and the shorter one is negative electrode.
Notice:
1.
Capacitance: Don't change the capacitance.
2.
Voltage: You can go higher, but don't go lower.
3.
Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing.
Product Name: Aluminum Electrolytic Capacitor
Type: Radial Lead
Feature: For Standard
Category Temperature Range: -40 ~ + 105 Celsius( 6.3 ~100V)
Rated Voltage: 50V;
Capacitance: 100uF;
Capacitance Tolerance: ±20%(120Hz, +20 Celsius);
Max Ripple Current at 105 Celsius 120Hz: 229mA;
Standard Load Life: 2000hrs

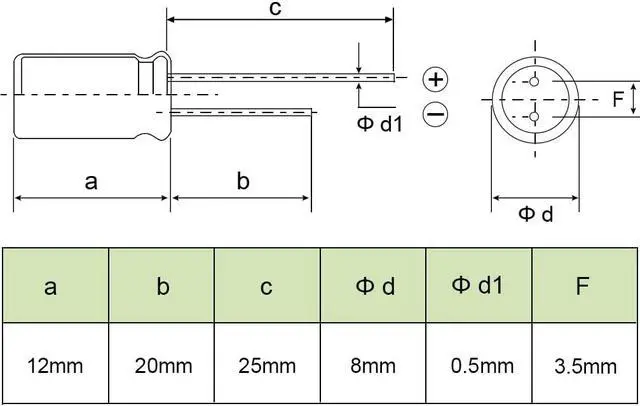

Body Size: 8 x 12mm/ 0.31" x 0.47" (D*L);
Lead Length: 25mm/ 0.98", 20mm/ 0.79";
Lead Pitch: 3.5 mm/ 0.14"
Lead Diameter: 0.5 mm

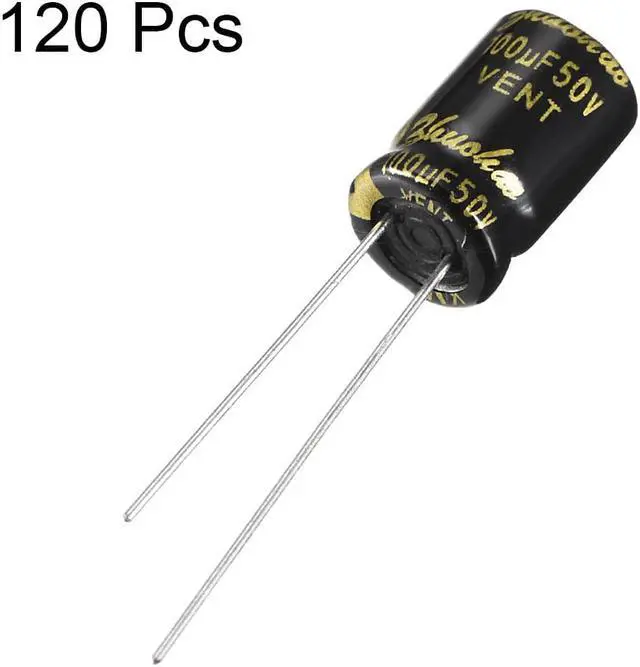

Size: 120pcs 100UF 50V 8x12mm
Package Content: 120(+/-2%) x Electrolytic Capacitors
Standard General Purpose.
Radial lead, aluminum electrolytic capacitor.
The longer lead is positive electrode and the shorter one is negative electrode.
Notice:
1.
Capacitance: Don't change the capacitance.
2.
Voltage: You can go higher, but don't go lower.
3.
Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing.
Product Name: Aluminum Electrolytic Capacitor
Type: Radial Lead
Feature: For Standard
Category Temperature Range: -40 ~ + 105 Celsius( 6.3 ~100V)
Rated Voltage: 50V;
Capacitance: 100uF;
Capacitance Tolerance: ±20%(120Hz, +20 Celsius);
Max Ripple Current at 105 Celsius 120Hz: 229mA;
Standard Load Life: 2000hrs
Body Size: 8 x 12mm/ 0.31" x 0.47" (D*L);
Lead Length: 25mm/ 0.98", 20mm/ 0.79";
Lead Pitch: 3.5 mm/ 0.14"
Lead Diameter: 0.5 mm
Size: 120pcs 100UF 50V 8x12mm
Package Content: 120(+/-2%) x Electrolytic Capacitors
