Video Capture Card with Loop Out, Video Capture with Audio, 4K HDMI Game Capture USB 2.0 Record Capture Card Device for Live Streaming Broadcasting, Video Conference, Gaming for PS3/4, Switch, DSLR

Video Capture Card with Loop Out, Video Capture with Audio, 4K HDMI Game Capture USB 2.0 Record Capture Card Device for Live Streaming Broadcasting, Video Conference, Gaming for PS3/4, Switch, DSLR



4K Full HD USB 2.0 High Speed Upgraded Version:The Video Capture Card with Loop supports Input & Output max resolution 3840x2160@60Hz; It also can be Backward compatible with 1080P. USB2.0 Super High-Speed transmission, no delay, no freeze, giving you a smooth visual experience * Tips: Please connect with standard 4k HDMI Cable that can be achieved 3840x2160@60Hz display.

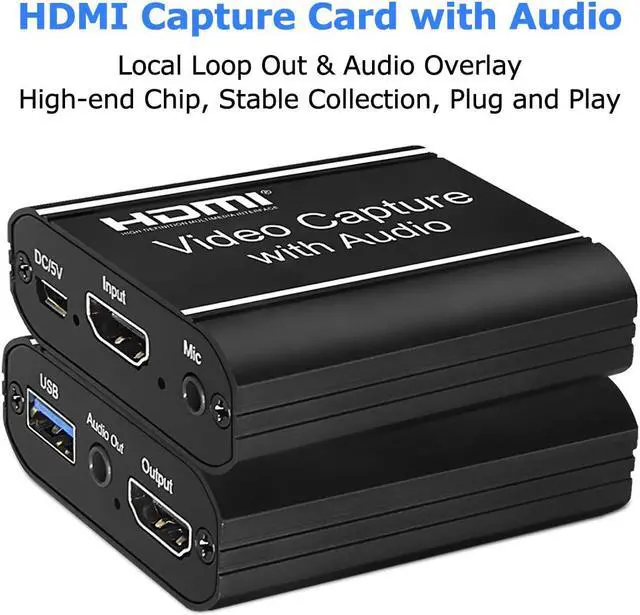

No Latency with HDMI Loopout:This loop out capture card is suitable for devices with HDMI output, such as PS4, Wii U and Switch. It has a HDMI output port, can support local loop-out live video, and capture & store to the computer. so you can capture video via this USB2.0 capture when you watch the video or play game on a HDMI monitor.

Plug & Play:This is the Plug and Play Capture Card, easy to use. No driver or external power supply required, compact and portable. Just connect your HDMI devices to your PC or Mac for recording easily. High definition reproduction of video delicate colors, vivid picture. *Support Mic-in and Audio Output; Record HDMI signal source directly, No HDMI splitter needed anymore.

Screen Sharing for Meeting:The capture card is also a fast & economical way to share content in conference rooms and online meetings. No software required, Simply connect a laptop or tablet via HDMI to start sharing. *Capture Card can also capture HDMI video and HDMI audio, and send audio and video signals to computers and smartphones for preview and storage.

Compatibility & Applicability:USB 2.0 HDMI Video Capture Card compatible with Windows and MacOS system; works with most acquisition software, such as VLC, OBS, Amcap etc. *It widely used for high definition acquisition, teaching recording, medical imaging, meeting, facebook portal tv recorder etc.



Product description

Advantages

1.Universal Compatibility. Support most acquisition software, Support Windows and MacOS system.

2.Support HDMI loop out without delay. Stable Capture; Smooth video and audio.

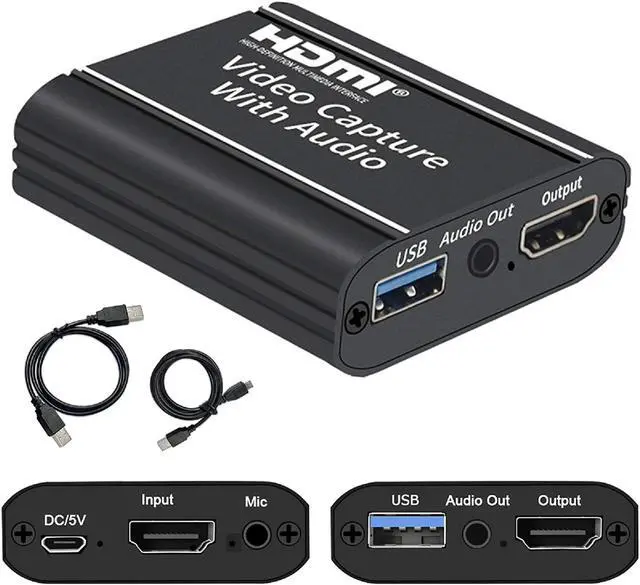

3.Support Mic-in and Audio Output.

4.4K Full HD USB 2.0 High Speed Transmission. It supports Input and Output max resolution 4K @60Hz.

5.The capture card can realize screen sharing, fast, convenient & economical.

6.No External Power Supply Required, Compact and Portable; Easy to Use and Carry.

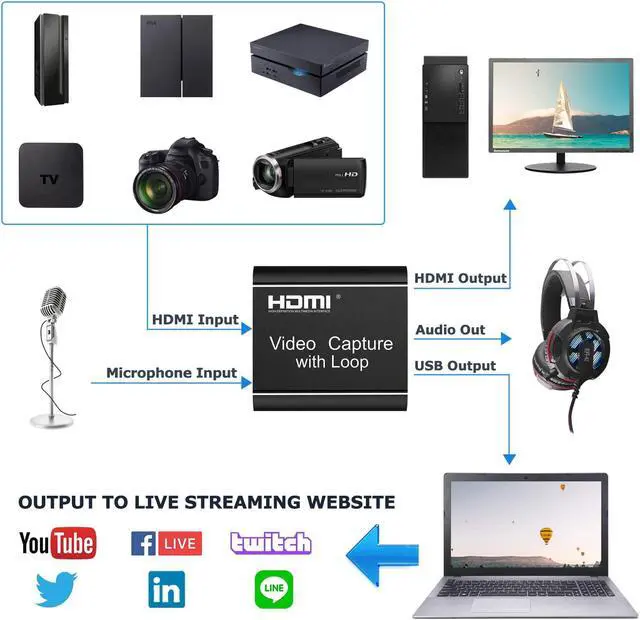

Connection and Operation

1. Connect the signal source and the HDMI input port of the USB acquisition card with one HDMI line.

2. Plug the USB male of the USB acquisition card into the USB port of the computer

3. Operation steps for USB video capture(OBS): Open the software ?Choose sources of “Video capture Device” ?Set the size of image ?Choose “Studio Mode”(double window) ?Choose “Start Recording”.



Features

*Support HDMI loop out.

*Support input & output max resolution 4K;

*Support 8/10/12bit deep color;

*Support AWG26 HDMI standard cable: input up to 15 meters, (1080P and below resolution);

*Conform to USB Video and UVC standard; Conform to USB Audio UAC standard.

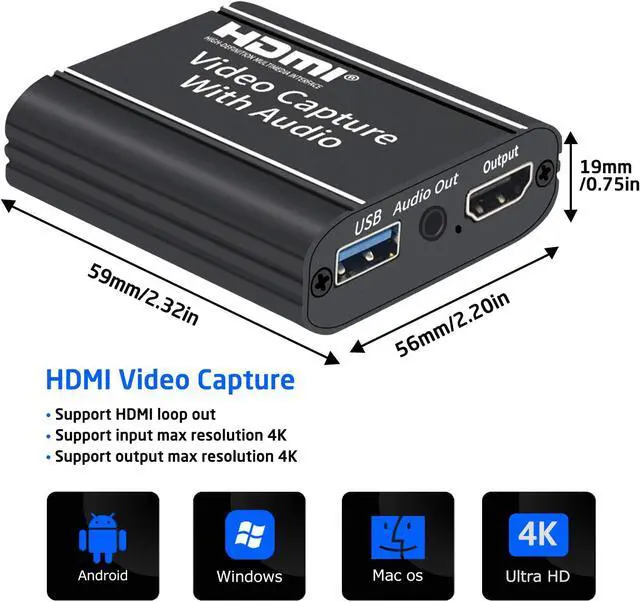

*Dimension (L x W x H): 59x56x19 (mm) / 2.32x2.2x0.75 (in)



Note

Computer hardware configuration requirements

CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above

Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above

Run memory: 4G RAM
