Note
1. Audio output when both HDMI and 3.5 mm Audio ports are connected
When the iPad is connected to the product first, the audio will be output from the last connection port.
When the device is connected to the product first and then to the iPad Pro, the audio will be output from the 3.5 mm audio.
2. Please connect a 38W or above wall charger to the USB-C Power Delivery input port to provide high-speed pass-through charging to your laptop. (8W is dedicated to the functioning of this product, max 92W will be passed to the host).
3. The USB port is mainly for data transfer. It is not recommended to charge the cell phone or connect USB devices with a high load via the USB-A port
4. Please take off your iPad Pro case before using it.
5. When two USB ports output more than 1A, please connect a PD adapter to supply enough power.
USB-C Female Port
Max 100W power delivery charging & 5Gbps data transfer and 7.5W (5V/ 1.5A ) downstream charging.

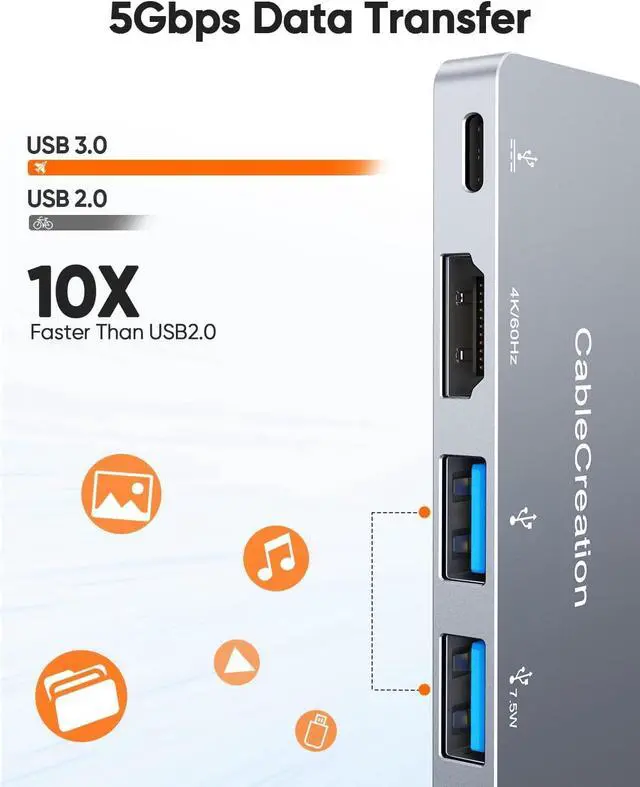

USB 3.0 Female Port
iPad USB adapter data transmission up to 5Gbps
USB-A port supports max 7.5W (5V/ 1.5A ) device charging,
USB-A share max 9W (5V/ 1.8A ) of power.
HDMI Port
To output max 4K@60Hz
iPad Pro HDMI adapter to 4K 60Hz your host must support DP 1.4. Please use an HDMI 2.0 or up cable.
(If your host supports DP 1.2, output max 4K 30Hz)
3.5 mm Audio Port
Support microphone and headphone
usb c hub with audio port, enjoy High Quality audio with 3.5 mm audio jack.
ipad pro usb c hub
Idear for iPad Pro USB C Adapter

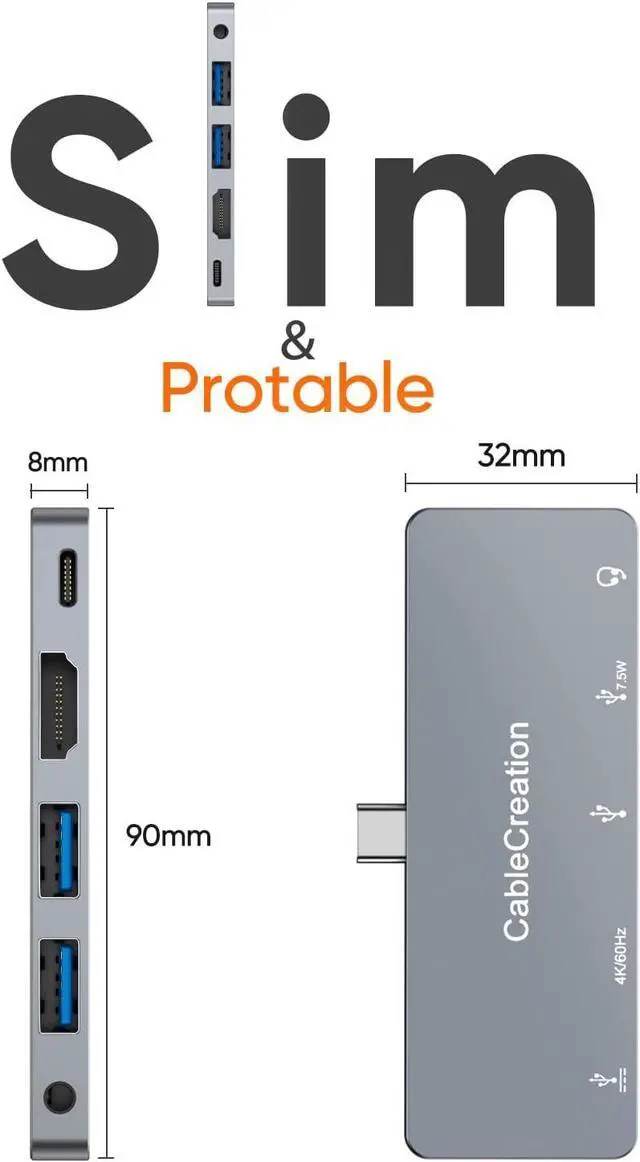

Portable Size, Convenient to Carry Around
Plug & Play
iPad Pro 12.9 accessories/ iPad Pro 11 inch accessories
Double-sided sleek design
Designed with the same minimalist style and aluminum exterior as the iPad Pro.
iPad dock with a black mirrored surface made of acrylic and a gray aluminum case can easily dissipate heat.
CableCreation 5-in-1 iPad Pro Hub

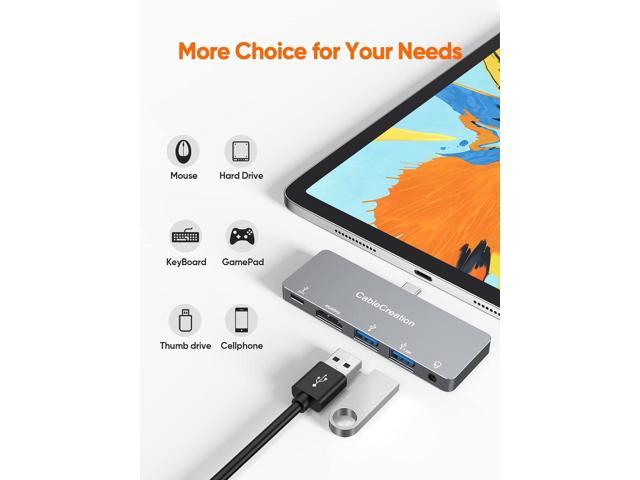

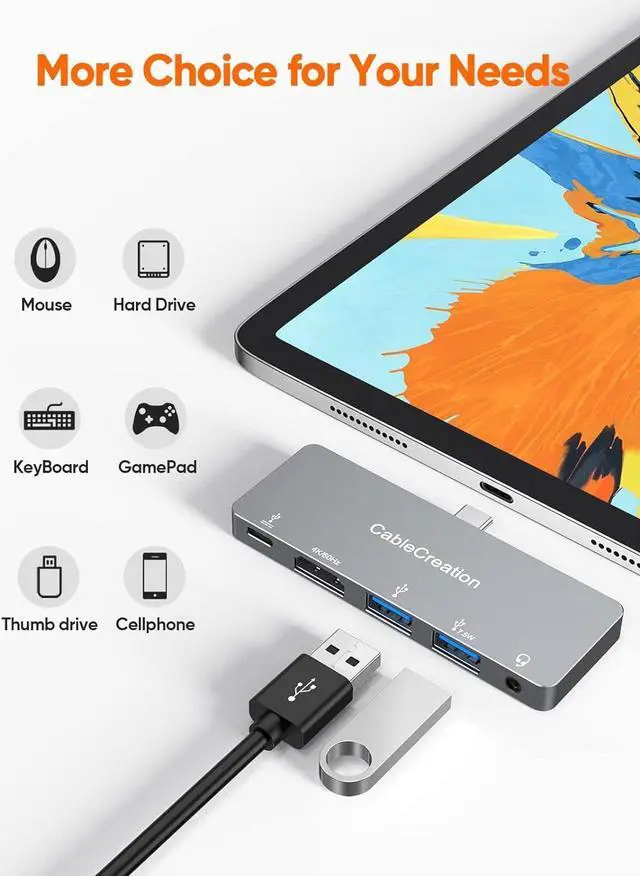

More Choice for your iPad Pro (11 / 12.9 ), The USB C to 4K HDMI adapter is especially designed for iPad Pro. You can connect more devices like external monitor, mouse, keyboard, Hard Drive, 3.5 mm audio cable, USB-C power adapter to iPad at the same time.

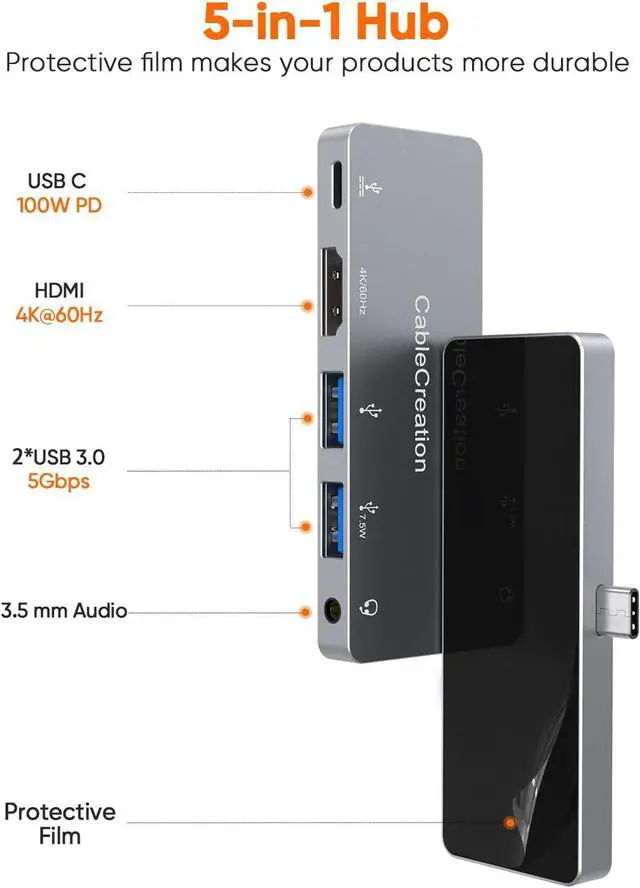

All the Ports You Need:
HDMI: max 4K@60Hz and HDR output
2* USB 3.0: 5Gbps high speed data transfer, and supports 7.5W device charging
3.5 mm audio: headphone & microphone

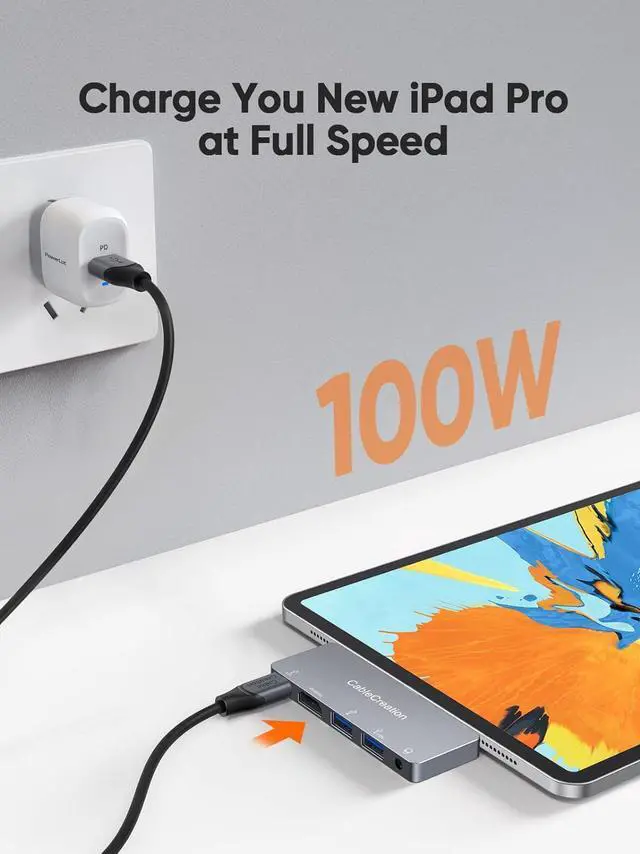

USB-C female port:
When connecting USB-C power adapter - 100W PD charging
When connecting Type-C device - max 5Gbps data and 7.5W charging
