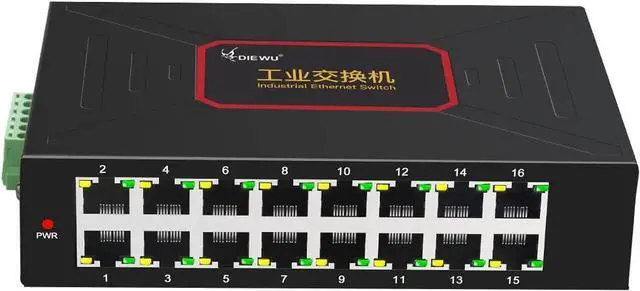

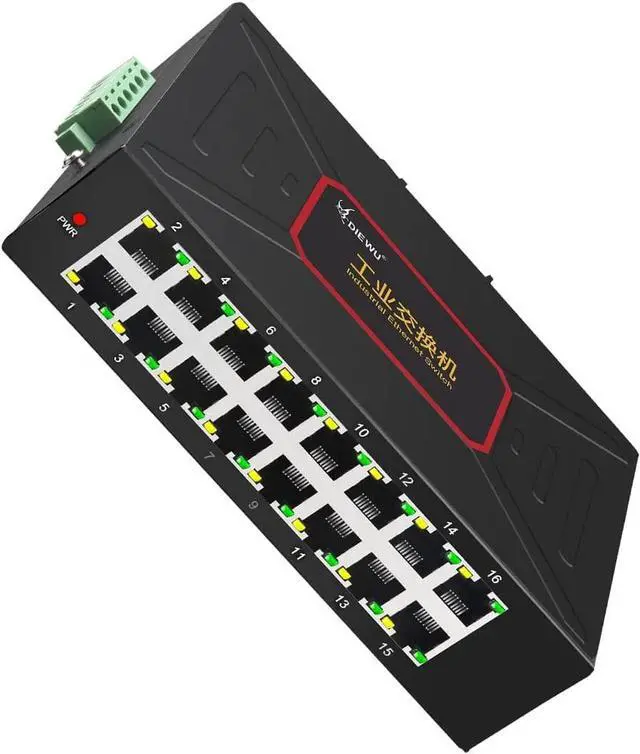

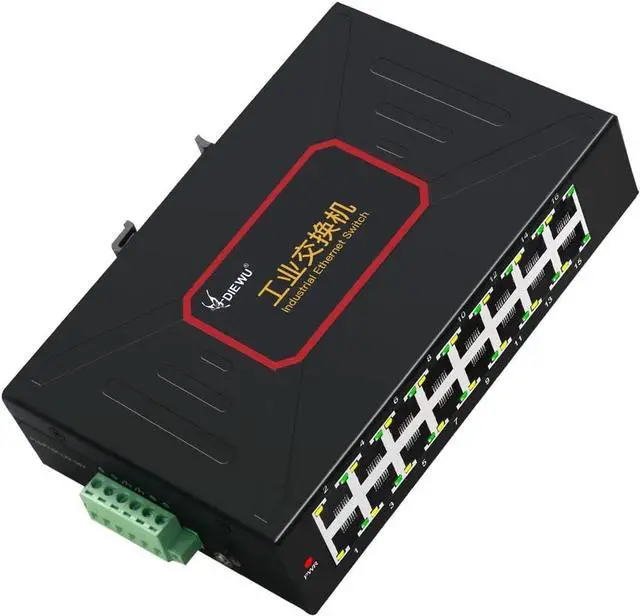

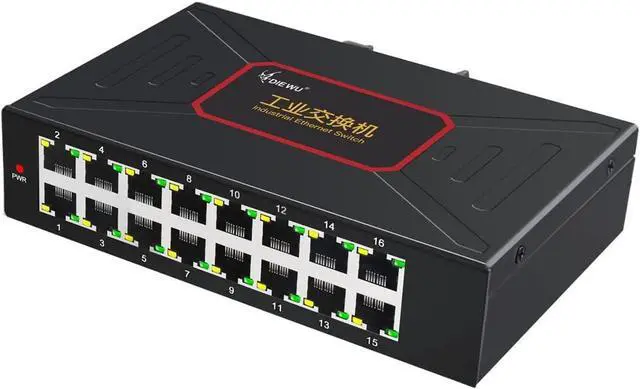

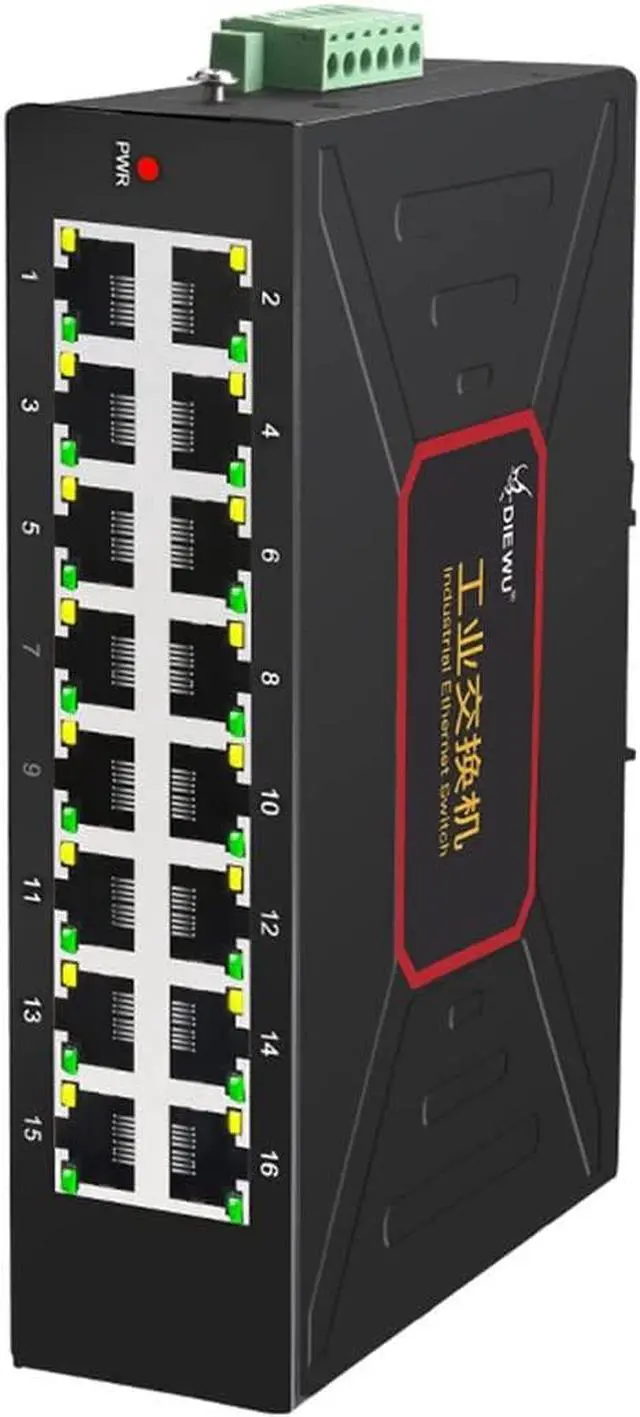

diewu 16 Ports Industrial-Grad Ethernet Switches DC12~58V 10/100Mbps DIN Rail Type RJ45 Network Switch Support
- 16 Ports 10 / 100mb Ethernet Layer 2 Smart Switch, Store Forward, Share Memory, Port basedNon blocking Architecture.
+
+
Overview
Specs
Reviews

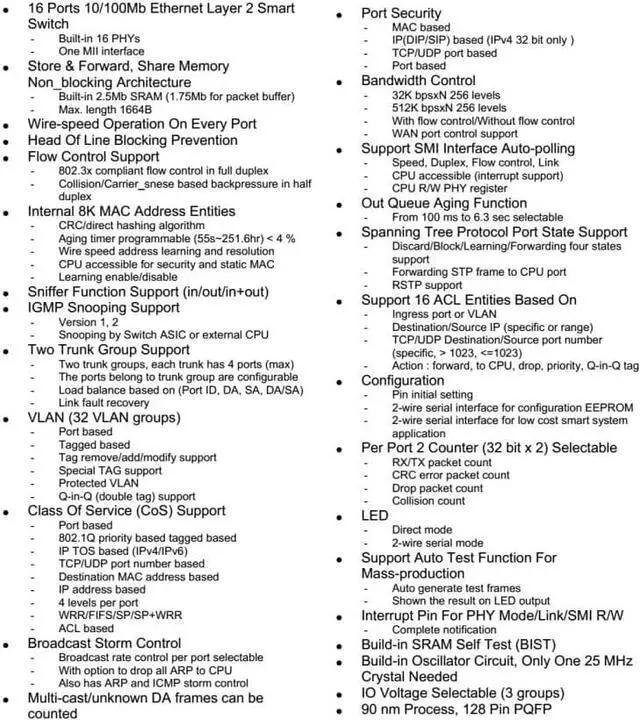

16 Ports 10 / 100mb Ethernet Layer 2 Smart Switch, Store Forward, Share Memory, Port basedNon blocking Architecture.
Network media: 10Base-T,cat3 or above UTP,100Base-Tx,cat5 UTP. Forwarding rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps. Power Input: DC12V-58V. Power Consumption: Max 6W.
lBuild-in SRAM Self Test(BIST), Build-in Oscillator Circuit, Only One 25 MHZ Crystal Needed, IO Voltage Selectable(3 groups).
Flow Control Support, Sniffer Function Support(in/out/in+out), IGMP Snooping Support, Two Trunk Group Support, Class Of Service(Cos)Support.
Support SMI Interface Auto-polling, Support 16 ACL Entities Based On, Support Auto Test Function For Mass-production.
Network media: 10Base-T,cat3 or above UTP,100Base-Tx,cat5 UTP. Forwarding rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps. Power Input: DC12V-58V. Power Consumption: Max 6W.
lBuild-in SRAM Self Test(BIST), Build-in Oscillator Circuit, Only One 25 MHZ Crystal Needed, IO Voltage Selectable(3 groups).
Flow Control Support, Sniffer Function Support(in/out/in+out), IGMP Snooping Support, Two Trunk Group Support, Class Of Service(Cos)Support.
Support SMI Interface Auto-polling, Support 16 ACL Entities Based On, Support Auto Test Function For Mass-production.
