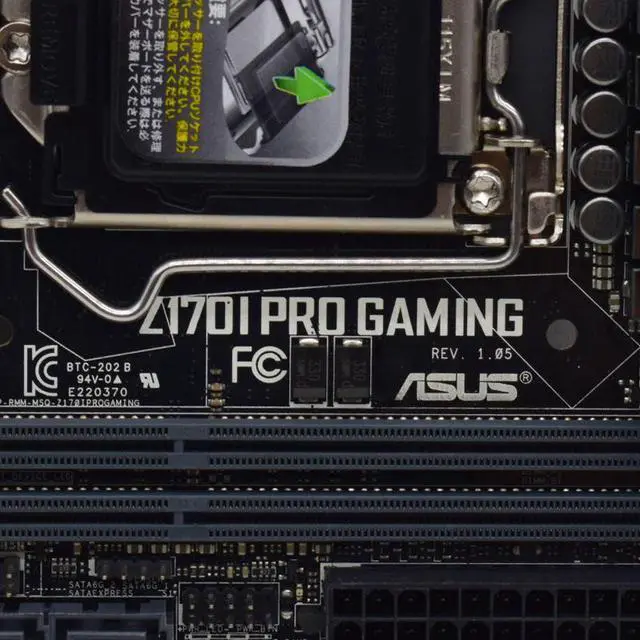

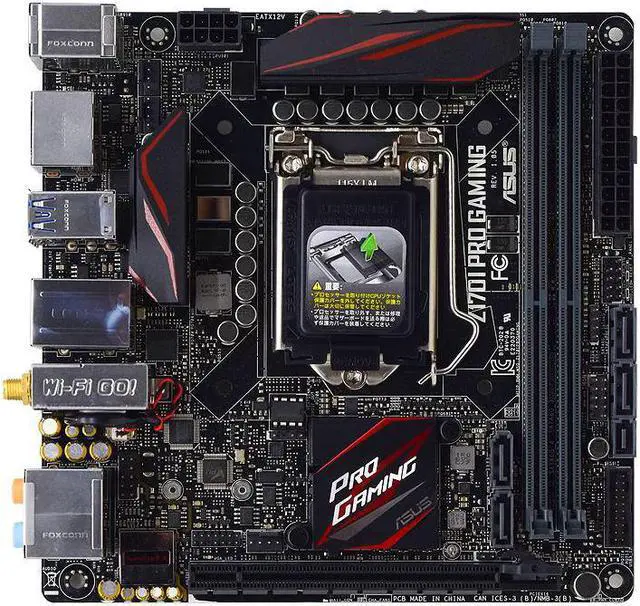

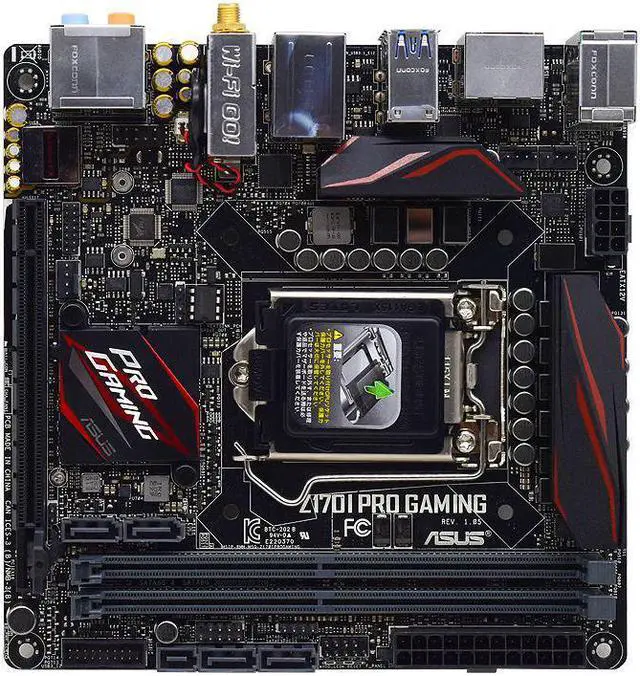

ASUS Z170I PRO GAMING Mini ITX Motherboard 1151 Z170 DDR4 32GB RAM Intel Core i7 7700K 6700 Cpus M.2 SATA3 PCI-E 3.0 HDMI USB3.1

Quality Certification:ce
Chipset:Intel Z170
Socket Type:LGA 1151
Storage Interface Type:SATA 3
Onboard LAN:1x RJ45
Package:No
Model Number:Z170I PRO GAMING
Application:Desktop
With CPU:No
Special Function:None
Maximum Ram Capacity:32 GB
Chipset Manufacturer:Intel
Back I/O Ports:4 x USB 2.0
Support Memory Type:DDR4
Usage Scenario:Gaming
Number of PCI:0
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 16:1
Memory channel:Double
Form Factor:CeB
Certification:CE
Number of M.2:1
Type 1:Mini ITX Motherboard
Type 2:Motherboard 1151
Type 3:1151 Z170
Type 4:Z170 DDR4
Type 5:DDR4 32GB RAM
Type 6:Intel Core i7
Type 7:i7 7700K

Z170I PRO GAMING Parameters
Motherboard chip
Integrated chip sound card/network card
Main chipset Intel Z170
Chipset description Using Intel Z170 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated SupremeFX 8-channel audio chip
Network card chip onboard Intel I219V Gigabit network card
Processor specifications
CPU type Sixth generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU description Support Intel 14nm processor
Memory specifications
Memory type 2×DDR4 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR4 3400 (overclocking)/3333(overclocking)/3200(overclocking)/3100(overclocking)/3000(overclocking)/2933(overclocking)/2800(overclocking)/2666(overclocking)/2600(overclocking) /2400(overclocking)/2133MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 1×PCI-E X16 graphics slot
Storage interface 1×M.2 interface, 1×SATA Express interface, 2×SATA III interface
I/O interface
USB interface 2×USB3.1 interface (backplane), 6×USB3.0 interface (2 built-in +4 backplane), 4×USB2.0 interface (2 built-in +2 backplane)
Video interface 1×Display Port interface, 1×HDMI interface
Power connector One 8-pin, one 24-pin power connector
Other interfaces
1 × RJ45 network interface, 1 × optical fiber interface, 2 × Wi-Fi antenna interface, audio interface, 1 × PS/2 keyboard and mouse universal interface
Plate type
Motherboard board type Mini-ITX board type
Dimensions 17.0×17.0cm
