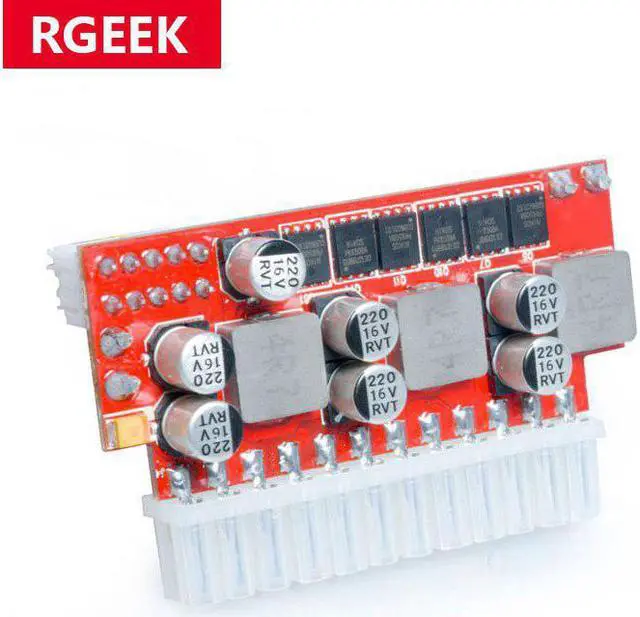

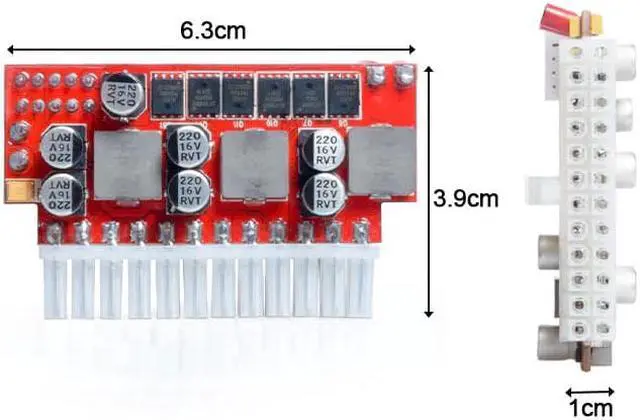

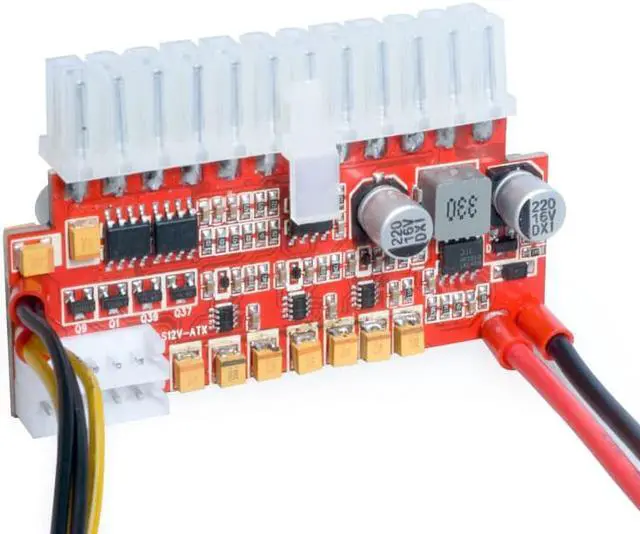

RGEEK 200W NAS PSU 4 bay 6 bay Hard Drive HDD Power Supply

80 PLUS Certification:Other Certification
Certification:None
Origin:CN(Origin)
Rating Power:150W - 250W
D-type Bus Number:2
Output:+3.30V, +5.00VSB, +5.00V, +12.00V, -12.00V
Model Number:RGEEK-200P6H
Package:Yes
Application:Server
Graphics Card 12V Pin Number:0
Input Voltage:12V DC
Interface Type:24Pin
PFC Type:Active
CPU Power Connector:4 pin
Modular:Full Modular
Number of SATA Ports:4
DC input connector:2.5mm inner diameters, 5.5mm outer diameter

Electrical Specifications of RGEEK-200P6H
High light:
200 Watt Output 12 Volt DC Input
Fanless design, 100% silent
24 pin ATX connector, Plugs directly into the ATX connector
Solid Polymer Caps on the PCBA, Long life.
Perfect DC PSU for mini ITX Motherboards

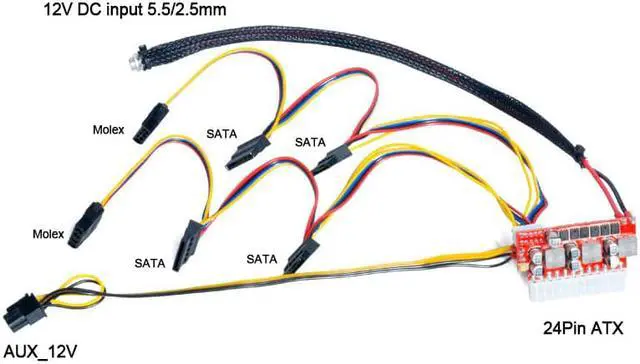

Power Cables included
Specifications:
Input voltage: +12V/DC(11.4-12.6V)
DC input: 2.5mm inner diameters, 5.5mm outer diameter
Input Current: Max. 21A
Output Power: 200W
Power Efficiency: > = 85%
Working temperature/humidity: 15? to 35? / 45%-75%
Reposition temperature//humidity: -40? to +70?/ 10%-90%
Atmospheric pressure: 86Kpa—106Kpa
Applications:
MINI computers, one computer, POS, digital set-top boxes, ITX chassis, network servers, advertising, banking terminals, etc.
Package includes:
1 x DC-ATX 200W Module (with cable)
