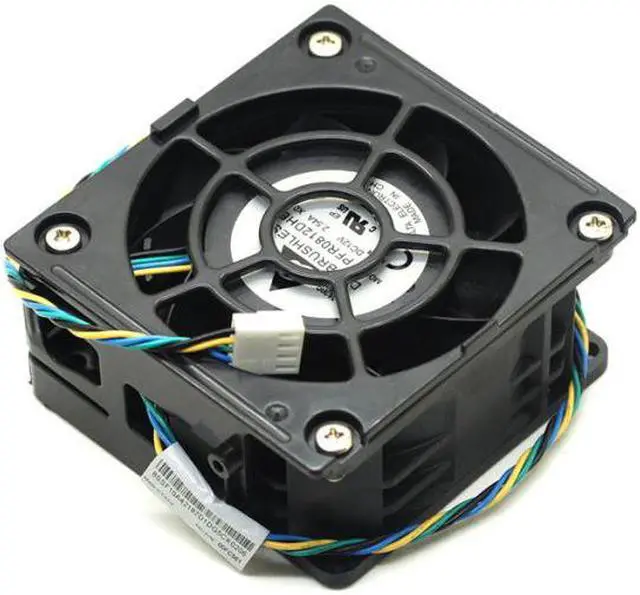

8038 powerful fan 8cm 80mm For Delta PFR0812DHE Server Cooling Fan DC 12V 2.54A 80x80x38mm 4-wire pwm cooler

Certification:CE
Origin:CN(Origin)
Application:Computer Case
Package:Yes
Compatible CPU:yes
Bearing:Two Ball Bearing
Fan Life:50000 hrs
Lines:4 Lines
Type:Fan
Power Interface:4pin
Heatsink Material:Plastic

Model: pfr0812dhe
Size: 80 × 80 × 38mm;
Voltage: DC12V;
Function: 4-wire support PWM speed regulation
Current: 2.54a (label current)
Plug: Standard 4P plug line of main board is about 40cm long
Speed: 9500rpm
Wind speed: 14m / S
Air volume: 165cfm;
Power: 39.6w;
Noise: 52dB
Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Rotation direction of fan: anticlockwise from the direction of fan blade;
Operating temperature: - 10 ° C to + 70 ° C;
Storage temperature: - 40 to + 70 ;
Bearing: high precision ball bearing;
Source range: plus or minus 15% of rated power supply;
Insulation resistance: more than 500 megohm;
Withstand voltage: sink leakage current 0.5mA 500V / 1 minute;
Working life: 10.0000 hours at 25 ° C ambient temperature
