CSR Type-C Bluetooth 5.0 Audio Transmittier APTX HD/LL USB-C Stereo Multipoint Connect Wireless Adapter For Switch/Lite

Interface:USB
Certification:CE
Wireless Type:bluetooth
Content:AUDIO
Origin:CN(Origin)
High Definition Support:None
Sound Track:Double
WIFI Standard:None
Support AAC:Yes
Model Number:VAORLO-B35
Support Apt-x:Yes
Support Memory Card:No
Package:Yes
Feature:None
Feature1:The appearance of the product is exquisite.
Feature2:Adopt CSR high-end chip design.
Feature3:Support TX dual stream.
Feature4:Suppor Multipoint Connect.
Feature5:Can connect two Bluetooth headsets at the same time.
Feature6:A and B button design,
Feature7:Support the host cover and the protective shell can also be used
Feature8:Support SBC, apt-X LL, apt-X, apt-X HD
Feature9:Corresponding to display audio code light.
Feature10:without any cumbersome driving and downloading APP;

Specifications:
*Device name: wireless audio transmitter
*Input interface: TYPE-C/USB A (transfer cable)
*Connection distance:> 8M (no obstruction)
*Working frequency: 2.402GHZ-2.480GHZ
*Support protocol: aptX HD, aptX LL, aptX, SBC, A2DP, AVRCP,
AFH, HFP, HSP
*Power supply mode: console TYPE-C interface power supply

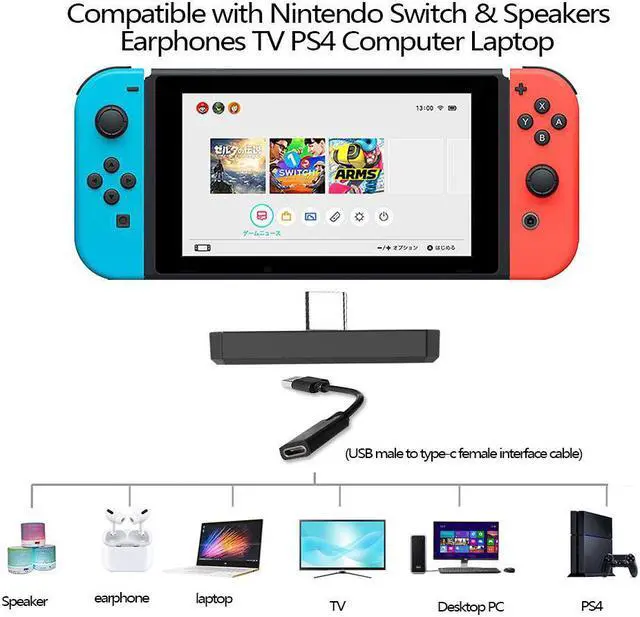

*Compatibility: Support Switch and PC audio transmission, support PS4, Switch,
PC use, support Switch dock mode.
*Support Connect two Bluetooth headsets at the same time.
Packing list:
1*VAORLO-B35 wireless audio transmitter
1*TYPE-C/USB A Conversion Cable
1*Product manual
Functional Operation:
A. Turn on the Bluetooth headset and set it to pairing mode.
B. Insert the device to the SWITCH host, long press the A or B button for 2S,
The transmitter enters the pairing state (corresponding to the A, B status indicators, quickly
Flashing)
C. After the pairing is successful, the corresponding A or B status indicator is always on.
Multipoint Mode Operation (Connect two Bluetooth headsets at the same time):
A. Refer to the above operation to connect to the first Bluetooth device.
B. Turn on the second Bluetooth headset and set it to pairing mode.
C. Long press the A or B button for 2S, the transmitter enters the pairing state (corresponding
A, B status indicator, flashing quickly)
D. After the pairing is successful, the corresponding A or B status indicator light is always on.
Fault diagnosis:
When you encounter the following problems, you can try the following methods to solve them.
Still having problems? Please contact the dealer, do not start the repair by yourself, so as not to cause
unnecessary trouble!
1) The transmitter cannot be turned on normally. Is the transmitter properly plugged in and in poor contact?
Please reinsert the transmitter and try again.
2) There is a delay in the sound of the equipment in use? This device supports aptX LL function, please
Check if your Bluetooth device has low latency function? Only transmitter
Sound transmission can be realized only when it supports low-latency function at the same time as the Bluetooth device
The low latency.
3) Can't search for Bluetooth device (Bluetooth headset or speaker)? Please check you
Is your Bluetooth device in pairing state?
You can restart the transmitter or try to reconnect the Bluetooth device.
4) The connection status of the device can be judged by the A and B status indicators.
5) There are intermittent and zing sounds during use? You can restart the launch
Try to reconnect the device.
Note: Please do not place the device on metal objects, and it cannot be blocked. hair
When the transmitter signal is interfered or blocked, the sound may also be interrupted/Caton phenomenon.
