LGA1150 Pin H81 4Th Generation I5 I7 Dual Network Port 6OOM Desktop Computer ITX Industrial Control Motherboard

Bundle:Motherboards
Quality Certification:NONE
Chipset:Intel X99
Socket Type:LGA 1366
Storage Interface Type:U.2
Item Condition:
Onboard LAN:1x RJ45
Package:Yes
Model Number:as discribed
Application:Desktop
With CPU:Yes
Special Function:NONE
Maximum Ram Capacity:16 GB
Chipset Manufacturer:Intel
Back I/O Ports:1x RJ45
Support Memory Type:DDR4
Usage Scenario:Audio & Video
Number of PCI:3
PCI - E standards:PCI - E 4.0
Origin:CN(Origin)
Certification:NONE
CPU:Support LGA1150 interface Inte 4th i3i5i7 Celeron Pent ium series CPU
CPU package:LGA1150
BIOS:UEFI BIOS

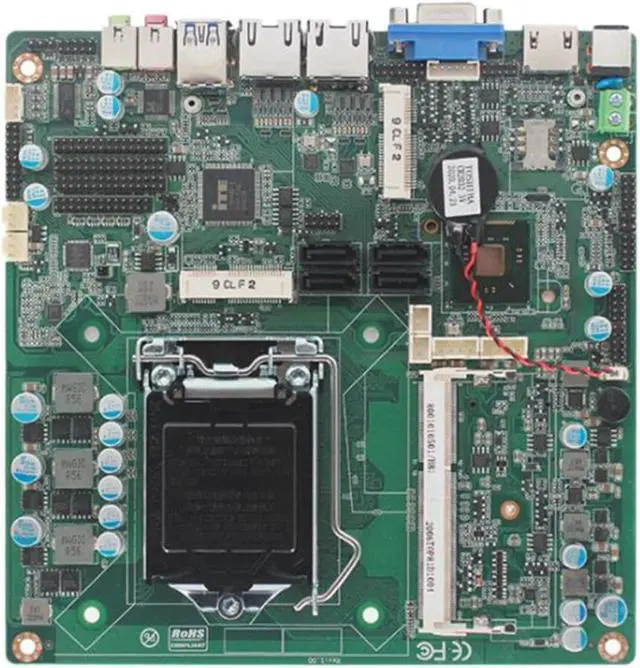

LGA1150 Pin H81 4Th Generation I5 I7 Dual Network Port 6OOM Desktop Computer ITX Industrial Control Motherboard
High performance itx all-in-one motherboard 2 * gigabit network card / support lga1150 interface / 1 * pcie16x / 6 * COM interface
Dual Gigabit network cards, 2 rtl8111h gigabit network cards, RJ45 interface; When the I / O interface is 4 USB, there is only 1 network card
Three screen same display and different display LVDS / EDP + VGA + HDMI synchronous or asynchronous display (H81 chip does not support three display) HDMI supports the maximum resolution 4096@2304 @30hzvga supports a maximum resolution of 2048 x one thousand five hundred and thirty-six
For H81 chipset on SATA interface, there are two standard sataii interfaces with a maximum transmission rate of 3gb / s, one SATA III interface is sata1, and the maximum transmission rate is 6gbs. For B85 chipset, there are four SATA interfaces with a maximum transmission rate of 6gbs

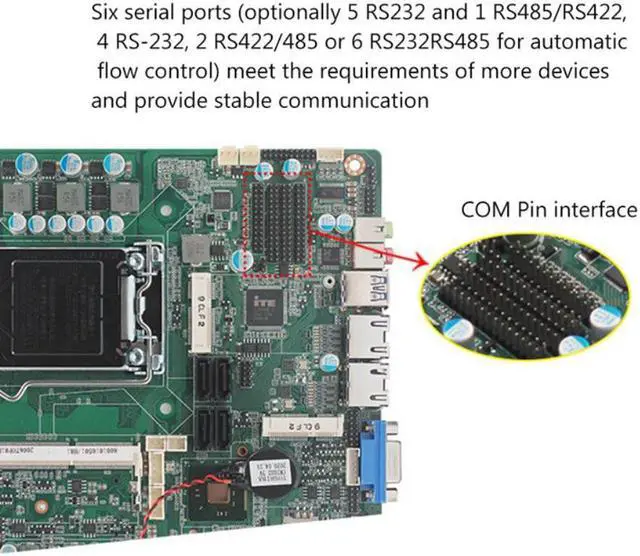

COM interface 6 serial ports (5 RS232 and 1 RS485 / RS422, 4 RS-232, 2 RS422 / 485 or 6 RS232, RS485 supports automatic flow control) to meet more equipment requirements and ensure stable communication
CPU: Support LGA1150 interface Inte 4th i3/i5/i7/ Celeron/ Pent ium series CPU
CPU package: LGA1150
Chipset: H81/B85 high-speed chipset
BIOS: UEFI BIOS
Technical architecture: single channel DDR3 1066/1333/1600MHz
Slot: 1*DDR3 SoDMM 204 Socket, maximum support 16 GB DDR3 memory, 1066/1333/1600MHz
Graphics controller: HD Graphics 4400 (I3-4160 graphics card); graphics card model is related to CPU
Dual LVDS and EDP: LVDs support dual-channel 24-bit output, the highest resolution 1920x1200 EDP supports a highest resolution of 3840*2160@60Hz (LVDS and EDP display can only choose one)
VGA: VGA supports the maximum resolution of 2880*1800 ((see specific CPU model) HDMI: the maximum resolution supports HDMI (1.4) 3840*2160
Dual display support: LVDS/EDP+VGA.LVDS/EDP+HDMI, HDMI+VGA synchronous or asynchronous display
Audio: Realtek HD ALC662 audio decoding (left and right channels + microphone)
Super I/O: IT8786E
Watchdog timer: 0-255 seconds, providing watchdog routines
NGFF: 1 interface (KEY E)
Colour:As shown
Material:PCB
Size:170 x 170mm
Package Contents:
1 x Motherboard
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
