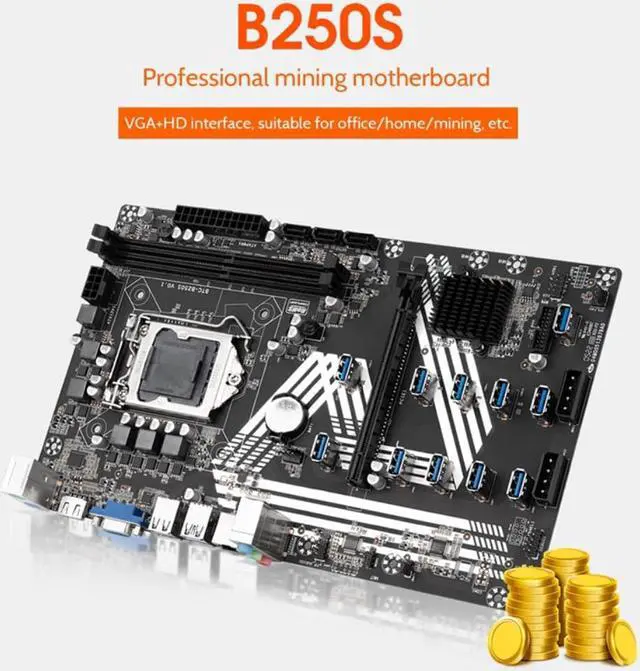

B250S Mining Motherboard+Baffle+SATA Cable+Switch Cable LGA1151 11XUSB3.0+1XPCIE 16X Slot DDR4 ETH Miner Motherboard

Quality Certification:NONE
Chipset:Intel B250
Socket Type:LGA 1151
Storage Interface Type:SATA
Onboard LAN:1x RJ45
Package:Yes
Model Number:B250
Application:Mining
With CPU:No
Special Function:NONE
Maximum Ram Capacity:16 GB
Chipset Manufacturer:Intel
Back I/O Ports:1x RJ45
Support Memory Type:DDR4
Usage Scenario:Mining
Number of PCI:1
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Certification:NONE
Name:B250S BTC Mining Motherboard
Type:B250 Mining Motherboard
Memory:Support 2DDR4 desktop 213324002666MHz memory slots
Sound Card:Onboard 1Realtek ALC662 sound card chip

B250S Mining Motherboard+Baffle+SATA Cable+Switch Cable LGA1151 11XUSB3.0+1XPCIE 16X Slot DDR4 ETH Miner Motherboard
Support for Core /Pentium® /Celeron® LGA1151 series 6/7/8 generation processors (9th generation CPUs are not supported)
Support 3*SATA3.0 hard disk interface, onboard 1*Realtek ALC662 sound card chip
Support 1*PCIE 16X slot (x16 GEN3 speed)+11*USB3.0 slot (PCIEx1 GEN1.1 speed)
Support 2*DDR4 desktop 2133/2400/2666MHz memory slots (2 main slots, dual channel, does not support ECC memory)
Onboard 1*Realtek RTL8111H Gigabit LAN (supports wake on LAN and PXE boot), supports 4*USB3.0+4*USB2.0 ports
Chipset: for ® B250 Chipset
Display: Onboard nuclear display HDMI/VGA or PCIEx16 expansion independent graphics card
Memory: Support 2*DDR4 desktop 2133/2400/2666MHz memory slots (2 main slots, dual channel, does not support ECC memory)
Sound Card: Onboard 1*Realtek ALC662 sound card chip
Network card: Onboard 1*Realtek RTL8111H Gigabit network card
Storage: 3*SATA 3.0,USB:4*USB3.0+4*USB2.0,SuperIO:ITE IT8772E
Expansion slot: 1*PCIE 16X slot (x16 GEN3 speed), 11*USB3.0 slot (PCIEx1 GEN1.1 speed)
Rear I/O Interface:
2*USB2.0 ports
1*RJ45 port
1*PS2 port (support PS2 keyboard + mouse)
1*HDMI port
1*VGA port
2*USB3.0 ports
Internal interface:
1*F_AUDIO pin
1*4PIN buzzer pin
1*3PIN CLR_CMOS pin
1*F_PANEL pin
1*DEBUG pin
1*CPU_FAN pin
1*SYS_FAN pin
1*F_USB3.0 pin (extendable to 2*USB3.0 ports)
1*F_USB2.0 pin (extendable to 2*USB2.0 ports)
3*SATA3.0 interface
2*large 4PIN PCIE auxiliary power supply interface
Power supply mode: ATX 24PIN+ATX 8PIN
Colour:black
Material:PCB
Size:281.36MM x 170MM

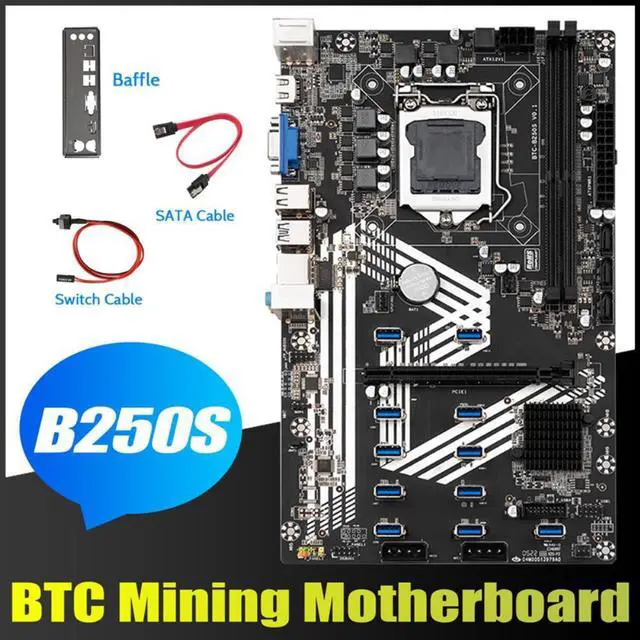

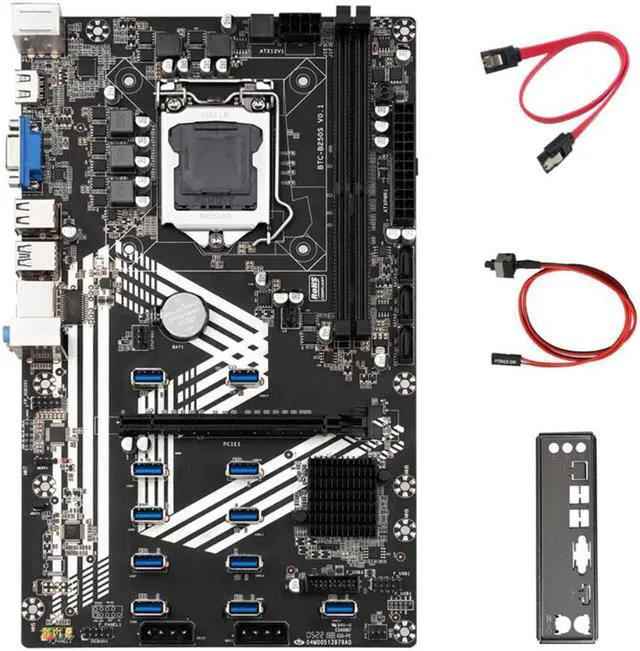

Package Contents:
1 * Motherboard
1 * Baffle(The color and appearance are random,Not accept designation)
1 * SATA Cable(The color and appearance are random,Not accept designation)
1 * Switch Cable(Random color,Not accept designation)
The appearance and color of different batches of products may be different, which does not affect the use
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
