X99 Motherboard LGA2011-3 Pin CPU 4-Channel DDR4 Memory PCIE X16 USB3.0 SATA3.0 Motherboard Supports M.2 Large Board V3

Quality Certification:NONE
Chipset:Intel X99
Socket Type:LGA 1366
Storage Interface Type:SATA
Item Condition:
Onboard LAN:1x RJ45
Package:Yes
Model Number:as discribed
Application:Mining
With CPU:Yes
Special Function:NONE
Maximum Ram Capacity:16 GB
Chipset Manufacturer:Intel
Back I/O Ports:1x RJ45
Support Memory Type:DDR4
Usage Scenario:Enthusiast & Overclocking
Number of PCI:2
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Certification:NONE
Product name:X99 motherboard
Material:PCBmetal
Chip:for intel X99 series
CPU socket:LGA 20113

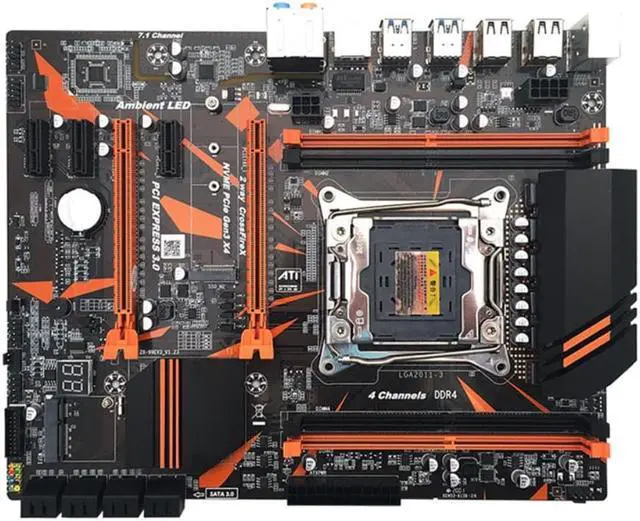

X99 Motherboard LGA2011-3 Pin CPU 4-Channel DDR4 Memory PCIE X16 USB3.0 SATA3.0 Motherboard Supports M.2 Large Board V3
1. X99 D4 luxury motherboard, LGA2011-3 CPU slot supports 4xDDR4 REG ECC or ordinary desktop memory, complete interfaces, high temperature resistance, stable power supply.
2. Rear 4 USB3.0/Gigabit network cards: Enhanced front and rear 4+2 USB3.0 interface design, high-speed connection, RTL8111F Gigabit network card, dual indicator design, stable and fast
3. Memory: DDR4 four-channel memory, support ordinary memory and ECC server memory, can not be mixed at the same time
4. Quick start, load and file transfer. Low power consumption, quiet, reliable and durable.
5. Small and portable: This product is small and light, does not take up space, and can be easily taken away.
Specification:
Chip: for X99 series
CPU type: Zhiqiang series 58 or 2011-V3 beginning with 68 69 (such as 5820K 5960K and I7 series (the upper I7 CPU cannot be used with server memory at the same time)
Memory type: DDR4 2400/2333MHz (REG ECC or ordinary desktop memory)
Memory slot: 4xDDR4 DIMM
Memory capacity: up to 4x32G
Expansion slot:
2xPCIE X16 graphics slot
3xPCI-E X1 slot
2xUSB 2.0 slot (1 group)
2xUSB3.0 interface (1 group)
8xSATA3.0 interface
1xM.2 PCIE NVME high-speed hard disk interface (full speed

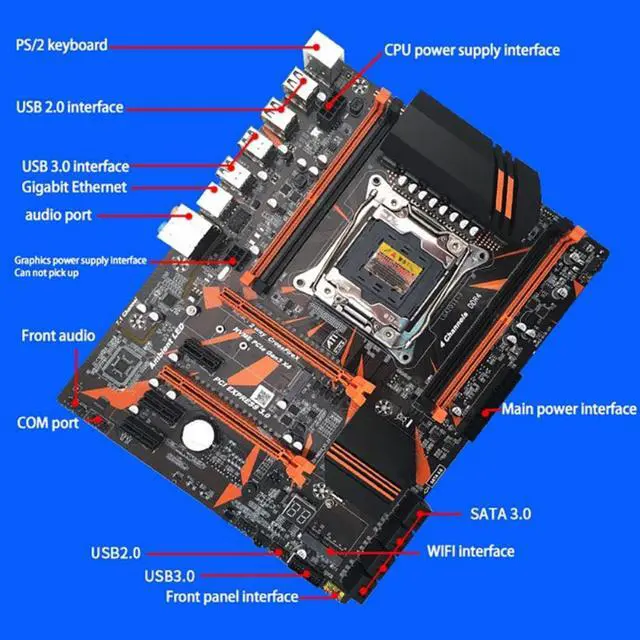

I/O interface:
PS/2 interface: PS/2 keyboard and mouse universal interface
1xRJ45 network interface
4xUSB2.0 interface
4xUSB3.0 interface
7.1 channel audio interface
Other parameters:
Power socket: an 8-pin (when only connected to the 4-pin main power supply), a 24-pin power connector
Power supply mode: 4 items
Built-in digital fault diagnosis display and buzzer
WiFi wireless network card interface, 8 LED color audio lights
size:280x220mm
Material:PCB+metal
colour:Black + Orange
Package Contents:
1 x X99 computer motherboard
1 x SATA cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
