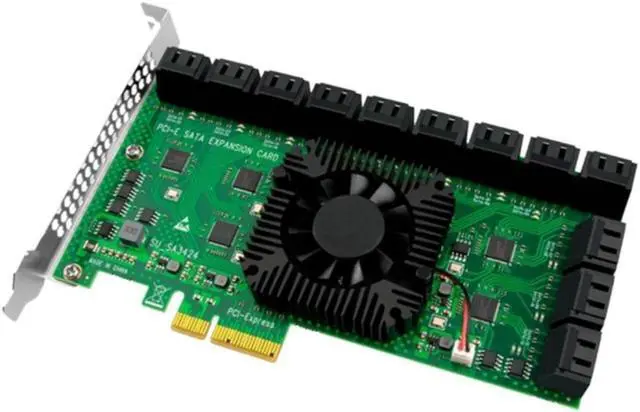

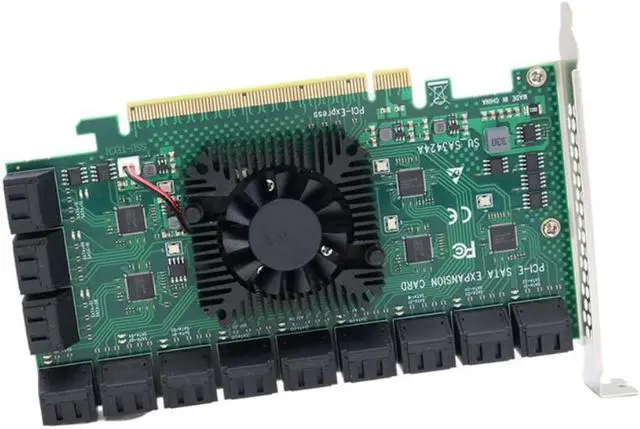

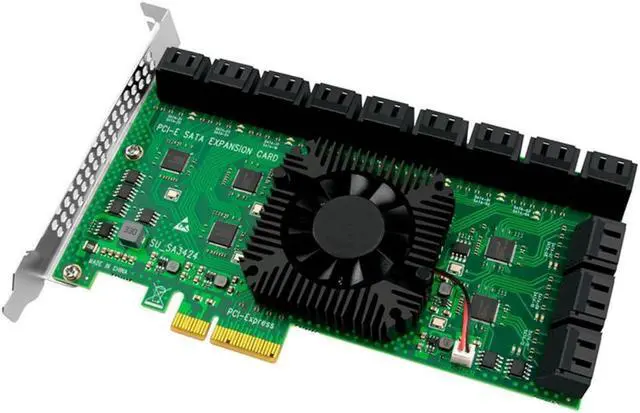

PCI-E 4X to SATA Expansion Card with 24-Port SATA3.0 6Gpbs Hard Drive Expansion Card for Mining with Cooling Fan

Certification:NONE
Origin:CN(Origin)
Bus interface:PCIExpress X4 slot
Expansion interface:24 SATA3.0 interfaces
System requirements:Available PCI Express 4X slot
Support hard disk:SATA interface hard disk
Support system:Windows Linux Ubuntu
Installation method:inline PCIE card slot

PCI-E 4X to SATA Expansion Card with 24-Port SATA3.0 6Gpbs Hard Drive Expansion Card for Mining with Cooling Fan
Product name: PCIE to 24-port SATA expansion card
Product interface: PCI-E 4X
Comply with Serial ATA 3.0 specification, backward compatible with SATA2.0 SATA1.0
Comply with PCI-Express v2.0 specification and backward compatible with PCI-Express v1.0.
Support 6.0 Gbps, 3.0 Gbps and 1.5 Gbps communication speed
Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x and Gen 3i.
Support AHCI1.0 mode and IDE mode
Support native command queue (NCQ)
Support FIS based on port multiplier switch or command switch.
Support hot swap and hot swap. Plug and play, no need to drive, self-identified 24 disks
Compatible with SATA 6G, 3G and 1.5G hard drives
Bus interface: PCI-Express X4 slot
Expansion interface: 24 SATA3.0 interfaces
System requirements: Available PCI Express 4X slot
Support hard disk: SATA interface hard disk
Support system: Windows/ Linux/ Ubuntu
Installation method: in-line PCI-E card slot
colour:As shown
Material:PCB
size:16 x 12 x 2.5CM
Package Contents:
1 x 24-port SATA expansion card
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
