X79 BTC Mining Motherboard 9 Graphics Slot 60Mm Pitch Support RTX 3060 GPU Support E5-2603 4607 V2 CPU +Switch Line

Quality Certification:NONE
Chipset:Intel X99
Socket Type:LGA 2011-3
Storage Interface Type:SATA
Onboard LAN:1x RJ45
Package:Yes
Model Number:X79
Application:Mining
With CPU:Yes
Special Function:NONE
Maximum Ram Capacity:16 GB
Chipset Manufacturer:Intel
Back I/O Ports:1x RJ45
Support Memory Type:DDR3
Usage Scenario:Mining
Number of PCI:1
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)

X79 BTC Mining Motherboard 9 Graphics Slot 60Mm Pitch Support RTX 3060 GPU Support E5-2603 4607 V2 CPU +Switch Line
Installation guidance:
E5-26xx/46xxV1 and V2 version CPUs must be used, and two CPUs of the same model must be used on a motherboard. Using server memory can reduce the cost of memory.
Display interface: Fix the third slot display (C slot) on the right under DOS; if you encounter the phenomenon that the display cannot display after entering the system, just unplug the decoy headers on all the graphics cards. Motherboard PCIE spacing 65mm.
Mainboard power supply access method: 1, 2, 3, and 6 ports output power for the graphics card, and the mainboard ports 4, 5, 7, 8, and 9 are power input; A, B, C, D, E5 graphics cards are directly powered by power. The motherboard must use 4 violent fans to dissipate heat, otherwise the high temperature of the graphics card will reduce the life span and increase instability.
The power supply is recommended to be placed on the upper side of the fan, which can reduce the length of the chassis; and the power supply line can be directly plugged into the motherboard without switching. Pay attention to the direction when installing the CPU heat sink. Reverse installation will result in high temperature of the CPU.
E5-26xx/46xx V1 and V2 CPUs (not included) must be used, and two CPUs of the same model must be used on a motherboard.

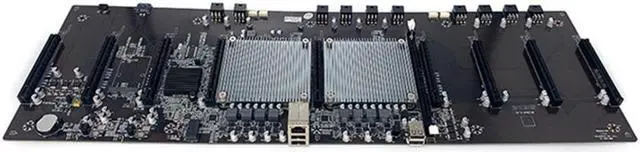

Name: Mining Motherboard
Size: 59.5x19.4CM
Support CPU type: 2011
CPU socket: 1 * LGA (2011)
USB port: 4 * USB 2.0
Network card interface: 1 * LAN
Chipset series: X79
Graphics interface: 8 * PCI Express 3.0 16X
It is recommended to use CPU:
For Xeon Processor E5-2603
For Xeon Processor E5-4603
For Xeon Processor E5-2609
For Xeon Processor E5-2603 V2
For Xeon Processor E5-4603 V2
For Xeon Processor E5-2609 V2
For Xeon Processor E5-2620
For Xeon Processor E5-2620 V2
For Xeon Processor E5-4607 V2
For Xeon Processor E5-2618L V2
Colour: black
Material: PCB+metal

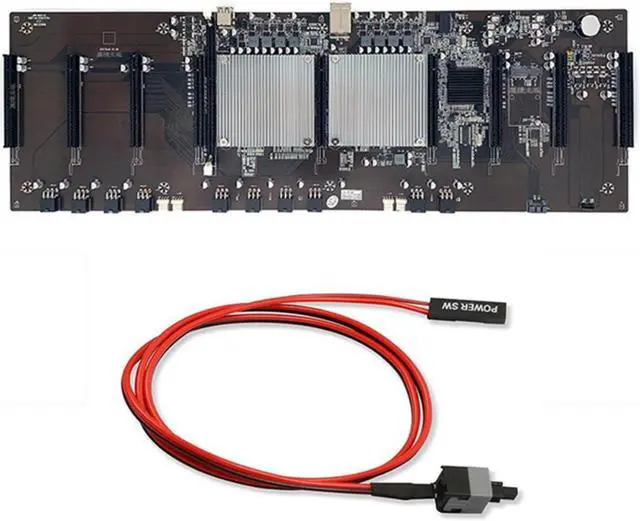

Package Contents:
1 * Main board

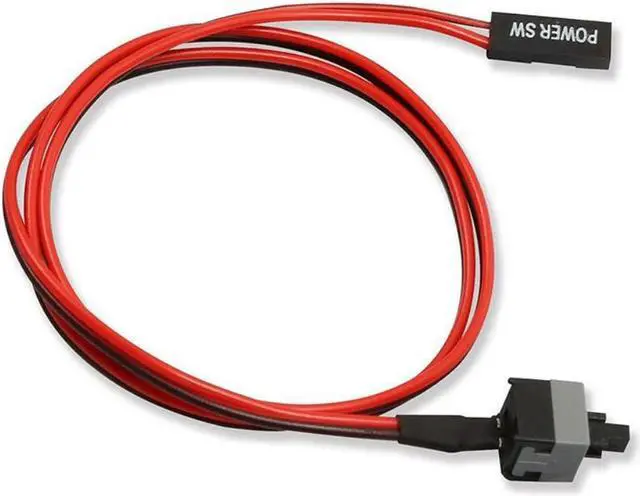

1 * Switch line
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
