B250S Mining Motherboard+G3930 CPU+Switch Cable+SATA Cable LGA1151 11XUSB3.0+1XPCIE 16X Slot DDR4 ETH Miner Motherboard

Quality Certification:NONE
Chipset:Intel B250
Socket Type:LGA 1151
Storage Interface Type:SATA
Onboard LAN:1x RJ45
Package:Yes
Model Number:B250
Application:Mining
With CPU:No
Special Function:NONE
Maximum Ram Capacity:16 GB
Chipset Manufacturer:Intel
Back I/O Ports:1x RJ45
Support Memory Type:DDR4
Usage Scenario:Mining
Number of PCI:1
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Certification:NONE
Name:B250S BTC Mining Motherboard
Type:B250 Mining Motherboard
Memory:Support 2DDR4 desktop 213324002666MHz memory slots
Sound Card:Onboard 1Realtek ALC662 sound card chip

B250S Mining Motherboard+G3930 CPU+Switch Cable+SATA Cable LGA1151 11XUSB3.0+1XPCIE 16X Slot DDR4 ETH Miner Motherboard
Support for Core /Pentium® /Celeron® LGA1151 series 6/7/8 generation processors (9th generation CPUs are not supported)
Support 3*SATA3.0 hard disk interface, onboard 1*Realtek ALC662 sound card chip
Support 1*PCIE 16X slot (x16 GEN3 speed)+11*USB3.0 slot (PCIEx1 GEN1.1 speed)
Support 2*DDR4 desktop 2133/2400/2666MHz memory slots (2 main slots, dual channel, does not support ECC memory)
Onboard 1*Realtek RTL8111H Gigabit LAN (supports wake on LAN and PXE boot), supports 4*USB3.0+4*USB2.0 ports
Processor: Support for Core /Pentium® /Celeron® LGA1151 series 6/7/8 generation processors (9th generation CPU is not supported)
Chipset: for ® B250 Chipset
Display: Onboard nuclear display HDMI/VGA or PCIEx16 expansion independent graphics card
Memory: Support 2*DDR4 desktop 2133/2400/2666MHz memory slots (2 main slots, dual channel, does not support ECC memory)
Sound Card: Onboard 1*Realtek ALC662 sound card chip
Network card: Onboard 1*Realtek RTL8111H Gigabit network card
Storage: 3*SATA 3.0,USB:4*USB3.0+4*USB2.0,SuperIO:ITE IT8772E
Expansion slot: 1*PCIE 16X slot (x16 GEN3 speed), 11*USB3.0 slot (PCIEx1 GEN1.1 speed)
Rear I/O Interface:
2*USB2.0 ports
1*RJ45 port
1*PS2 port (support PS2 keyboard + mouse)
1*HDMI port
1*VGA port
2*USB3.0 ports
Internal interface:
1*F_AUDIO pin
1*4PIN buzzer pin
1*3PIN CLR_CMOS pin
1*F_PANEL pin
1*DEBUG pin
1*CPU_FAN pin
1*SYS_FAN pin
1*F_USB3.0 pin (extendable to 2*USB3.0 ports)
1*F_USB2.0 pin (extendable to 2*USB2.0 ports)
3*SATA3.0 interface
2*large 4PIN PCIE auxiliary power supply interface
Power supply mode: ATX 24PIN+ATX 8PIN
Colour:black
Material:PCB
Size:281.36MM x 170MM

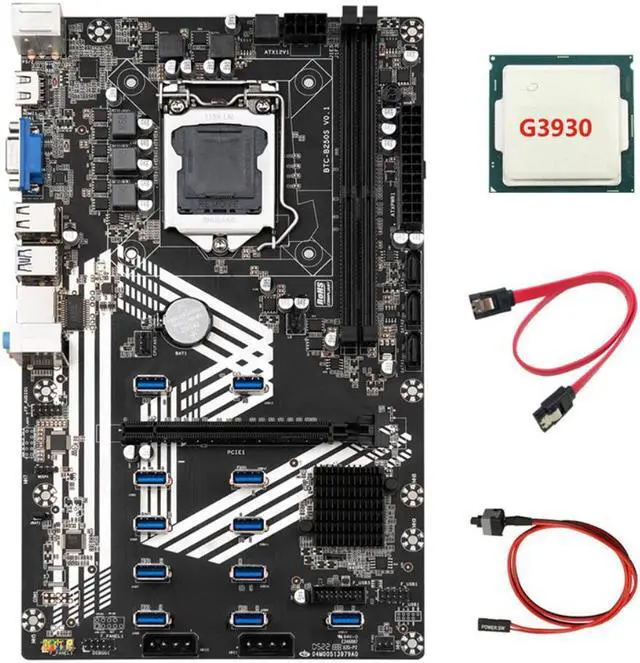

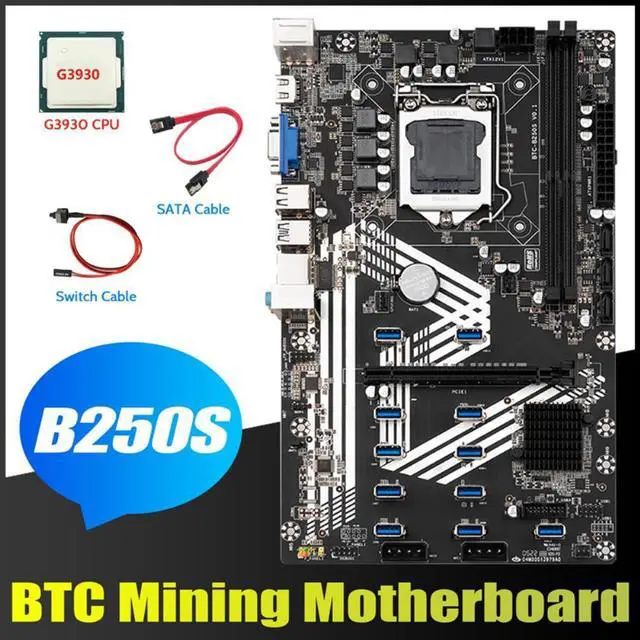

Package Contents:
1 x Motherboard
1 x G3930 CPU
1 x Switch Cable(random colors, don't accept the specified color)
1 x SATA Cable(the appearance and color are random, don't accept the specified )
The appearance and color of different batches of products may be different, which does not affect the use
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
